Product Specification
|
|
Overview
|

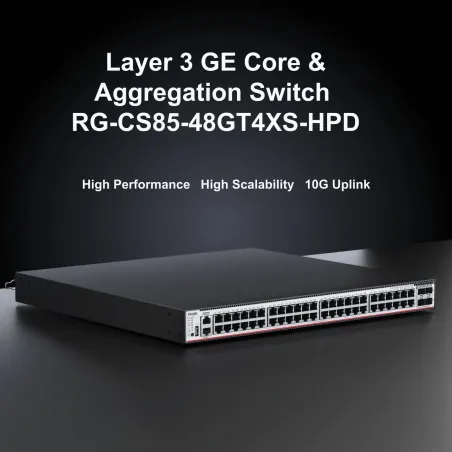

Ruijie RG-CS85-48GT4XS-HPD L3 Managed POE Switch 48-Port Gigabit, 8 Port SFP+ 10Gbps รองรับ Ruijie Cloud Managed, VSU, Hardware Redundancy, Dynamic Routing, IPv4/IPv6 dual stack
|
Hardware Specifications
|
|
Fixed service port
|
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/10GE SFP+ ports
|
|
Module slot
|
1 x expansion module slot
2 x power module slots
2 x fan module slots
|
|
Expansion module
|
CM85-4XS2CQ
|
|
Power module
|
RG-PA600I-P-F
RG-PA1000I-P-F
|
|
Fan module
|
M2SFAN I-F (pre-installed 2)
|
|
Module service port
|
CM85-4XS2CQ:
4 x 1GE/10GE SFP+ ports
2 x 40GE/100GE QSFP28 ports
|
|
Fixed management port
|
1 x RJ45 console port
1 x RJ45 MGMT port
|
|
USB
|
1 x USB 3.0 port
|
System Specifications
|
|
Packet forwarding rate
|
488 Mpps
|
|
Switching capacity
|
656 Gbps
|
|
CPU
|
Dual-core CPU, each core with the clock speed of 1.2 GHz
|
|
Real-time clock (RTC)
|
Supported
|
|
BootROM
|
16 MB (2 flash chips for 1+1 boot redundancy)
|
|
Flash Memory
|
4 GB
|
|
Memory
|
2 GB
|
|
Switch buffer
|
4 MB
|
|
MAC address table size
|
64,000
|
|
ARP table size
|
24,000
|
|
Number of IPv4 unicast routes
|
24,000
|
|
Number of IPv4 multicast routes
|
4,000
|
|
Number of IPv6 unicast routes
|
14,000
|
|
Number of IPv6 multicast routes
|
2,000
|
|
Number of ACEs
|
Ingress: 7,000
Egress:1,500
|
|
Number of VSU members
|
4 |
Dimensions and Weight
|
|
Unit dimensions
(W x D x H)
|
442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
|
|
Shipping dimensions
(W x D x H)
|
563 mm x 563 x mm 210 mm (22.17 in. x 22.17 in. x 8.27 in.)
|
|
Rack height
|
1 RU
|
|
Unit weight
|
5.7 kg (12.57 lbs)
|
Power Supply and Consumption
|
|
Power supply
|
2 x pluggable power modules
|
|
Power module redundancy
|
1+1 power redundancy
|
|
Power module hot swapping
|
Supported
|
|
Power input
|
RG-PA150IB-F (AC input):
Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 3 A
|
|
Maximum output power
|
RG-PA150IB-F: 150 W
|
|
Maximum power consumption
|
105W (excluding expansion modules)
125W (including expansion modules)
|
|
Power Supply and Consumption4
|
|
Power supply
|
2 x pluggable power modules
|
|
Power module redundancy
|
1+1 power redundancy
|
|
Power input
|
RG-PA600I-P-F (AC input):
Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 10 A
RG-PA1000I-P-F (AC input 1):
Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz
Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz
Maximum input current: 12 A
RG-PA1000I-P-F (AC input 2):
Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 8 A
|
|
Maximum output power
|
RG-PA600I-P-F: 600 W
RG-PA1000I-P-F:
100 V AC to 130 V AC: 930 W
200 V AC to 240 V AC: 1000 W
|
|
Maximum power consumption
|
120 W (without PoE)
1,600 W (full PoE load)
|
|
PoE port
|
All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
|
|
PoE power cable pairs
|
Mode A (1-2, 3-6 pairs)
|
|
PoE output power
|
Each PoE port provides up to 30 W of power, with a maximum power of 1440 W over 48 ports (30 W x 48).
The maximum power depends on the configured power supply
1 x RG-PA600I-P-F: 370 W
2 x RG-PA600I-P-F: 740 W
1 x RG-PA1000I-P-F: 740 W
2 x RG-PA1000I-P-F: 1480 W, a maximum output of 1440 W over 48 ports (30 W x 48)
Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
|
|
Energy saving
|
Supported
|
Environment and Reliability
|
|
Mean time between failure (MTBF)
|
832,000 hours (about 95 years)
|
|
Fan
|
2 x pluggable fan modules (pre-installed)
|
|
Heat dissipation
|
Fan cooling, front-to-rear airflow
|
|
Acoustic noise
|
45°C (113°F): 57.9 dB
|
Power Supply and Consumption
|
|
Power module hot swapping
|
Supported
|
|
USB hot swapping
|
Supported
|
|
Cable hot swapping
|
Supported
|
|
Power supply monitoring
|
Monitoring of power supply model and status
Power supply failure alarming
|
|
Fan monitoring
|
Fan speed adjustment: 3 levels
Fan failure alarming
|
|
Temperature monitoring
|
Temperature monitoring, over-temperature alarming
|
|
ESD
|
ESD Contact/Air Discharge: 6kV/8kV
ESD Susceptibility Contact/Air Discharge: 8 kV/15kV
|
|
Surge protection
|
MGMT port: 4 kV
Service port: 10 kV
Power port: common mode 6 kV, differential mode 6 kV
|
|
Conformal coating
|
Protects circuits against moisture, salt spray, mold, electrical shock and leakage, and so on
|
Environment and Reliability
|
|
Temperature
|
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
|
|
Humidity
|
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing)
|
|
Altitude
|
Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
|
Certifications and Regulatory Compliance
|
|
Safety regulation
|
IEC 62368-1
|
|
EMC regulation
|
EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
|
Software Specifications
|
|
Ethernet switching
|
Jumbo frame (maximum length: 9,216 bytes)
|
|
IEEE 802.1Q (supporting 4K VLANs)
|
|
Voice VLAN
|
|
Super VLAN, Private VLAN
|
|
MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN
|
|
GVRP
|
|
Basic QinQ
Flexible QinQ
|
|
STP, RSTP, and MSTP
|
|
ERPS (G.8032)
|
|
LLDP/LLDP-MED
|
|
LACP (IEEE 802.3ad)
|
|
IP service
|
ARP
|
|
DHCP client, DHCP relay, and DHCP server
|
|
DHCP snooping
|
|
DNS
|
|
DHCPv6 client and DHCPv6 relay
|
|
DHCPv6 snooping
|
|
Neighbor Discovery (ND) and ND snooping
|
|
IP routing
|
Static routing
|
|
RIP and RIPng
|
|
OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6
|
|
BGP4 and BGP4+
|
|
IPv4 and IPv6 VRF
|
|
IPv4 and IPv6 PBR
|
|
Multicast
|
IGMP v1/v2/v3, and IGMP proxy
|
|
IGMP v1/v2/v3 snooping
|
|
PIM-DM, PIM-SM, and PIM-SSM
|
|
MSDP
|
|
MLD v1/v2
|
|
MLD snooping v1/v2
|
|
PIM-SMv6 and PIM-SSM v6
|
|
MPLS
|
MPLS L3VPN
|
|
ACL and QoS
|
Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL
|
|
ACL redirection
|
|
Port traffic rate limiting
|
|
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
|
|
Congestion avoidance: tail drop, RED, and WRED
|
|
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
|
|
Security
|
Multiple AAA modes
|
|
RADIUS and TACACS+
|
|
Port-based and MAC-based 802.1x authentication
|
|
Web authentication
|
|
HTTPS
|
|
SSHv1, SSHv2
|
|
Global IP-MAC binding
|
|
Port isolation and port security
|
|
IP source guard
|
|
SAVI
|
|
CPP and NFPP
|
|
Strict and loose RPF uRPF ignoring default routes
|
|
Reliability
|
REUP, RLDP, DLDP
|
|
IPv4 VRRP v2/v3 and IPv6 VRRP
|
|
BFD
|
|
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
|
|
Hot swapping of power modules and cables
|
|
3-level fan speed adjustment Fan fault alarm
|
|
Device virtualization
|
Virtual Switching Unit (VSU)
|
|
NMS and maintenance
|
SPAN, RSPAN, and ERSPAN
|
|
sFLOW
|
|
NTP and SNTP
|
|
FTP and TFTP
|
|
SNMP v1/v2/v3
|
|
RMON (1, 2, 3, 9)
|
|
NETCONF
|
|
CWMP (TR-069) standard protocol
|
|
gRPC
|
|
Cloud and SON
|
|
PoE
|
IEEE 802.3af and 802.3at
Uninterruptible power supply upon hot start
Port priority
|
ประกัน
|
3 ปี
|
