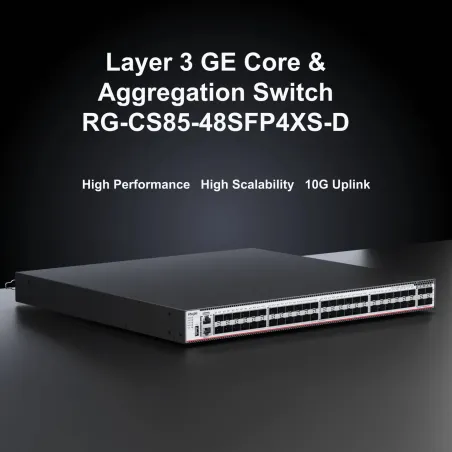

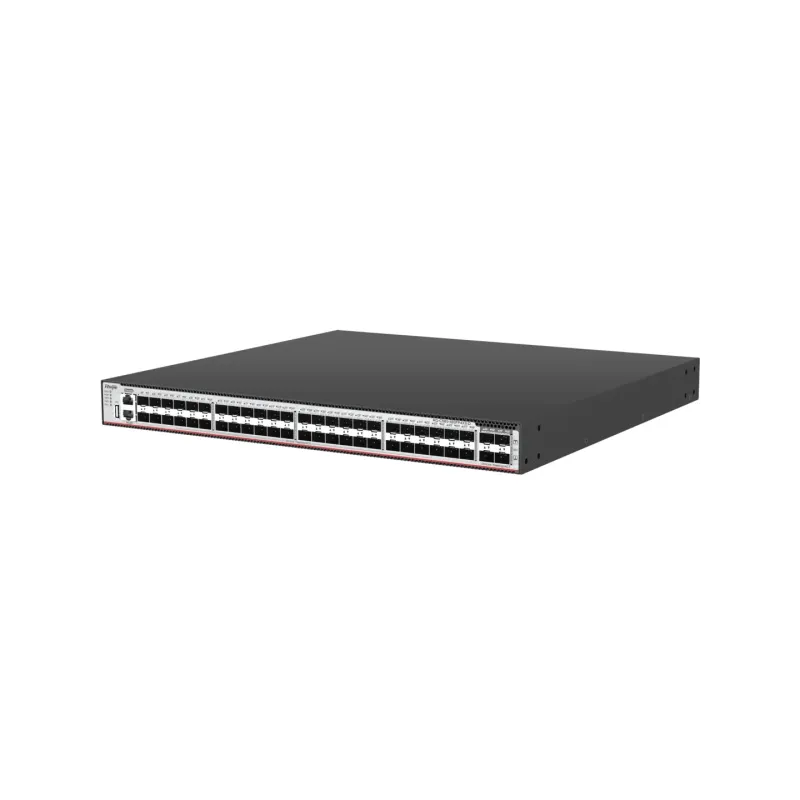

RG-CS85-48SFP4XS-D Ruijie L3-Managed Switch 48 SFP, 4 SFP+

Product Specification

Overview

Ruijie RG-CS85-48SFP4XS-D L3 Managed Switch 48-Port SFP, 4 Port SFP+ 10Gbps รองรับ Ruijie Cloud Managed, VSU, Hardware Redundancy, Dynamic Routing, IPv4/IPv6 dual stack

Hardware Specifications

Fixed service port

48 x 1GE SFP ports

4 x 1GE/10GE SFP+ ports

Module slot

1 x expansion module slot
2 x power module slots
3 x fan module slots

Expansion module

CM85-4XS2CQ

Power module

RG-PA150IB-F

Fan module

M2SFAN I-F (pre-installed 3)

Module service port

CM85-4XS2CQ:
4 x 1GE/10GE SFP+ ports
2 x 40GE/100GE QSFP28 ports

System Specifications

Packet forwarding rate

488 Mpps

Switching capacity

656 Gbps

CPU

Dual-core CPU, each core with the clock speed of 1.2 GHz

Real-time clock (RTC)

Supported

BootROM

16 MB (2 flash chips for 1+1 boot redundancy)

Flash Memory

4 GB

Memory

2 GB

Switch buffer

4 MB

MAC address table size

64,000

ARP table size

24,000

Number of IPv4 unicast routes

24,000

Number of IPv4 multicast routes

4,000

Number of IPv6 unicast routes

14,000

Number of IPv6 multicast routes

2,000

Number of ACEs

Ingress: 7,000
Egress:1,500

Number of VSU members

Dimensions and Weight

Unit dimensions

(W x D x H)

442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)

Shipping dimensions

(W x D x H)

563 mm x 563 x mm 210 mm (22.17 in. x 22.17 in. x 8.27 in.)

Rack height

1 RU

Unit weight

5.3 kg (11.68 lbs)

Power Supply and Consumption

Power supply

2 x pluggable power modules

Power module redundancy

1+1 power redundancy

Power module hot swapping

Supported

Power input

RG-PA150IB-F (AC input):
Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 3 A

Maximum output power

RG-PA150IB-F: 150 W

Maximum power consumption

70 W (excluding expansion modules)
95 W (including expansion modules)

Environment and Reliability

Mean time between failure (MTBF)

788,000 hours (about 90 years)

Fan

3 x pluggable fan modules (pre-installed)

Heat dissipation

Fan cooling, front-to-rear airflow

Acoustic noise

45°C (113°F): 56.2 dB

Power Supply and Consumption

Power module hot swapping

Supported

USB hot swapping

Supported

Cable hot swapping

Supported

Power supply monitoring

Monitoring of power supply model and status
Power supply failure alarming

Fan monitoring

Fan speed adjustment: 3 levels
Fan failure alarming

Temperature monitoring

Temperature monitoring, over-temperature alarming

ESD

ESD Contact/Air Discharge: 6kV/8kV
ESD Susceptibility Contact/Air Discharge: 8 kV/15kV

Surge protection

MGMT port: 4 kV
Service port: 10 kV
Power port: common mode 6 kV, differential mode 6 kV

Conformal coating

Protects circuits against moisture, salt spray, mold, electrical shock and leakage, and so on

Environment and Reliability

Temperature

Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity

Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing)

Altitude

Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)

Certifications and Regulatory Compliance

Safety regulation

IEC 62368-1

EMC regulation

EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Software Specifications

Ethernet switching

Jumbo frame (maximum length: 9,216 bytes)

IEEE 802.1Q (supporting 4K VLANs)

Voice VLAN

Super VLAN, Private VLAN

MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN

GVRP

Basic QinQ
Flexible QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

IP service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP routing

Static routing

RIP and RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

BGP4 and BGP4+

IPv4 and IPv6 VRF

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

MPLS

MPLS L3VPN

ACL and QoS

Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL

ACL redirection

Port traffic rate limiting

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

802.1p/DSCP/ToS traffic classification
Eight priority queues per port

Security

Multiple AAA modes

RADIUS and TACACS+

Port-based and MAC-based 802.1x authentication

Web authentication

HTTPS

SSHv1, SSHv2

Global IP-MAC binding

Port isolation and port security

IP source guard

SAVI

CPP and NFPP

Strict and loose RPF uRPF ignoring default routes

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)

Hot swapping of power modules and cables

3-level fan speed adjustment Fan fault alarm

Device virtualization

Virtual Switching Unit (VSU)

NMS and maintenance

SPAN, RSPAN, and ERSPAN

sFLOW

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

NETCONF

CWMP (TR-069) standard protocol

gRPC

Cloud and SON

PoE

IEEE 802.3af and 802.3at
Uninterruptible power supply upon hot start
Port priority

ประกัน

3 ปี
