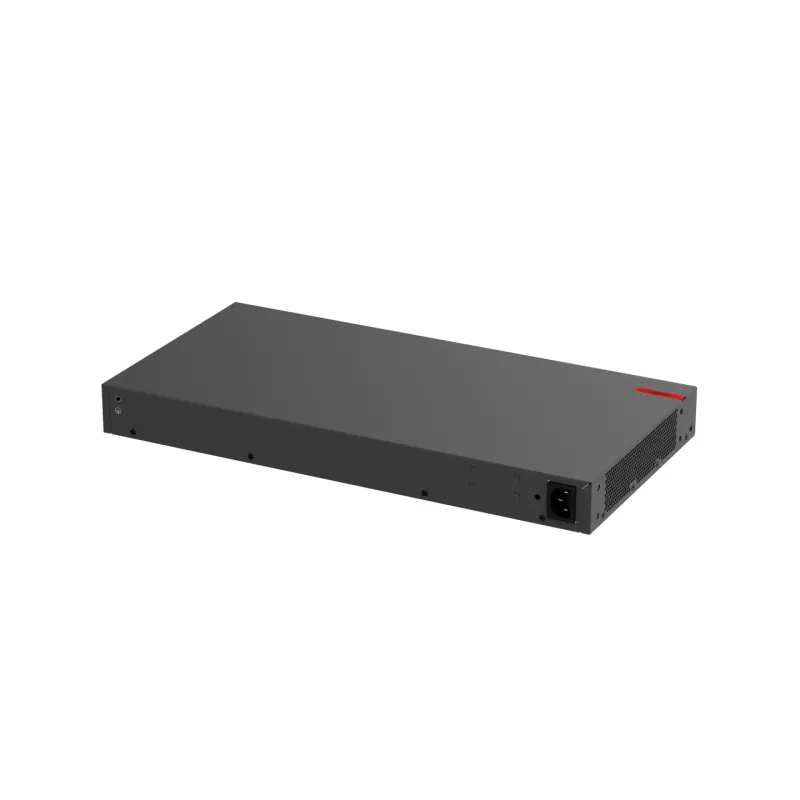

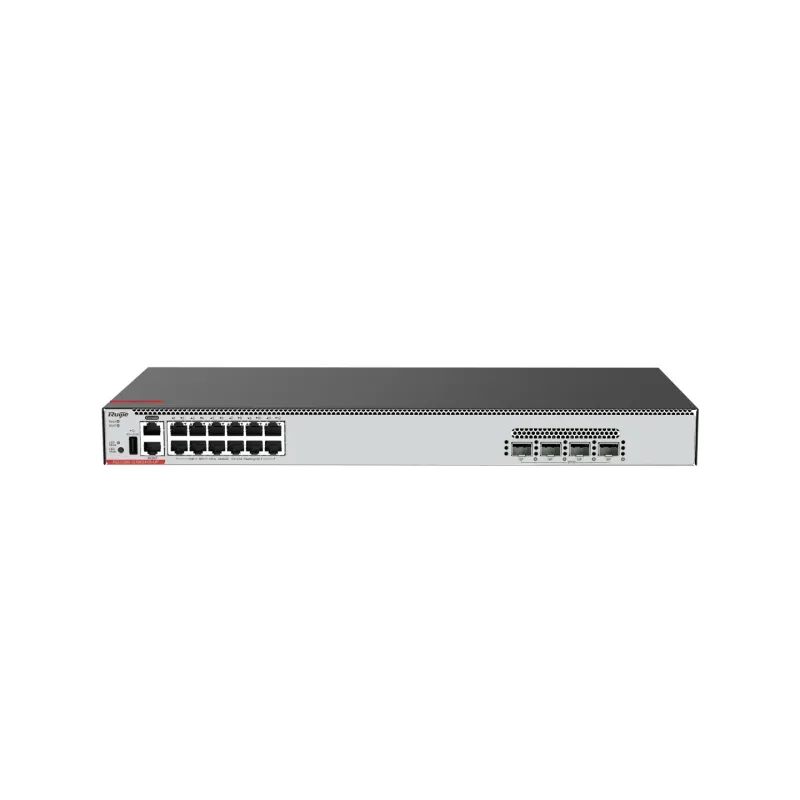

RG-CS86-12XMG4VS-UP L3-Managed POE Multi-GE Switch 12-Port, 4 Port SFP28

Product Specification

Overview

RG-CS86-12XMG4VS-UP Ruijie L3 Managed POE Multi-GE Switch 12-Port ความเร็ว 5/2.5/1Gbps, 4 Port SFP28 ความเร็ว 10/25Gbps

รองรับ Dynamic Routing OSPF, BGP
Surge protection 6kV
POE มาตรฐาน BT สูงสุด 90W/Port
รองรับการ Managed ผ่าน Ruijie Cloud

Interface Specifications

Fixed Service Port

12 x 100M/1000M/2.5GE/5GE electrical ports with auto-negotiation
4 x 10GE/25GE SFP28 ports

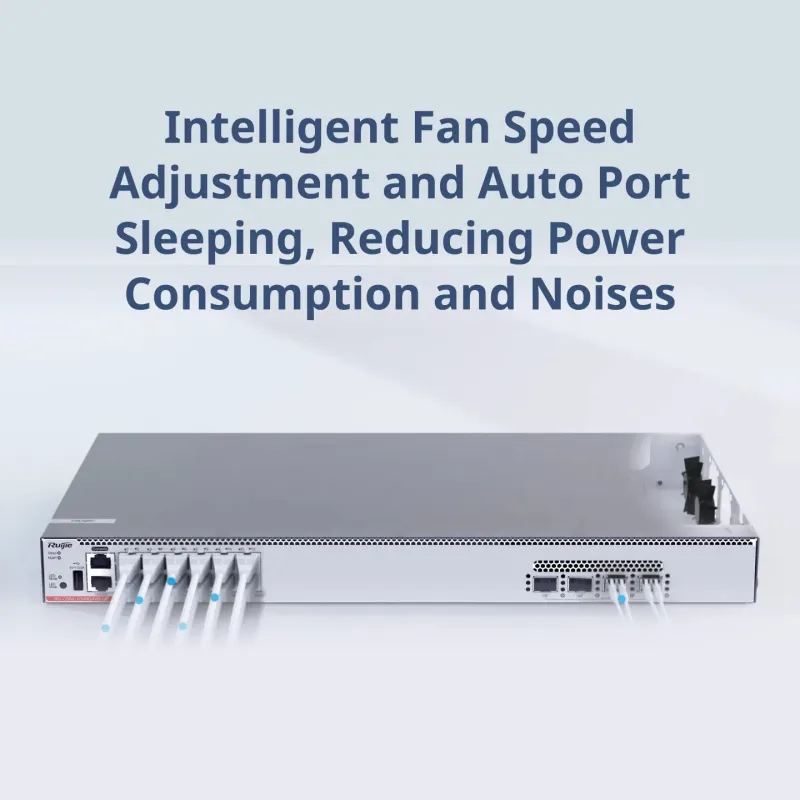

Fan modules

2 fixed fans

Power modules

-

Fixed Management Port

1 x MGMT port
1 x console port
1 x USB port

System Specifications

Switching Capacity

440 Gbps

Packet Forwarding Rate (Actual)

327 Mpps

MAC Table Capacity

32,768

ARP table

16,000

IPv4 Unicast Routes

16,000

IPv4 Multicast Routes

4,000

IPv6 Unicast Routes

16,000

IPv6 Multicast Routes

2,000

ACL entries

In: 2,500
Out:1,000

Dimensions and Weight

Dimensions (W x D x H)

442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.) , 1 RU

Weight

3.65 kg (8.82 lbs)

Power Supply and Consumption

Typical Power Consumption

Without PoE: < 110 W (Total power consumption of all modules)
Full PoE load: < 370 W (Total power consumption of all modules)

Power Module Model

Built-in power module

Rated Input Voltage

Built-in power module
AC input
Rated voltage range: 100 V AC to 240 V AC
Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50/60 Hz
Rated current per circuit: 6 A

PoE-capable Port

Environment and Reliability

Surge Protection

6 kV

Temperature Monitoring

Temperature alarm

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

10% RH to 90% RH (non-condensing)

Storage Humidity

5% RH to 95% RH (non-condensing)

Software Specifications

Ethernet Switching

Jumbo frame (maximum length: 9216 bytes)

IEEE 802.1Q (supporting 4K VLANs)

Voice VLAN

Super VLAN, Private VLAN

MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN

GVRP

Basic QinQ
Flexible QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

LACP (IEEE 802.3ad)

IP Service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client and DHCPv6 relay

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP Routing

Static routing

RIP and RIPng

OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6

BGP4 and BGP4+

IPv4 and IPv6 PBR

ECMP

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

ACL and QoS

Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL

Port traffic rate limiting

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop, RED, and WRED

802.1p/DSCP/ToS traffic classification
Eight priority queues per port

Security

Multiple AAA modes

RADIUS and TACAS+

Port-based and MAC-based 802.1x authentication

Web authentication

HTTPS

SSHv1, SSHv2

Global IP-MAC binding

IP source guard

SAVI

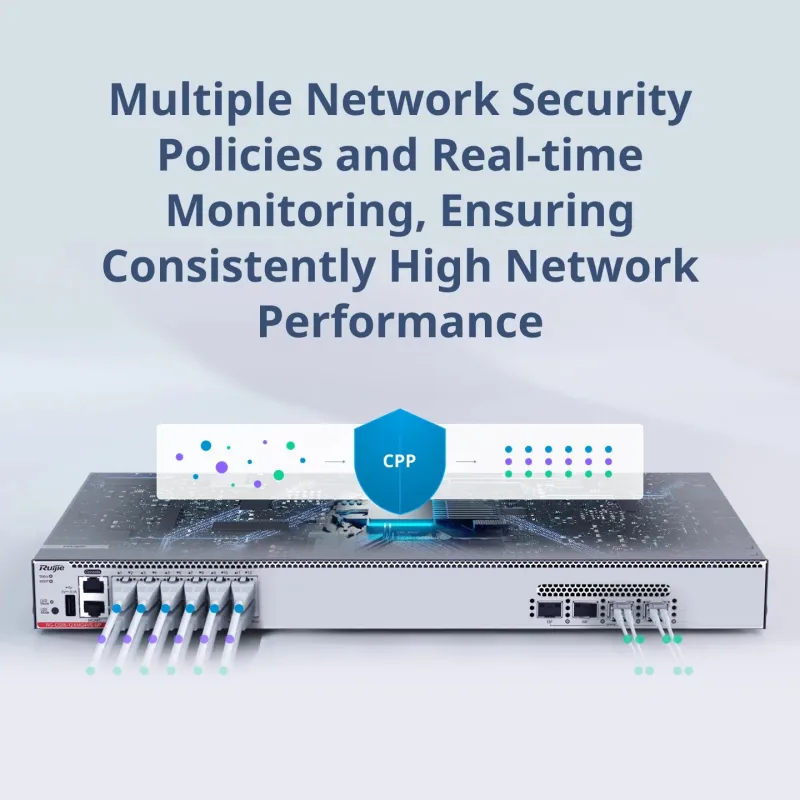

CPP and NFPP

Strict and loose RPF
uRPF ignoring default routes

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

GR for RIP, OSPF, BGP

1+1 power redundancy

Hot swapping of power and fan modules

Device virtualization

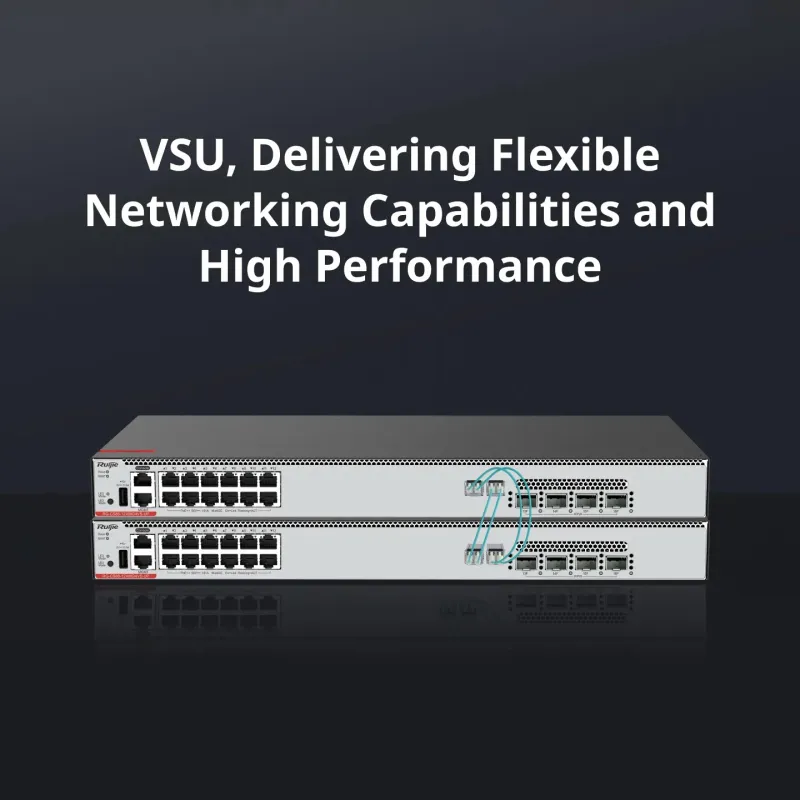

Virtual Switching Unit (VSU)

NMS and maintenance

SPAN, RSPAN, and ERSPAN

sFLOW

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

NETCONF

CWMP (TR-069) standard protocol

gRPC

Cloud and SON

PoE

IEEE 802.3af, 802.3at and 802.3bt
Uninterruptible power supply upon hot start
Port priority
