RG-S5315-24MG6XS-UP-E Product Specification |

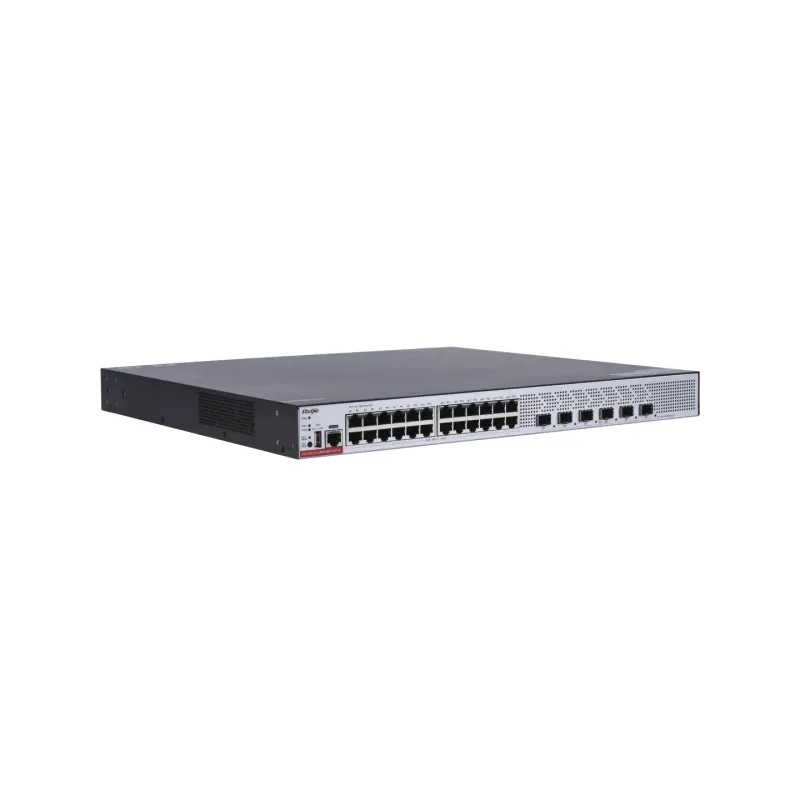

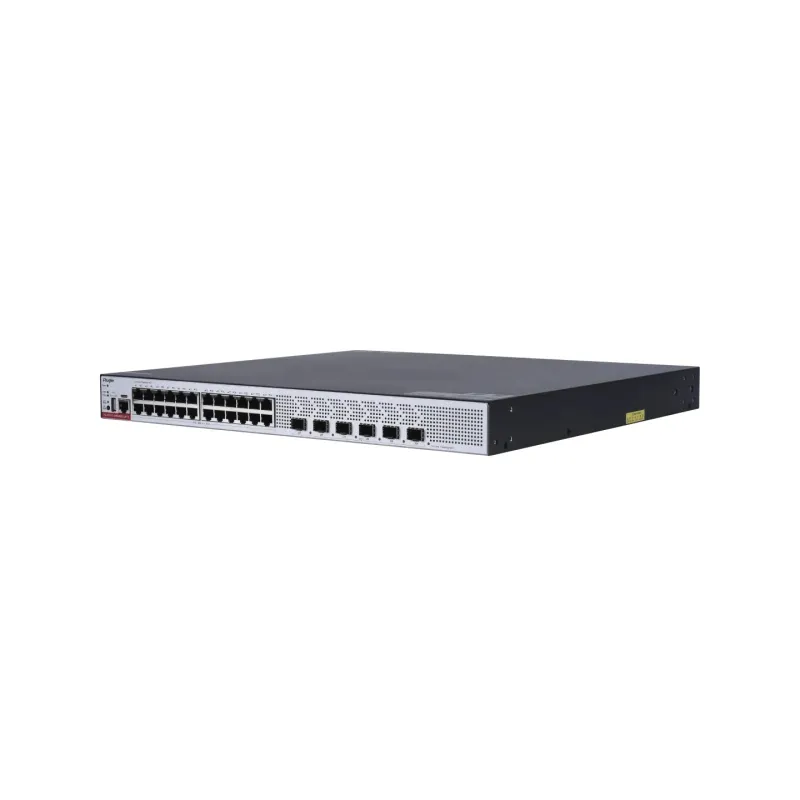

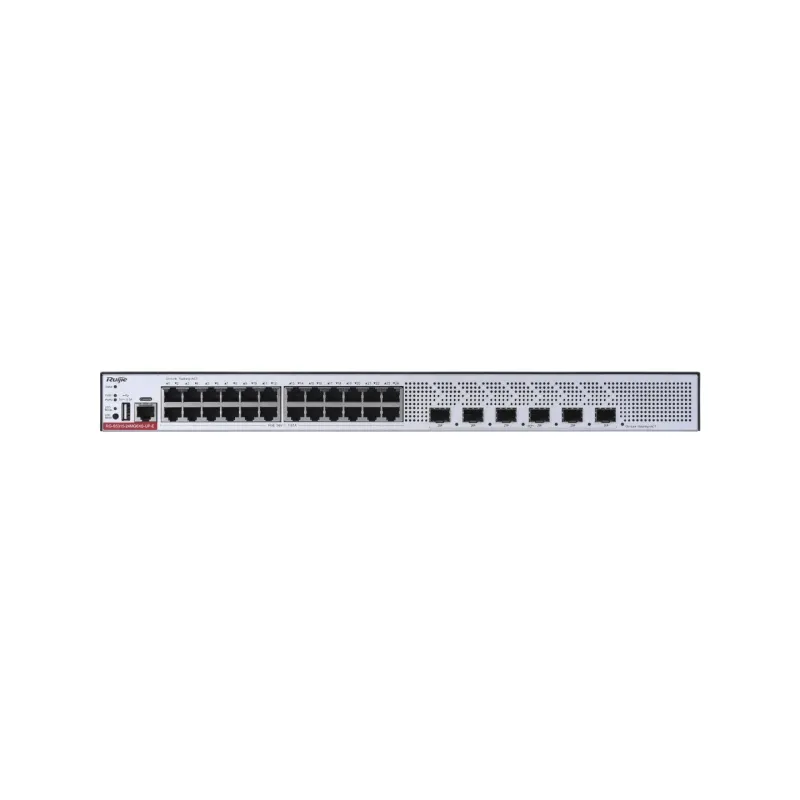

Overview | Ruijie RG-S5315-24MG6XS-UP-E L3-Managed PoE++ Switch 24Port Lan 2.5Gbps, 6 Port SFP+ 10G, จ่ายไฟ POE bt 24Port สูงสุด 90W ต่อ Port (ใช้ร่วมกับ Power Module)

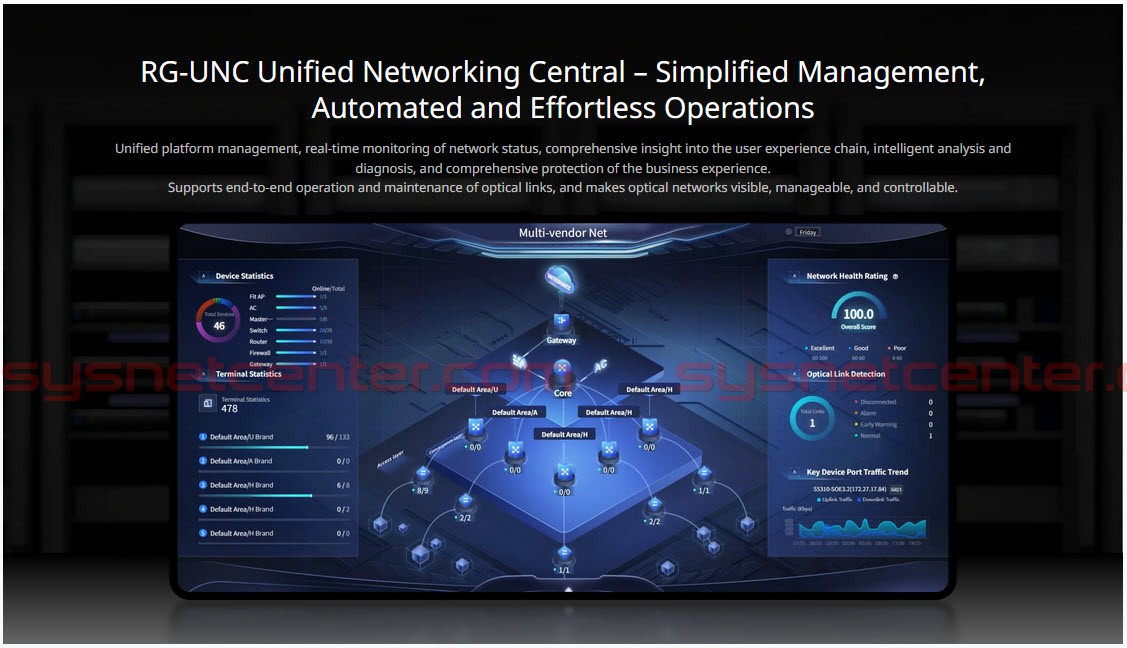

รองรับการ Managed ผ่าน Ruijie Cloud |
Port Specifications |

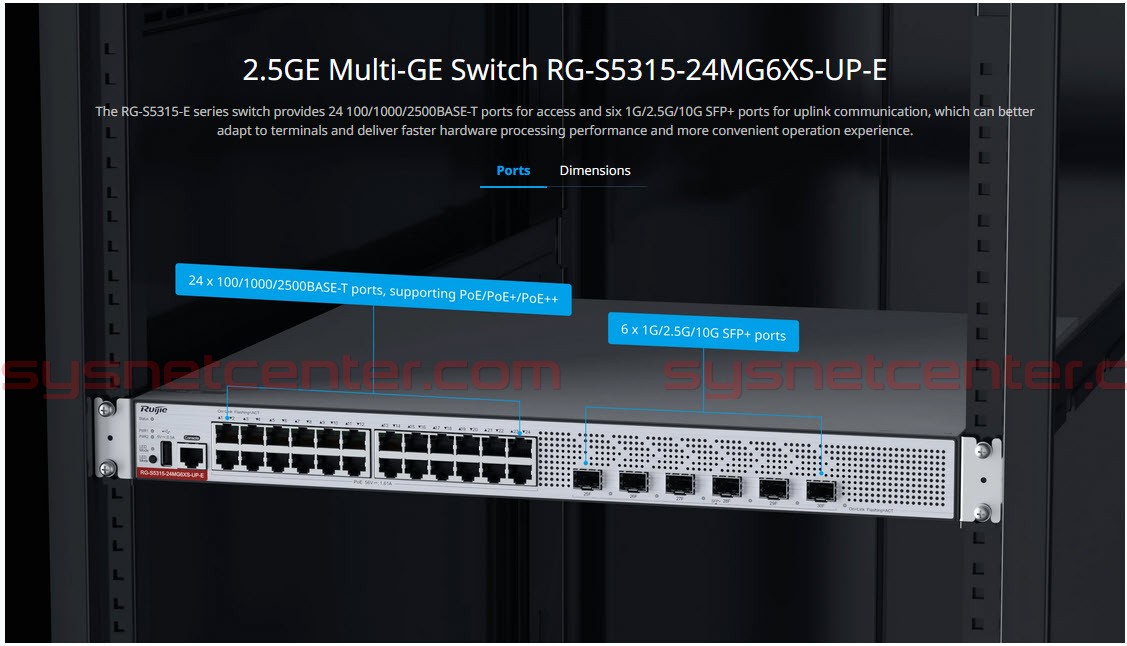

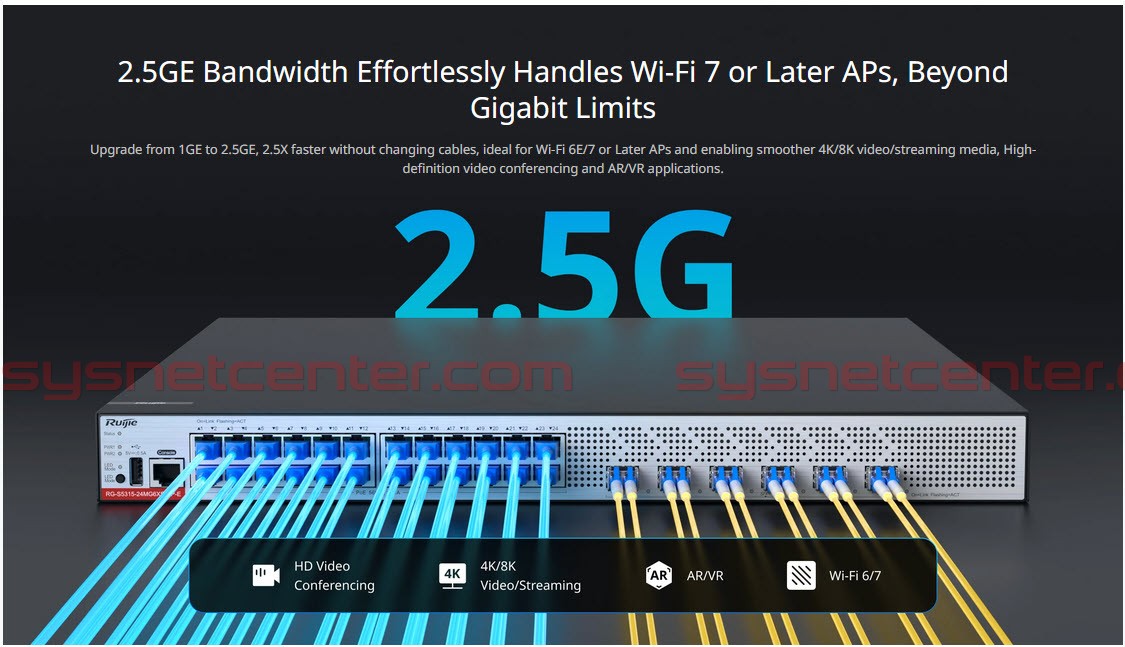

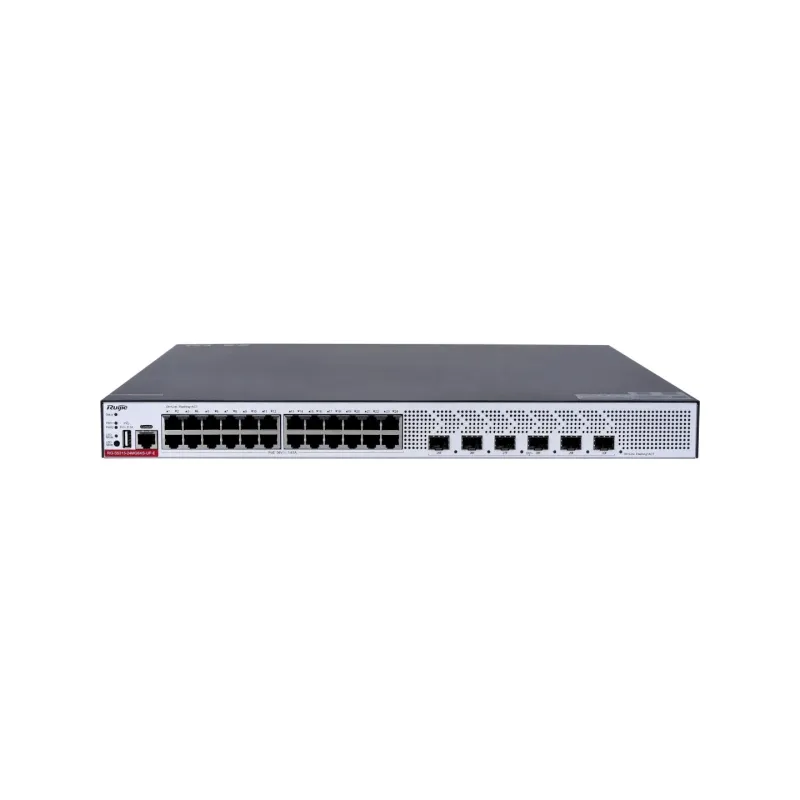

| Fixed service port | 24 x 100/1000/2500BASE-T ports, supporting PoE/PoE+/ PoE++6 x 1GE/2.5GE/10GE SFP+ ports |
| Module slot | 2 x power module slots |
| Power module | RG-PA1000I-P-FRG-PA600I-P-F |
| Fixed management port | 1 x RJ45 console port |
| USB port | 1 x USB port |
System Specifications |
| System packet forwarding rate *1 | 240 Gbps |
| System switching capacity *2 | 180 Mpps |
| CPU | Dual-core CPU built-in MAC processor, each core with the clock speed of 1.0 GHz |
| Real-time clock (RTC) | Supported |
| BootROM | 16 MB |
| Flash memory | 256 MB |
| Memory | 1 GB |
| Switch buffer | 2 MB |
Dimensions and Weight |
| Unit dimensions (W x D x H) | 442 mm × 420 mm × 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
| Shipping dimensions (W x D x H) | 575 mm × 568 mm × 185 mm (22.64 in. x 22.36 in. x 7.28 in.) |
| Rack height | 1 RU |
| Unit weight | 4.1 kg (9.04 lbs) |
| Shipping weight | 6.8 kg (14.99 lbs) |
Power Supply and Consumption |
| Power supply | 2 x pluggable power modules |
| Power module redundancy | Dual IEEE 802.3at or IEEE 802.3af power supplies are supported, and power supplies can work in hot standby mode. |
| Power input | RG-PA600I-P-F (AC input):- Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz- Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz- Maximum input current: 8 ARG-PA1000I-P-F (AC input 1):- Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz- Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz- Maximum input current: 12 ARG-PA1000I-P-F (AC input 2):- Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz- Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz- Maximum input current: 8 A |
| Maximum output power | RG-PA600I-P-F: 600 WRG-PA1000I-P-F:- 100 V AC to 130 V AC: 930 W;- 200 V AC to 240 V AC: 1000 W; |

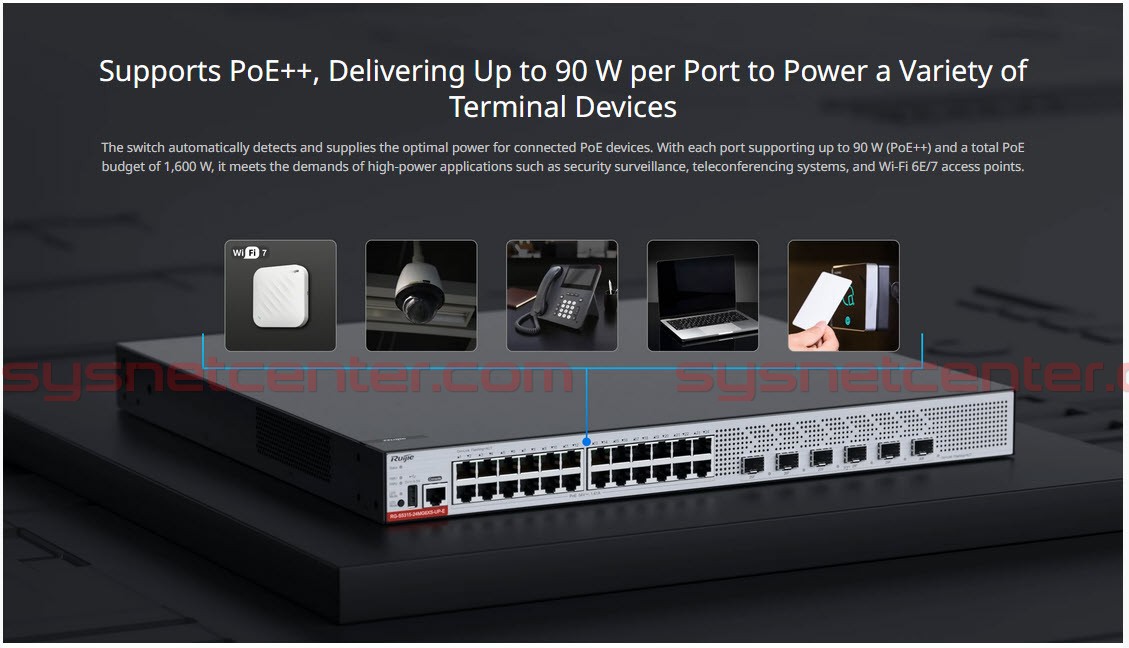

| PoE port | All RJ45 ports support PoE/PoE+/PoE++ (IEEE802.3af/at/bt) power supply. |
| PoE cable pairs | Four pairs (1--2, 3--6, 4--5 and 7--8 pairs) |
| PoE output power | Each PoE port provides up to 90 W of power.The maximum power depends on the configured power supply.- 1 x RG-PA600I-P-F: 470 W- 2 x RG-PA600I-P-F: 940 W;- 1 x RG-PA1000I-P-F: 800 W- 2 x RG-PA1000I-P-F: 1600 W;a maximum output of 1600 W over 24 ports |
| Maximum power consumption | ≤ 75 W (without PoE load)< 1675 W (with PoE full load) |
Environment and Reliability |
| Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)Storage temperature: --40°C to +70°C (--40°F to +158°F)Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing)Storage humidity: 5% to 95% RH (non-condensing) |
| Altitude | Operating altitude: 0--5,000 m (0--16,404 ft.)Storage altitude: 0--5,000 m (0--16,404 ft.) |
| Mean time between failure (MTBF) | > 200,000 hours |
| Fan | 2 x fixed fan modules |

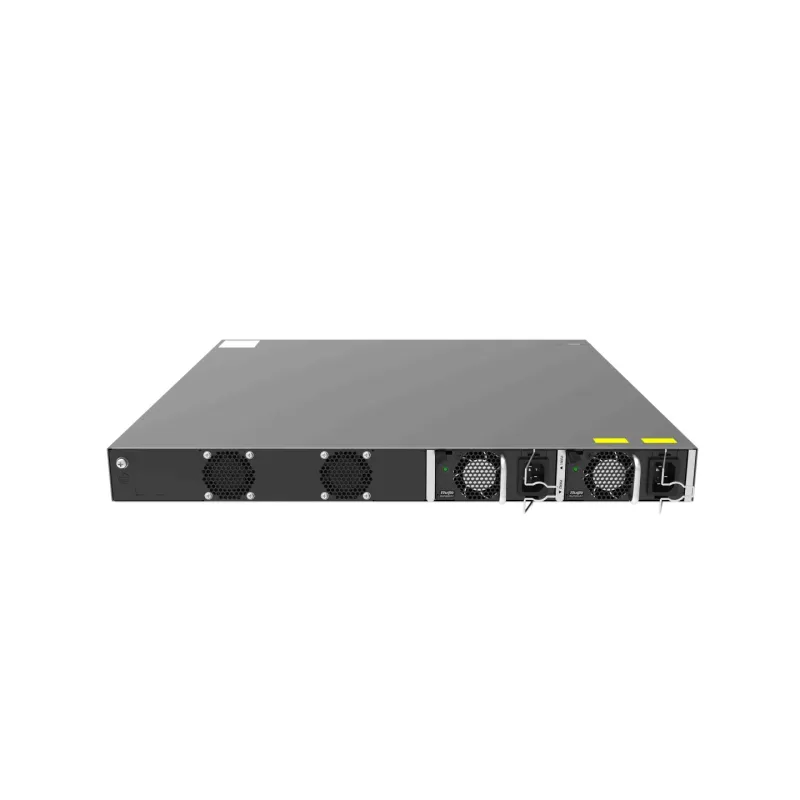

| Heat Dissipation | Air intake from the left and front panel, air exhaust from the rear panel |
| Acoustic noise | SPL at ambient temperature of 27°C (80.6°F):31.9 dB (30% PoE load, 2 RG- PA600I-P-F power modules, adjusted fan speed), 32.3 dB (30% PoE load, 2 RG-PA1000I-P-F power modules, adjusted fan speed) |

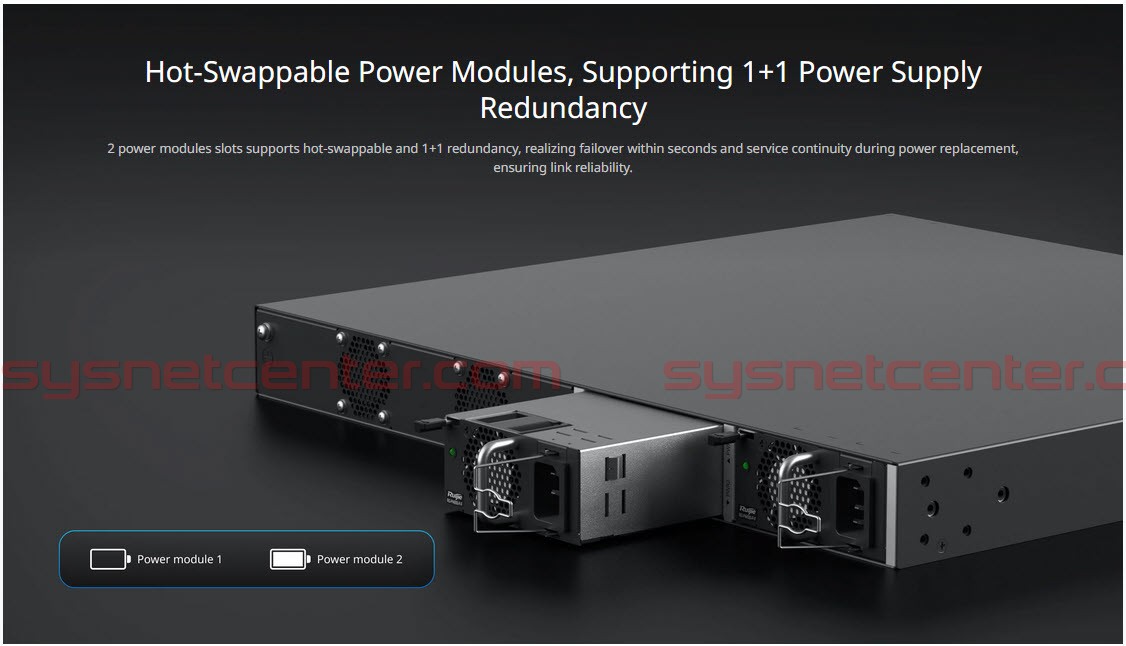

| Power module hot swapping | Supported |
| USB hot swapping | Supported |
| Cable hot swapping | Supported by all ports |
| Power Supply Monitoring | Obtaining the power supply model: supportedObtaining the in-place status: supportedFault alarm: supported |
| Fan monitoring | Automatic fan speed regulationFan failure alarm |
| Temperature monitoring | Temperature monitoring: supportedTemperature alarm: supportedOvertemperature protection: supported |
| ESD | ESD contact/air discharge: 6 kV/8 kVESD susceptibility contact/air discharge: 8 kV/15 kV |
| Surge protection | Service port: common mode 10 kVPower port: common mode 6 kV, differential mode 6 kV |
Certification and Regulatory Compliance |
| Safety regulations | IEC 62368-1 |
| EMC regulations | EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
| RoHS | European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 |
Software Specifications |
| IEEE 802.1Q VLAN | A maximum of 4,000 IEEE 802.1Q VLANsPort-based VLANMAC-based VLANPrivate VLANVoice VLANGARP VLAN Registration Protocol (GVRP) |
| QinQ | Basic QinQSelective QinQ |
| ACL | Standard IP ACLs (IP-based hardware ACLs)Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)Time-based ACLsExpert ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)ACL 80IPv6 ACLGlobal ACLACL redirection |
| QoS | Port traffic identificationRate limiting on port traffic802.1p/differentiated services code point (DSCP)/type of service (ToS) traffic classificationEight priority queues per portStrict priority (SP), Weighted Round Robin (WRR), and SP+WRR queue scheduling |
| Mirroring | One-to-one mirroring, many-to-one mirroring, one-to-many mirroringSwitched port analyzer (SPAN) and remote SPANFlow-based local and remote mirroring |
| DHCP | DHCP serverDHCP clientDHCP snoopingDHCP relayIPv6 DHCP snoopingIPv6 DHCP clientIPv6 DHCP relay |
| Security feature | 3-tuple binding (IP address, MAC address, and port)3-tuple binding (IPv6 address, MAC address, and port)Filtering of invalid MAC addressesPort- and MAC-based 802.1X authenticationMAC Authentication Bypass (MAB)Portal authentication and Portal 2.0 authenticationARP checkDynamic ARP Inspection (DAI)ARP packet rate limitingGateway ARP spoofing preventionBroadcast storm suppressionHierarchical management of administrators and password protectionRADIUS and TACAS+AAA (IPv4/IPv6) for device login managementSecure Shell (SSH) and SSH V2.0Bridge Protocol Data Unit (BPDU) guardIP source guardCPP and NFPPPort protection |
| Ring network protocol | In compliance with the G.8032 international standard ring network protocol Ethernet Ring Protection Switching (ERPS), well compatible with other products that support this protocol |
| PoE | IEEE 802.3af/at/bt-compliant power supplyAutomatic and energy-efficient power supply management modesUninterruptible power supply upon warm startScheduled power-on and power-off of PoE ports based on the time policyPort priority |
| IP routing | IPv4/IPv6 static routingRouting Information Protocol (RIP), RIP next generation (RIPng), Open Shortest Path First Version 2 (OSPFv2), and OSPFv3Routing policy |
| Basic IPv6 protocols | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 tracert, and other IPv6 protocols |
| SAVI | Neighbor Solicitation (NS), Neighbor Advertisement (NA), Router Solicitation (RS), and Router Advertisement (RA) packet attack defensePreventing an unauthorized DHCPv6 server from allocating IPv6 addressesCache of invalid terminal information |
| VSU | VSULocal stacking and remote stackingCross-chassis link bundling within the stackVirtualization through standard service ports |
| Reliability | 1+1 power redundancyBidirectional Forwarding Detection (BFD)IPv6-based gateway hot backup protocol (Virtual Router Redundancy Protocol Version 3 [VRRPv3]) |
| ZTP | CWMP (TR-069) |
| Management feature | SNMPv1/v2c/v3, CLI (Telnet/console), RMON (1, 2, 3, 9), Web, SSH, syslog/debugging, Network Time Protocol (NTP)/Simple Network Time Protocol (SNTP), File Transfer Protocol (FTP), Trivial File Transfer Protocol (TFTP), and sFlow |
ประกัน | 3 ปี |
