RG-WS6012-L Product Specification |

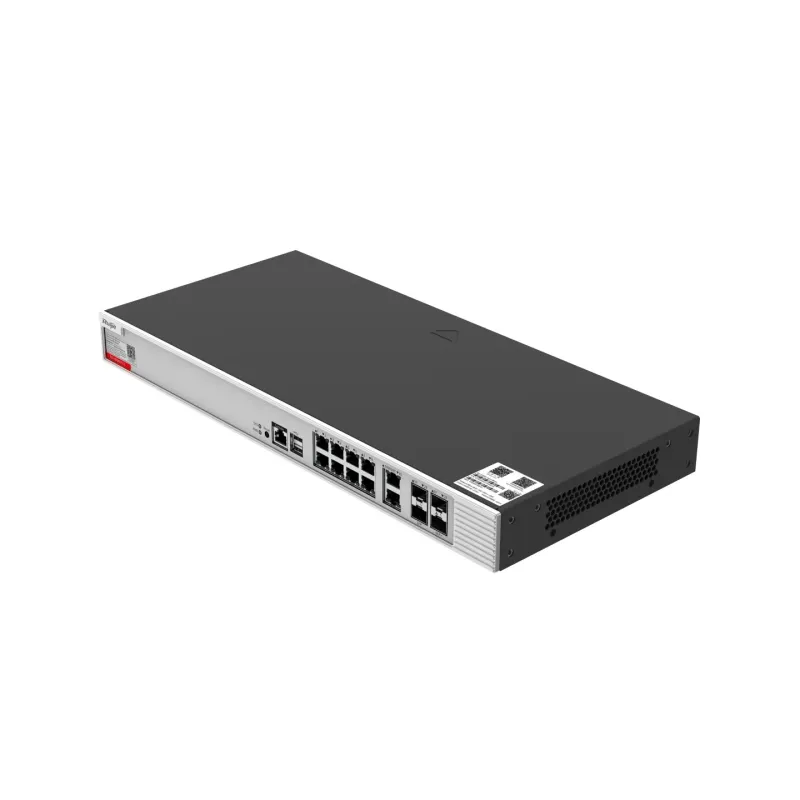

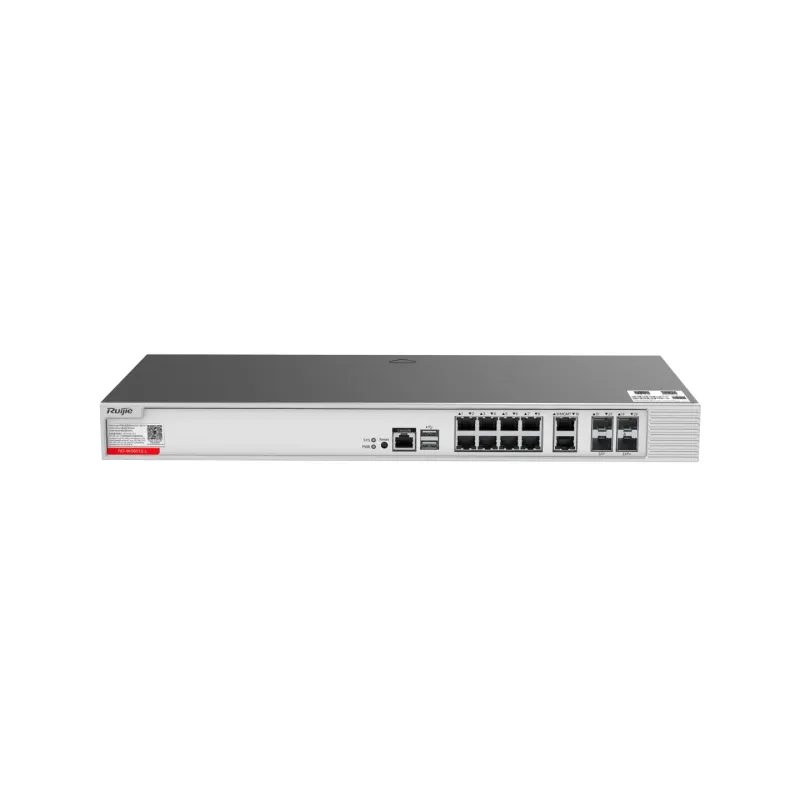

Overview | Ruijie RG-WS6012-L High-Performance 10 Gbps Wireless Access Controller รองรับ Access Point Default 32 APs สูงสุด 896 APs เมื่อ Upgrade License รองรับการจัดการ Staion ได้ 4,480 Clients |
Hardware |
Memory | 4 GB |
Flash memory | 16 MB |
Dimensions and Weight |
Unit dimensions (W x D x H) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets) 486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets) |
Shipping dimensions (W x D x H) | 550 mm x 460 mm x 368 mm (21.65 in. x 18.11 in. x 14.49 in.) |
Rack size | 1 RU |
Unit weight | 2.7 kg (5.95 lbs) |
Shipping weight | 3.5 kg (7.72 lbs) |
Mounting | Rack-mount |
Port Specifications |
Fixed service port | 8 x 10/100/1000BASE-T ports
2 x 1GE SFP/RJ45 combo ports
RJ45 ports support 10/100/1000BASE-T.
Port 9/MGMT can also be used as a management port.
2 x 10GE SFP+ ports |
Fixed management port | 1 x RJ45 console port
2 x USB 3.0 ports, compatibility with USB 2.0 |
Status LED | 1 x system status LED
1 x power status LED
8 x 10/100/1000BASE-T port LEDs
2 x 1GE SFP/RJ45 combo port LEDs
2 x 10GE SFP+ port LEDs |
Button | 1 x Reset button
Press the button for shorter than 3 seconds. Then the device restarts.
Press the button for longer than 3 seconds. Then the device restores to factory settings. |
Power Supply and Consumption |
Maximum power consumption | 30 W |
Input power supply | 1 x 40 W built-in power module |
Input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
Input current | 0.25 A (maximum RMS current) |
Output voltage | 12 V/3.33 A |
Environment and Reliability |
Temperature | Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Note: At an altitude in the range of 1,800-4,000 m (5,905.51-13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
Altitude | Operating altitude: -500 m to +4,000 m (-1,640.42 ft. to +13,123.36 ft.)
Storage altitude: -500 m to +4,000 m (-1,640.42 ft. to +13,123.36 ft.) |
Humidity | Operating humidity: 10% RH to 90% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing) |
Acoustic noise | < 78 dB |
Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
Performance and Capacity |
WLAN |
Default number of manageable APs | 32
Note: The default number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details. |
Maximum number of configurable APs | 2,048 |
Maximum number of manageable APs | 896
Note: The maximum number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details. |
Maximum number of manageable STAs | 4,480
Note: The maximum number of STAs that can be managed by the RG-WS6012-L is subject to the network environment. Contact technical support team for details. |
WLAN service | Maximum number of WLAN IDs: 2,048
Maximum number of associated STAs per WLAN: 4,480 |
Intra-AC roaming handoff time | < 50 ms |
Maximum number of virtualized ACs | 4 |
Number of concurrent CAPWAP data channels | 896 |
Routing and Switching |
Forwarding capacity | 10 Gbps (subject to the wireless network environment) |
Number of MAC address entries | 32,768 |
Number of VLANs | 4,096 |
Number of ARP entries | 32,768 |
DHCP address pools | Number of IPv4 address pools: 2,000
Number of IPv4 addresses: 24,576
Number of IPv6 address pools: 256
Number of IPv6 addresses: 2,048 |
Number of routing entries | IPv4 routing entries: 8,192
IPv6 routing entries: 10,000 |
Security and Authentication |
Maximum number of STAs supported by the built-in Portal server | 1,500 |
Number of ACL entries | 65,536 |
Applicable Software Version |
Applicable software version | AC_RGOS 11.9(6)W6B1 or later |
WLAN |
IEEE 802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax |
CAPWAP | Layer 2 and Layer 3 topology supported between an AP and an AC
An AP can automatically discover the accessible AC.
An AP can be automatically upgraded through the AC.
An AP can automatically download the configuration file from the AC.
CAPWAP through NAT |
Roaming | Intra-AC Layer 2 or Layer 3 roaming
Inter-AC Layer 2 or Layer 3 roaming
Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode
Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode |
Forwarding mode | Centralized forwarding
Local forwarding
Service-based flexible forwarding |
Wireless QoS | AP/WLAN/STA-based bandwidth limiting
(STA-based rate limit range: 8-261,120 in the unit of 8 kbps. For example, if you set the value to 8, the rate limit is 8 x 8 kbps = 64 kbps.)
Static and intelligent rate limiting based on STA quantity
Fair scheduling |
User isolation | AC-based user isolation
AP-based user isolation
WLAN-based user isolation |
Reliability | AC virtualization
AC failover
Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby)
Multi-AC cluster (N-to-N)
Remote intelligent perception technology (RIPT)
Non-stop service during upgrade |
STA management | Access control based on the number of STAs associated with the AP
Access control based on the number of STAs associated with the SSID
Balanced access control based on the number of STAs associated with the AP
Balanced access control based on the AP traffic
Band steering
Configuration of the RSSI threshold in dBm (range: 0-100)
Configuration of the STA idle timeout period in seconds (range: 60-86,400) |
WLAN optimization | Adjustment of the transmit power for beacon or probe response frames |
RF management | Country or region code setting
Manual setting of the transmit power
Automatic setting of the transmit power
Manual setting of the operating channel
Automatic setting of the operating channel
Automatic adjustment of the data rate
Coverage Hole Detection
AP load balancing based on traffic and STA quantity
Band selection
Radio frequency interference (RFI) detection and mitigation |
Security |
IPv4 security authentication | Web-based authentication
802.1X authentication
MAB authentication
SMS authentication |
IPv6 security authentication | 802.1X authentication
Web-based authentication |
IEEE 802.11 security and encryption | Multi-SSID mode
SSID hiding
IEEE 802.11i-compliant PSK authentication
WPA and WPA2
WEP (WEP/WEP128)
TKIP
CCMP
ARP anti-spoofing |
CPP | Supported |
NFPP | Supported |
WIDS | Supported |
AP virtualization | Supported |
Protocols |
IPv4 protocols | Ping and traceroute
DHCP server, DHCP client, DHCP relay, and DHCP snooping
DNS client
NTP
Telnet
TFTP server and TFTP client
FTP server and FTP client |
IPv6 protocols | DNSv6 client
DHCPv6 relay and DHCPv6 server
TFTPv6 client
FTPv6 server and FTPv6 client
IPv6 CAPWAP
ICMPv6
IPv6 ping
Manual tunnels, automatic tunnels, and ISATAP
Manually configured IP addresses and automatically created local addresses
IPv6 traceroute
Neighbor discovery |
IPv4 routing | Static routing, RIP, and OSPF |
IPv6 routing | Static routing |
Management |
Network management | SNMP v1/v2c/v3
RMON
Syslog
Remote probe |
Network management platform | Eweb Wi-Fi heat map |
User access management | Console port login, Telnet login, SSH login, and FTP upload |
Regulatory Compliance |
Safety regulation | IEC 62368-1, EN 62368-1 |
EMC regulation | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386 |
รับประกัน | 3 ปี |
