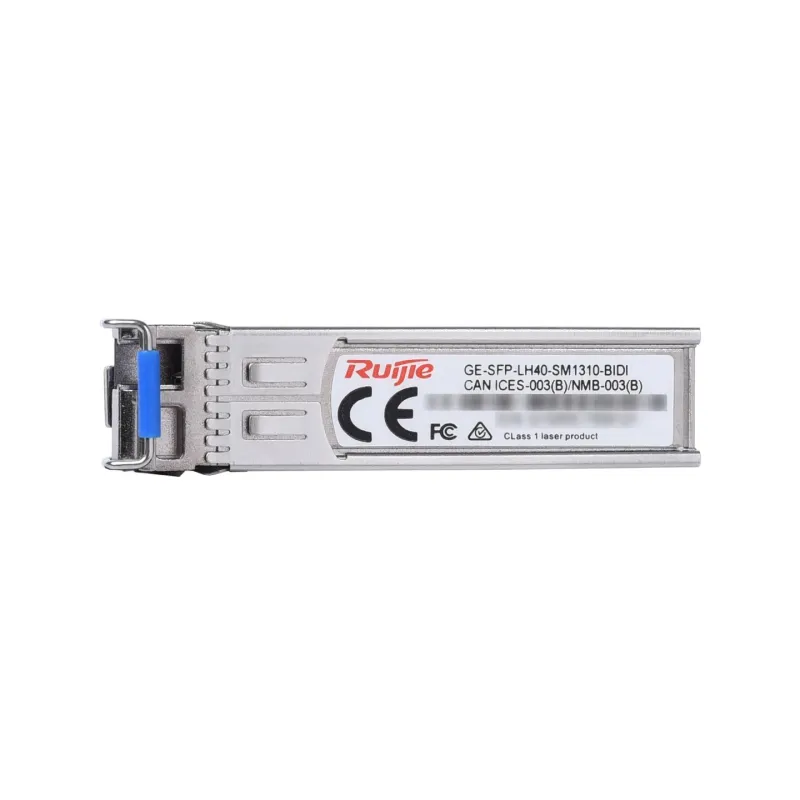

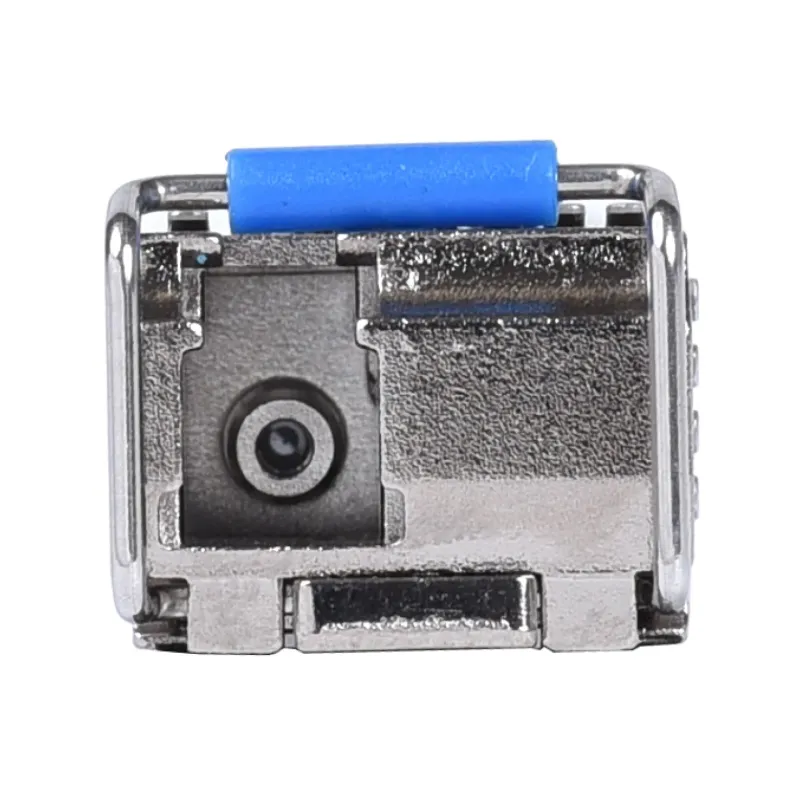

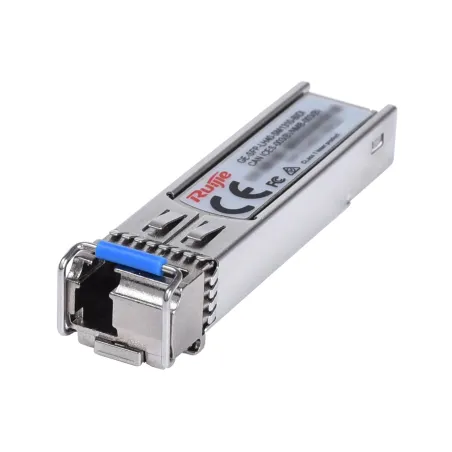

SFP Module Ruijie GE-SFP-LH40-SM1310-BIDI 1000BASE-LX

Product Specification

Overview

SFP Module GE-SFP-LH40-SM1310-BIDI Ruijie 1000BASE-LX SFP 1310nm-TX/1550nm-RX 40-km DDM Simplex LC SMF Transceiver Module ใช้คู่กับ GE-SFP-LH40-SM1550-BIDI รองรับ Network Switch Ruijie/Reyee ทุกรุ่น

Data rate

1.25 Gbps

Form factor

SFP

Connector type

BIDI LC

Cable type

SMF

Fiber end face finish type

Ultra Physical Contact (UPC)

Transmitter type

Receiver type

PIN

Reach

40 km (131,233.60 ft.)

Bit error ratio (BER)

1.00E-12

Data diagnosis-capable (DDM/DOM)

Yes

Power consumption

≤ 1.5 W

Transmitter Optical Parameters

Wavelength

1310 nm TX
1550 nm RX

Max. transmit power (AVG)

0 dBm

Min. transmit power (AVG)

-5 dBm

Min. extinction ratio

≥ 23 dB

Receiver Optical Parameters

Receive sensitivity (OMA)

< –20 dBm

Overload optical power (AVG)

-3 dBm

Environment and Reliability

Operating temperature

0°C to 70°C (32°F to 158°F)

Operating humidity

5% RH to 95% RH

Storage temperature

-40°C to +85°C (-40°F to +185°F)

Storage humidity

5% RH to 95% RH

Dimensions and Weight

Dimensions (W x D x H)

56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)

Weight

35 g (0.08 lbs.)
