Ruijie Optical Module Hardware Installation and Reference Guide (V1.0)

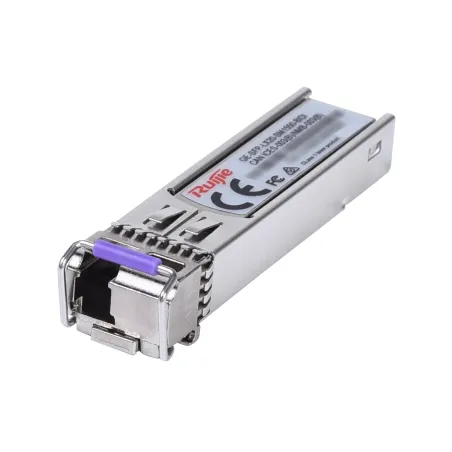

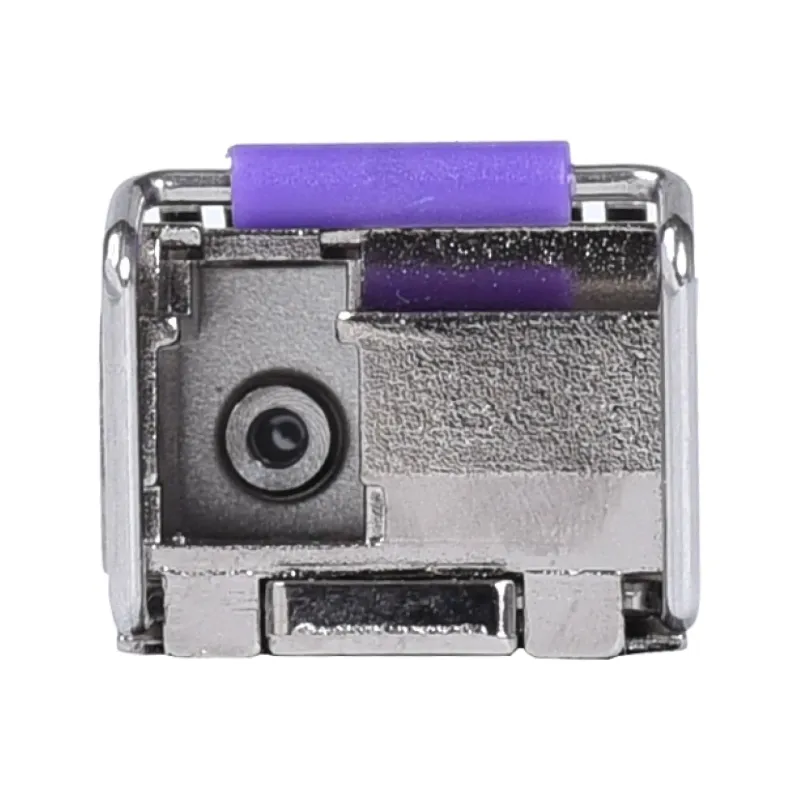

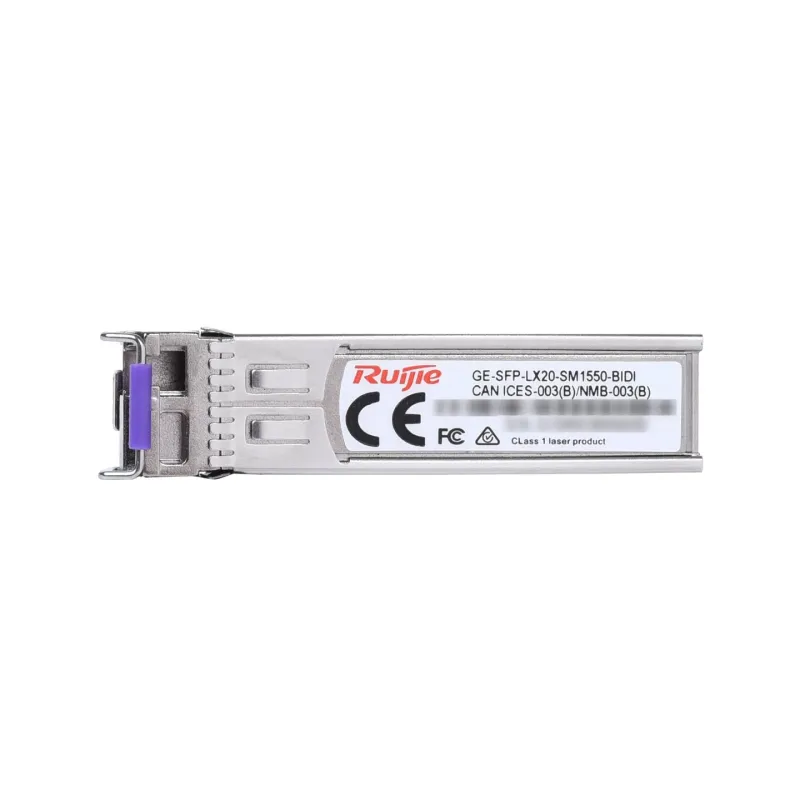

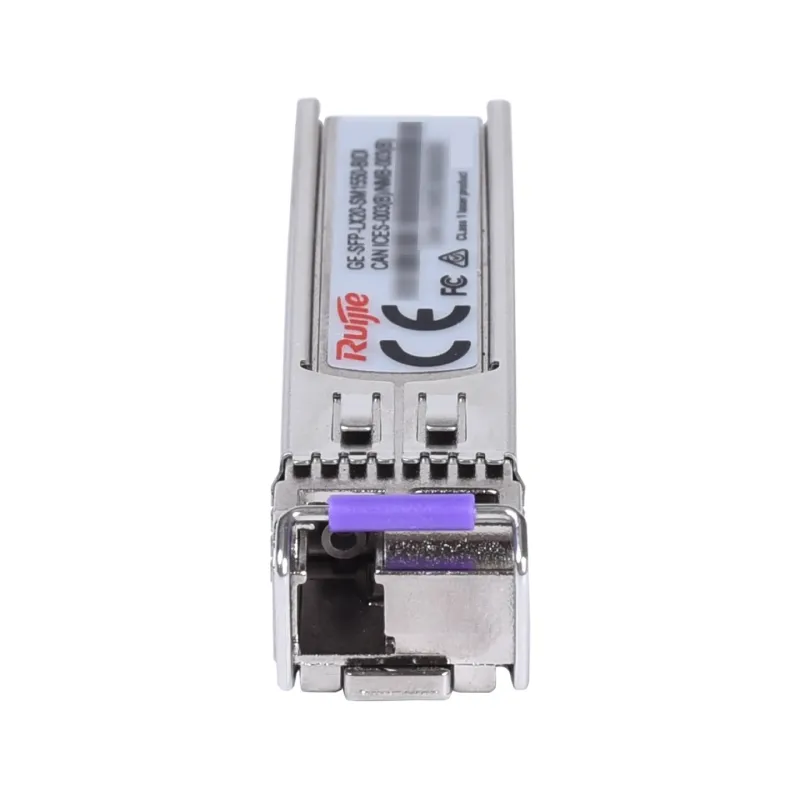

SFP Module GE-SFP-LX20-SM1550-BIDI 1000BASE-LX SFP 1550nm-TX/1310nm-RX 20-km DDM Simplex LC SMF Transceiver Module
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)
Highlight Features
Max. power consumption 1.5 W Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Product Specification
Overview
GE-SFP-LX20-SM1550-BIDI Ruijie 1000BASE-LX SFP 1310nm-TX/1550nm-RX 20-km DDM Simplex LC SMF Transceiver Module ใช้คู่กับ GE-SFP-LX20-SM1310-BIDI รองรับ Network Switch Ruijie/Reyee ทุกรุ่น
Data rate
1.25 Gbps
Form factor
SFP
Connector type
BIDI LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB
Receiver type
PIN
Reach
20 km (65,616.80 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters
Wavelength
1550 nm TX
Max. transmit power (AVG)
-3 dBm
Min. transmit power (AVG)
-9 dBm
Min. extinction ratio
≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –20 dBm
Overload optical power (AVG)
-3 dBm
Environment and Reliability
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
5% RH to 95% RH
Storage temperature
-40°C to +85°C (-40°F to +185°F)
Storage humidity
5% RH to 95% RH
Dimensions and Weight
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
