Product Specification
|
|
Overview
|

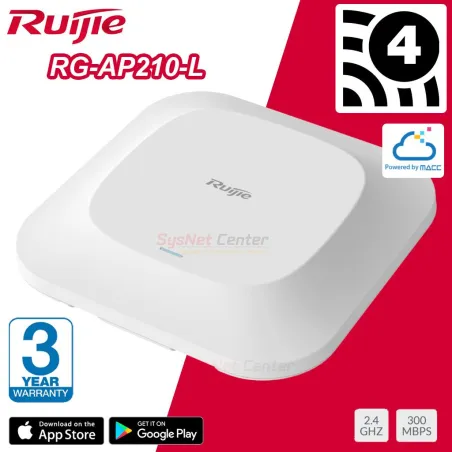

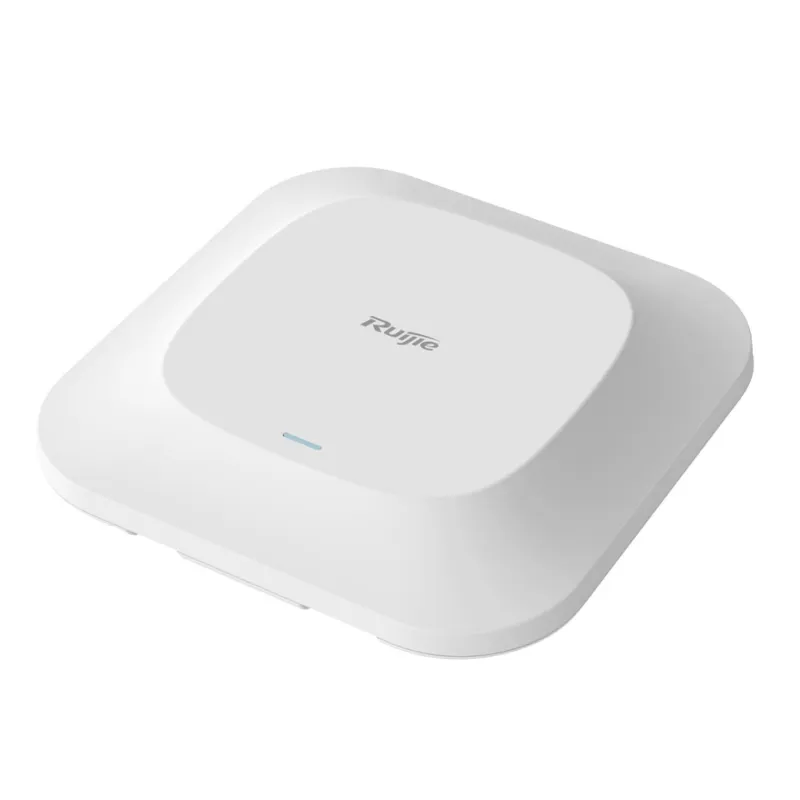

Ruijie RG-AP210-L Wireless Access Point มาตรฐาน N 2.4GHz 2x2 ความเร็วสูงสุด 300Mps, 1 Port Lan รองรับ POE มาตรฐาน 802.3af
รองรับการทำ Authenticate แบบ Captive Portal, Social Login
Manage และ Monitor ผ่าน Cloud, Standalone และ Hardware Control
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Type
|
Indoor Ceiling/Wall-mounting
|
|
Radio
|
Single-band
|
|
Protocol
|
802.11b/g/n
|
|
Operating Bands
|
802.11b/g/n: 2.4GHz to 2.483GHz
|
|
Antenna
|
Built-in Antenna
|
|
Max Throughput
|
300Mbps
|
|
Spatial Streams
|
2x2
|
|
Maximum Transmit Power
|
100mW
|
|
IP Rating
|
IP41
|
|
Ports
|
1 10/100BASE-T Ethernet uplink
Port LAN1 supports PoE
|
|
Power Supply
|
Local power supply (DC 12V/1A)
PoE (802.3af
(Not Include)
|
|
Power Consumption
|
<7.5W
|
|
Maximum clients per AP
|
128
|
|
BSSID capacity
|
16 |
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
Support
|
|
Bandwidth control
|
Support
|
|
Preference for 5GHz (band select)
|
N/A |
|
Band Steering (5G Priority)
|
N/A |
|
PSK, Web, 802.1x authentication
|
Support
|
|
PPSK authentication
|
N/A
|
|
Data encryption
|
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
|
|
PEAP authentication
|
Support
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
RADIUS
|
Support
|
|
Wireless Intrusion Detection System(WIDS)
|
Support
|
|
Wireless Intrusion Prevention System (WIPS)
|
Support
|
|
IPv4 address
|
Static IP address or DHCP reservation
|
|
IPv6 address
|
Manual or automatic configuration
|
|
Multicast
|
Multicast to unicast conversion
|
|
Network management
|
SNMP v1/v2C/v3, Telnet, TFTP, Web management
|
|
Cloud AC management
|
Support
|
|
FAT/FIT switching
|
Support
|
|
Lock
|
Support
|
|
LED Indicators
|
1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
|
|
Wi-Fi Alliance Certification
|
Support
|
|
Radio Standard
|
EN300 328
EN301 893
|
|
EMC Standard
|
GB9254
EN301 489-1
EN301 489-17
|
|
Safety Standard
|
GB4943
EN/IEC 60950-1
|
|
Dimensions (W x D x H) (mm)
|
175*175*25.8
|
|
Weight
|
0.35kg
|
|
Temperature
|
Operating Temperature:
-10°C to 45°C
Storage Temperature:
-40°C to 70°C
|
|
Humidity
|
Operating Humidity:
5% to 95% (non-condensing)
Storage Temperature:
5% to 95% (non-condensing)
|
|
ประกัน
|
3 ปี
|
