Product Specification
|
|
Overview
|

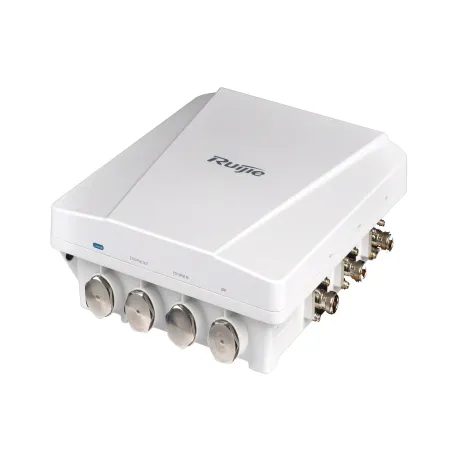

Ruijie RG-AP630 (IODA) Wireless Access Point Outdoor มาตรฐาน wifi ac ความเร็ว 1.75Gbps , Port Lan Gigabit, 1 SFP Combo, เสากระจายสัญญาณรอบทิศทาง กันน้ำกันฝุ่นมาตรฐาน IP67
รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Controll
พร้อม Ruijie Cloud License แบบ Lifetime
|
|
Radio
|
Concurrent dual-radio dual-band
|
|
Protocol
|
802.11a/b/g/n/ac
|
|
Operating Bands
|
802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz
(vary depending on countries)
|
|
Antenna
|

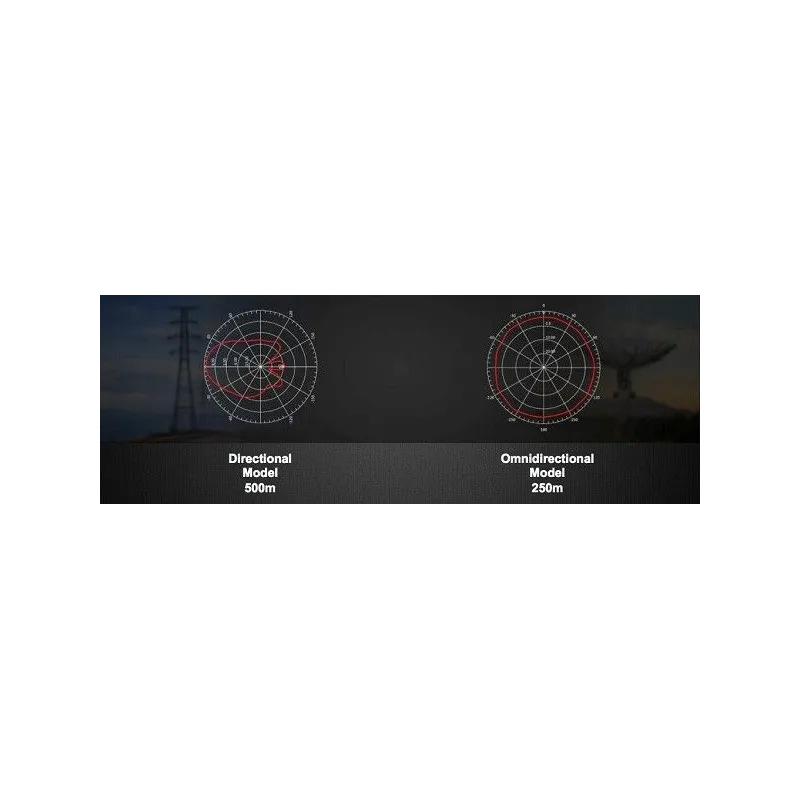

Built-in Omnidirectional Smart Antenna (support external/internal antenna switching)
|
|
Antenna Gain
|
4dBi
|
|
Spatial Streams
|
3
|
|
Max Throughput
|
450Mbps@2.4GHz
1.3Gbps@5GHz
1.75Gbps per AP
|
|
Modulation
|
OFDM: BPSK@6/9Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps
DQPSK@2Mbps
CCK@5.5/11Mbps
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM
|
|
Receiver Sensitivity
|
11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps)
11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), - 77dBm(54Mbps)
11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15
11ac HT20: -90dBm (MCS0) , -63dBm (MCS9)
11ac HT40: -85dBm(MCS0) , -60dBm (MCS9)
11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)
|
|
Maximum Transmit Power
|
27dBm
Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.
|
|
Adjustable Power
|
1dBm
|
|
IP Rating
|
IP67
|
|

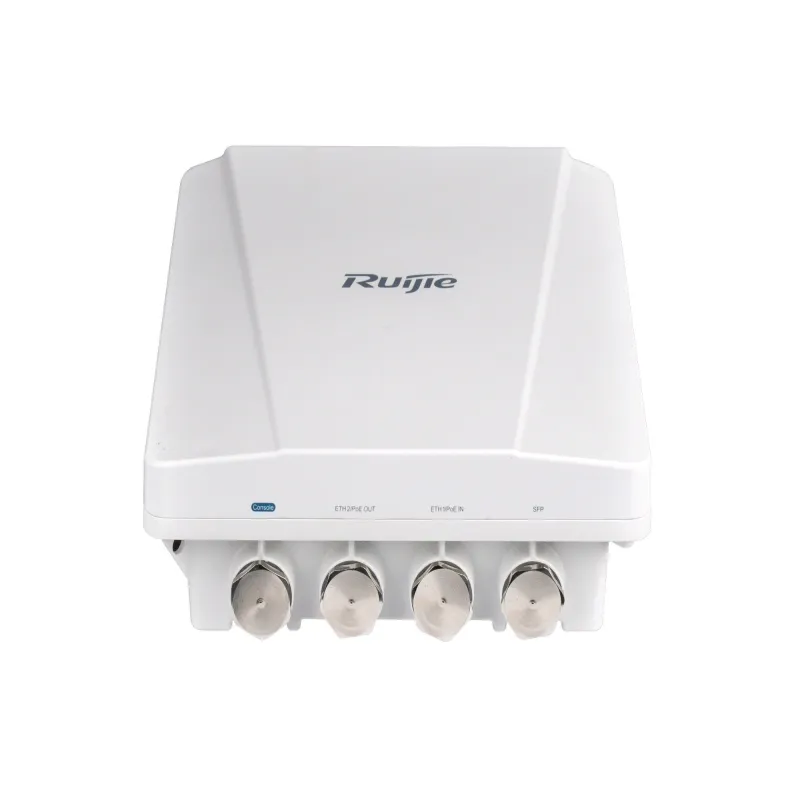

Service Port
|
1 10/100/1000Mbps ETH1/PoE IN port (RJ-45 connector);
1 SFP port (combo with ETH1)
|
|
Management Port
|
1 Console Port(RJ45 or Bluetooth)
|
|
Power Supply
|
PoE+ (802.3at)
|
|
Power Consumption
|
<25W
|
|
Maximum clients per AP
|
Up to 256
|
|
SSID capacity
|
Up to 16 per radio
Up to 32 per AP
|
|
SSID hiding
|
Support
|
|
Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID
|
Support
|
|
Remote Intelligent Perception Technology (RIPT)
|
Support
|
|
X-speed
|
Support
|
|
Intelligent load balancing based on the number of users or traffic
|
Support
|
|
STA control
|
SSID/radio-based
|
|
Preference for 5GHz (band select)
|
Support
|
|
Wireless position tracking
|
Support
|
|
Dynamic Frequency Selection(DFS)
|
Future Release Support
|
|
PSK, Web, and 802.1x authentication
|
Support
|
|
Data encryption
|
WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
|
|
QR code authentication
|
Support
|
|
SMS authentication
|
Support
|
|
PEAP authentication
|
Support
|
|
Data frame filtering
|
Whitelist, static/dynamic blacklist
|
|
User isolation
|
Support
|
|
Rogue AP detection and countermeasure
|
Support
|
|
Dynamic ACL assignment
|
Support
|
|
WAPI
|
Support
|
|
RADIUS
|
Support
|
|
CPU Protection Policy (CPP)
|
Support
|
|
Network Foundation Protection Policy (NFPP)
|
Support
|
|
Wireless Intrusion Detection System(WIDS)
|
Support
|
|
Wireless Intrusion Prevention System (WIPS)
|
Support
|
|
IPv4 address
|
Static IP address or DHCP reservation
|
|
IPv6 CAPWAP tunnel
|
Support
|
|
ICMPv6
|
Support
|
|
IPv6 address
|
Manual or automatic configuration
|
|
Multicast
|
Multicast to unicast conversion
|
|
Network management
|
SNMP v1/v2C/v3, Telnet, SSH, TFTP, and FTP and web management
|
|
Visualized wireless heat map analysis
|
Support
(need to integrate with SNC)
|
|
Real-time spectrum analysis
|
Support
(need to integrate with SNC)
|
|
Fault detection and alarm
|
Support
|
|
Cloud AC management
|
Support
|
|
Statistics and logs
|
Support
|
|
FAT/FIT switching
|
The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
|
|
Lock
|
Support
|
|
LED Indicators
|
Power status and WDS signal strength
|
|
Wi-Fi Alliance Certification
|
Support
|
|
Safety Standard
|
GB4943, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22
|
|
EMC Standard
|
GB9254-2008, EN301 489, EN55022, FCC Part15
|
|
Health Standard
|
FCC Bulletin OET-65C ,EN 50385, IC Safety Code 6
|
|
Radio Standard
|
FCC Part15,EN300328, EN301893
|
|
Vibration Standard
|
GB/T 2423
|
|
Dimensions (W x D x H) (mm)
|
276 × 246 × 90
|
|
Weight
|
<2.5kg
|
|
Temperature
|
Operating Temperature: -40°C to 55°C
Storage Temperature: -40°C to 70°C
|
|
Humidity
|
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
|
|
ประกัน
|
3 ปี
|
