Product Specification

Overview

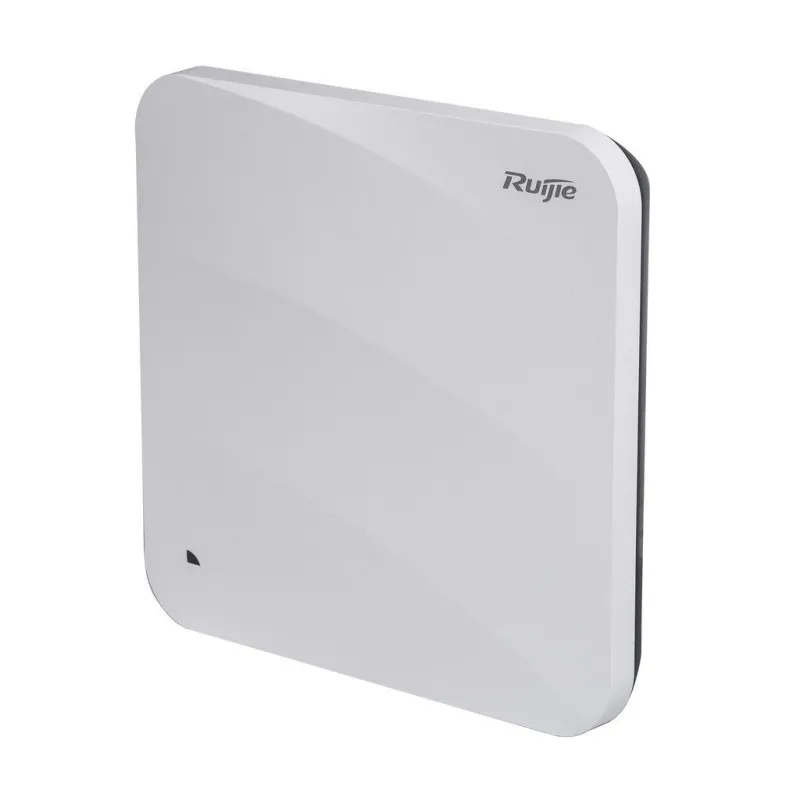

Ruijie RG-AP820-L(V3) Wireless Access Point WIFI6 มาตรฐาน ax, 2x2 MIMO, ความเร็วสูงสุด 2.97Gbps, พร้อม Port Lan Gigabit รองรับ POE มาตรฐาน 802.3af/at และ Port SFP ความเร็ว 1/2.5Gbps

ปรับ Channel Width 160Mhz, รองรับการManaged แบบ Standalone/Ruijie Cloud Control/ Hardware Controller

รองรับการทำ Authenticate แบบ Captive Portal, Social Login

พร้อม Ruijie Cloud License แบบ Lifetime

Radio

Dual-radio dual-band:
Radio1:2.4GHz 11ax,2×2 MIMO
Radio2:5GHz 11ax,2×2 MIMO

Operating Bands

Radio1:
802.11b/g/n/ax,2.4GHz~2.483GHz,HE40

Radio2:
802.11a/n/ac/ax,5.150GHz~5.350GHz,HE80/HE160
802.11a/n/ac,5.470GHz~5.725GHz,5.725GHz~5.850GHz,HE80
Note: vary depending on different countries

Max Throughput

Radio1:2.4GHz,0.574Gbps
Radio2:5GHz,2.402Gbps

Maximum throughput per AP:
2.4GHz+5GHz,2.976Gbps

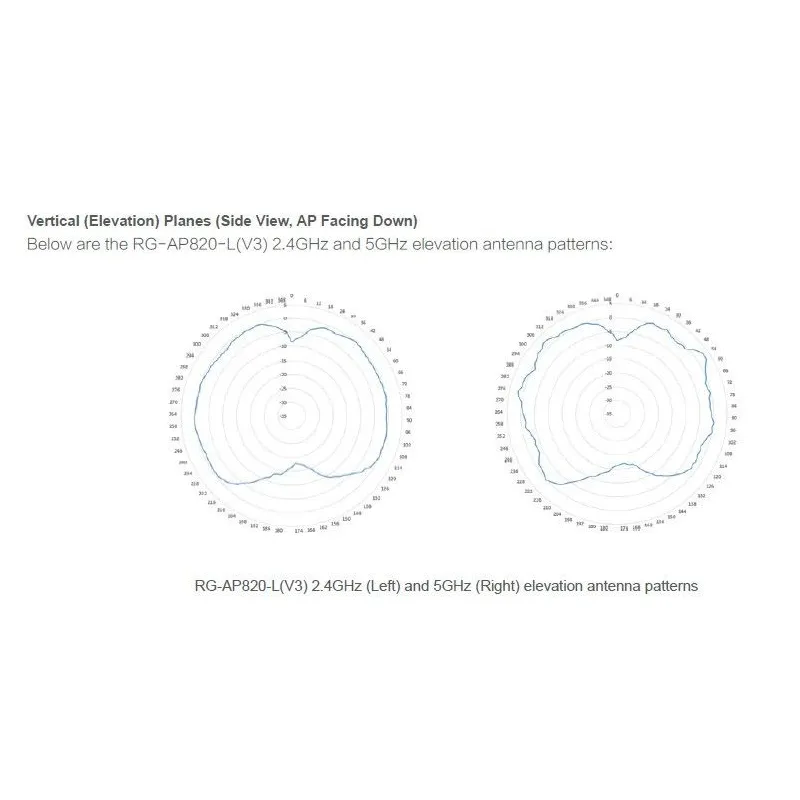

Antenna

Integrated Omnidirectional

Antenna Gain

2.4GHz: 2dBi
5GHz: 2dBi

Transmit Power

20dBm
Note: vary depending on different countries

Adjustable Power

1dBm

Modulation

OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps

DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps

MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

OFDMA

Receiver Sensitivity

11b : -96dBm (1Mbps), -93dBm (5Mbps), -89dBm (11Mbps)

11a/g : -91dBm (6Mbps), -85dBm (24Mbps), -80dBm (36Mbps), -74dBm (54Mbps)

11n : -90dBm@MCS0,-70dBm@MCS7,-89dBm@MCS8,-68dBm@MCS15

11ac : HT20 : -88dBm (MCS0), -63dBm (MCS9)

11ac : HT40 : -85dBm (MCS0), -60dBm (MCS9)

11ac:HT80:-82dBm (MCS0), -57dBm (MCS9)

11ax : HE80 : -82dBm (MCS0), -57dBm (MCS9 (-52dBm(MCS11)

11ax : 160MHz : -77dBm (MCS0) ,-50dBm (MCS11)

Signal Coverage

Circle with 20-meter radius

Note: AP actual coverage is related to AP placement height, this is reference value for 3-meter installation from ground

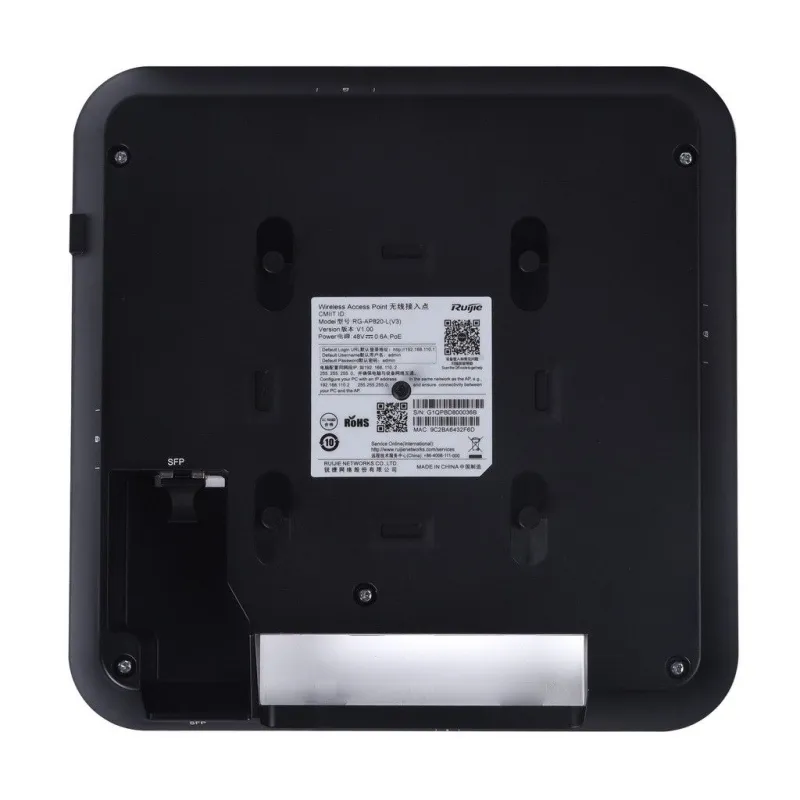

Interfaces

1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af/at)

Full Spectrum Operation in IEEE 802.3af Mode

1 1G/2.5G SFP Port

Management Port

1 RJ45 Console Port

LED Indicator

1 LED Indicator

Reset Button

Support

Power Supply

Local Power Supply (DC 48V/0.6A)

Note: DC power adapters should be purchased separately from third-party vendors if needed.

PoE (IEEE 802.3af Standard) Full Spectrum Operation (ไม่มีในชุดอุปกรณ์)

** เพื่อประสิทธิภาพสูงสุด แนะนำใช้ POE มาตรฐาน 802.3at

Power Consumption

12.95W

Temperature

Humidity

Operating Humidity: 5%~95% (non-condensing)

Storage Temperature: 5%~95% (non-condensing)

IP Rating

IP41

Safety Standard

GB 4943.1-2011,IEC 62368-1

EMC Standard

EN 300386,GB 19286-2003,GB 17618-1998

WLAN

Maximum Recommended Clients:120 (For General Usage)
Maximum Recommended Clients:64 (For HD Video)
SSID Hiding: Support
5G Priority (Band Steering): Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support
Remote Intelligent Perception Technology (RIPT): Support
Intelligent Device Recognition Technology: Support
Intelligent Load Balancing Based on the Number of Users or Traffic: Support
STA Limit Control: SSID/Radio based
Bandwidth Control: STA/SSID/AP-based

Security

Support PSK and Web authentication
Data Encryption: WPA (TKIP) , WPA-PSK , WPA2 (AES) , WPA3 , WEP (64/128bits)
PPSK authentication: Support
802.1X authentication: Support
PEAP authentication: Support
Data Frame Filtering: Allowlist, Static/Dynamic Blocklist
User Isolation: Support
Rogue AP Detection and Countermeasure: Support
Dynamic ACL Assignment: Support
RADIUS: Support
CPU Protection Policy (CPP) Support
Network Foundation Protection Policy (NFPP): Support

IP

IPv4: Support Static and DHCP IP Address
Support Multicast to Unicast Conversion
DHCP Service: Support DHCP Snooping, Option 82, Server, Client

Operation & Management

Support Wireless LAN Controllers:
Ruijie RG-WS Series Wireless Controller
Ruijie Cloud (Public Cloud)
Ruijie Private Cloud
Management Protocol: Telnet, SSH, TFTP, FTP, Web
Wireless Intelligent AI Optimization Service (WIS): Support
SNMP: Support V1, V2c, V3
Syslog / Debug: Support
FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud Managed (Ruijie Public/Private Cloud) Management

ประกัน

3 ปี
