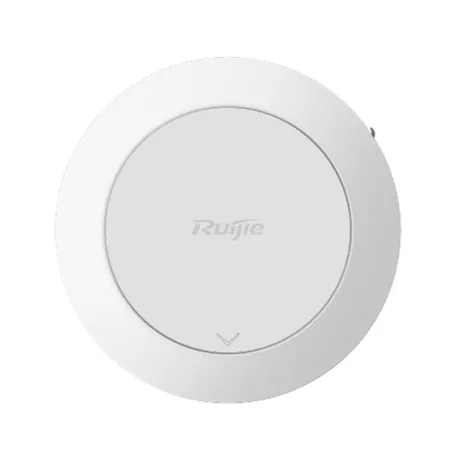

    Ruijie RG-AP880-I Wireless Access Point AX WIFI 6, 5.95Gbps Port Gigabit, Cloud Control

    Ruijie Networks

    Ruijie RG-AP880-I Wireless Access Point AX WIFI 6 ความเร็ว 5.95Gbps Dual-Band 8x8 MU-MIMO, Port Lan Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control


    ทักทาง Line@ สอบถามราคาพิเศษได้เลยครับ

    Line: @sysnet

    Click โทรสอบถามข้อมูลเพิ่มเติม

    Review ระบบ Controller Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

    Ruijie RG-AP880-I Wireless Access Point Datasheet
    WiFi6 (802.11ax) Technology White Paper

    Tolly220111 Ruijie WiFi6 Access Points Performance

    Ruijie RG-WLAN Series Access Points RGOS Configuration Guide
    Ruijie RG-WLAN Series Access Points Web-based Configuration Guide

    Ruijie RG-WLAN Series Access Points RGOS Command Reference

    Product Specification


    Ruijie RG-AP880-I Wireless Access Point AX WIFI 6 ความเร็ว 5.95Gbps Dual-Band 8x8 MU-MIMO, Port Lan Gigabit, รองรับการ Control แบบ Stanalone, Free Cloud Control, Hardware Control

    รองรับการทำ Authenticate แบบ Captive Portal, Social Login

    พร้อม Ruijie Cloud License แบบ Lifetime


    Dual-radio dual-band(2.4G+5G):2.4G 4×4 MIMO + 5G 8×8 MIMO


    Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac

    Operating Bands

    802.11b/g/n :2.4G ~ 2.483GHz
    802.11a/n/ac/ax : 5.150 ~ 5.350GHz,5.47 ~ 5.725GHz,5.725 ~ 5.850GHz (vary depending on different countries)

    Spatial Streams

    Up to 12: 4×4:4 in 2.4GHz , 8×8:8 in 5GHz

    Max Throughput

    Maximum throughput of 2.4G: 1.15Gbps

    Maximum throughput of 5G: 4.8Gbps

    Maximum throughput per AP: 5.95Gbps


    DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
    MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM
    OFDMA (up to 1024-QAM)

    Receiver Sensitivity

    11b:-96dBm (1Mbps),-93dBm (5Mbps) ,-89dBm  (11Mbps)
    11a/g:-91dBm (6Mbps),-85dBm (24Mbps) ,-80dBm (36Mbps) ,-74dBm (54Mbps)
    11n:-90dBm (MCS0) ,-70dBm (MCS7) ,-89dBm (MCS8) ,-68dBm (MCS15)
    11ac HT20:-88dBm (MCS0) , -63dBm (MCS9)
    11ac HT40:-85dBm (MCS0) , -60dBm (MCS9)
    11ac HT80:-82dBm (MCS0) , -57dBm (MCS9)
    11ax HT80:-82dBm (MCS0) , -57dBm (MCS9) , -52dBm (MCS11)


    Integrated antenna design (5th gen X-Sense patent smart antenna)

    Antenna Gain

    2.4G: 3dBi
    5G: 3dBi

    Service Ports

    1 100M/1000M/2.5G/5G/10G Base-T (PoE In), 1 10G SFP+, 1 10/100/1000M Base-T ports (PoE In), 1 10/100/1000M Base-T ports (LAN/IoT Expansion)

    Management Port

    1 console port


    1 USB 2.0 port

    IoT Capability


    Reset Button


    Anti-theft Lock


    LED Indicator

    1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.)

    Transmit Power

    ≤100mw (20dBm)  (vary depending on different countries)

    Adjustable Power


    Power Supply

    Local power supply ( DC 48V/1A)  (Power adapters are sold separately)
    PoE+ (802.3at)
    PoE (802.3af) –device cannot power up

    Power Consumption



    Operating Temperature: -10°C to 45°C

    Storage Temperature: -40°C to 70°C


    Operating Humidity: 5% to 95% (non-condensing)

    Storage Humidity: 5% to 95% (non-condensing)

    Installation Mode


    Dimensions (W x D x H)

    220mm ×220mm x48.85mm(Height of the AP only, excluding the mount kit)


    AP 3.05Kg, Mount Kit 0.2Kg

    IP Rating


    Safety Standard

    GB4943, EN/IEC 60950-1

    EMC Standard

    GB9254, EN301 489

    Health Standard

    EN 62311

    Radio Standard

    SRRC, EN300 328, EN301 893

    Wi-Fi Alliance

    Wi-Fi CERTIFIED™ a, b, g, n, ac, ax

    Maximum clients per AP


    Recommended clients per AP


    BSSID capacity

    Up to 32

    SSID hiding


    5G Priority (Band Steering)


    Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID


    Remote Intelligent Perception Technology (RIPT)


    Intelligent device recognition technology


    Intelligent load balancing based on the number of users or traffic


    STA control


    Bandwidth control

    STA/SSID/AP-based bandwidth control

    Data encryption

    WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64/128 bits)

    PSK and web authentication


    PPSK authentication (For Employee)

    Support (require wireless controller)

    802.1x authentication


    PEAP authentication


    Data frame filtering

    Whitelist, static/dynamic blacklist

    User isolation


    Rogue AP detection and countermeasure


    Dynamic ACL assignment




    CPU Protection Policy (CPP)


    Network Foundation Protection Policy (NFPP)


    IPv4 and IPv6 address


    Multicast routing

    Multicast to unicast conversion

    DHCP service

    DHCP Snooping, Option 82, Server, Client

    Supported wireless LAN controllers

    Ruijie WS Series Wireless Controller
    Ruijie MACC-Base Software Controller
    Ruijie Cloud (Public Cloud)

    Management protocol

    Telnet, SSH, TFTP, Web

    Wireless Intelligent AI Optimization Service (WIS)




    Syslog / Debug


    FAT/FIT/MACC mode switching

    Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management


    3 ปี

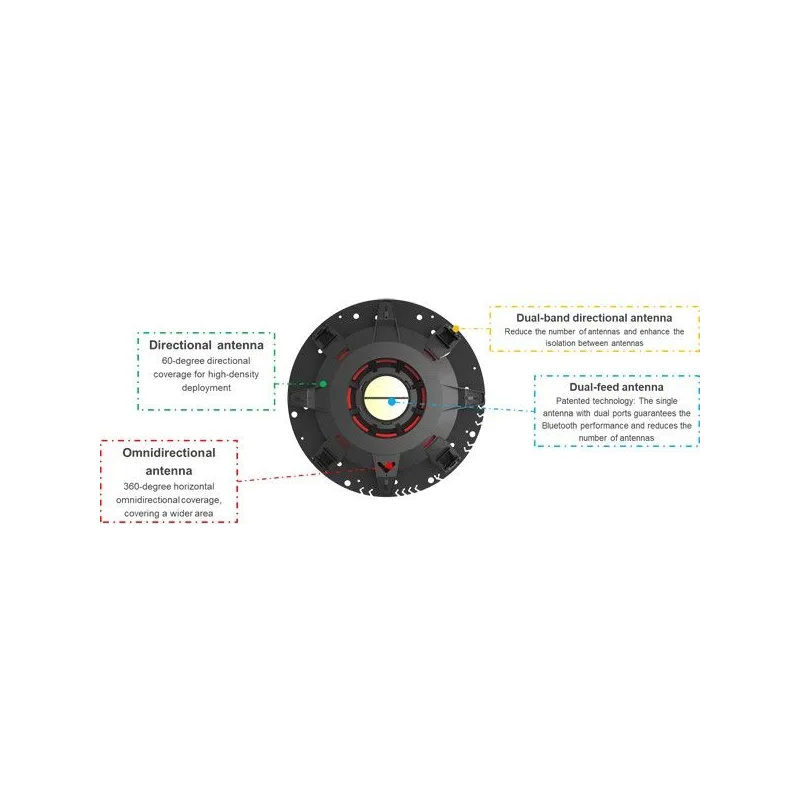

    New 5th gen X-Sense Smart Antenna

    Powered by Ruijie patent smart antenna technology – the 5th gen X-Sense, the RG-AP880-I built-in with 18 integrated antenna arrays, the AP supports intelligent algorithm switching to realize automatic switching between ordinary 360° zero-dead-zone coverage and high-density deployment scenario.


    Stacked ultra-high-density antenna design: Built-in with 18 integrated antenna arrays, guarantees 360°coverage

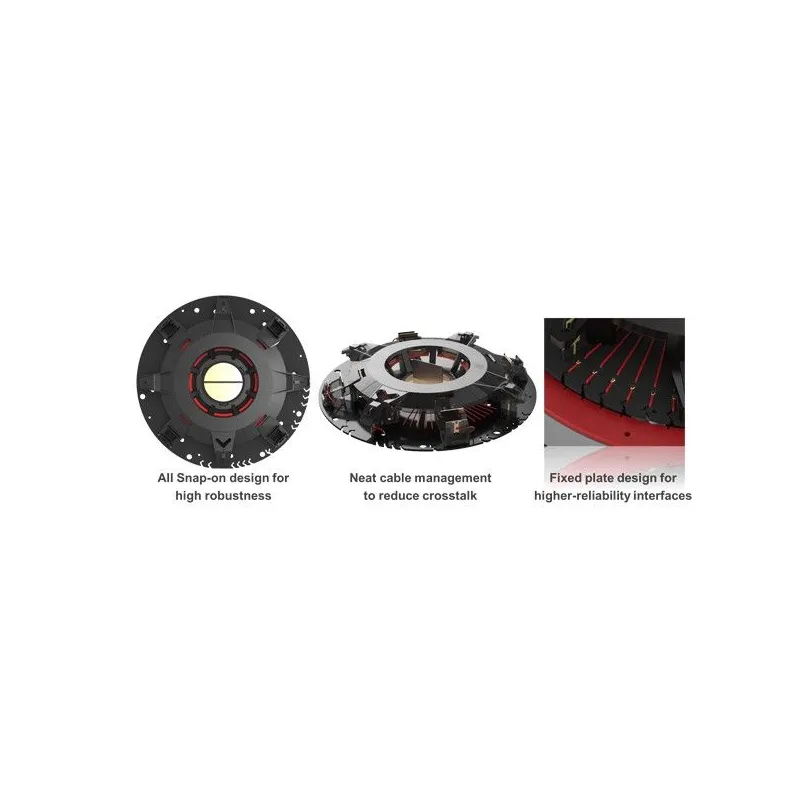

    High-reliability antenna design: All-in-one Snap-on design for improved antenna reliability


    Industrial-grade Reliability Design

    Ruijie RG-AP880-I is designed for scenarios demand for 24x7 operation with high utilization usage. To maximize the equipment stability, the RG-AP880-I upper and lower metal interlayer design of the AP effectively solves the problem of heat dissipation and electromagnetic interference, and ensures product reliability. Plus the IP41 protection rating and Dual-PoE design, the RG-AP880-I is highly recommended for any extreme working environments.


    Multi-level Reliability Design

    High Scalability Design

    With the design of 4 Ethernet ports, the RG-AP880-I provide totally 22G wired access capacity, including two 10G Ethernet Uplink Port (1 Copper and 1 Fiber), one Gigabit Uplink, and one Gigabit LAN port for external IoT sensor connection with PoE out (passive) feature. The RG-AP880-I support dual-port power supply redundancy design for high availability, guarantee for zero service impact even any uplink port failure.

    Additionally, the RG-AP880-I is IoT ready enabled by the built-in BLE module, without the need of external module and extra investment.


    RG-AP880-I built-in with 4 Ethernet ports (Dual 10G + 1G Uplink + 1G Downlink/IoT Sensor)

    Wi-Fi 6 Technology

    ● 1024-QAM High-speed Access

    The RG-AP840-I adopts the dual-radio dual-band design and 2G+5G is recommended. With the next-generation 802.11ax for 5G, the maximum access rate can reach 4.8Gbps. If dual-radio is enabled concurrently, the high-speed Wi-Fi can reach 5.2Gbps, offering the true high-speed experience.

    ● OFDMA High-density User Access

    The RG-AP840-I supports OFDMA of 802.11ax, which divides the WLAN channel into a plurality of narrower subchannels, with each user occupying one or more subchannels. By scheduling multiple users to receive and send packets concurrently via the AP, user competition and back-off can be reduced, thereby reducing network latency and improving network efficiency. In a high-density deployment environment, the average rate per user is increased to four times of 802.11ac.

    ● Bi-Directional MU-MIMO

    Compared with the previous Wi-Fi 5 (802.11ac) with only downlink MU-MIMO support, Wi-Fi 6 supports both uplink and downlink MU-MIMO(multi-user, multiple-input and multiple-output). Therefore, Ruijie RG-AP800 Series access points can connect clients simultaneously, significantly improving the wireless performance and experience.

    ● TWT(Target Wake Time)

    Target wake time (TWT) is used to help minimize contention between clients and reduce the amount of time a client in power save mode to be awake. Energy consumption is reduced by up to 70% of the battery consumption, thereby improving battery life.

    ● Spatial Reuse with BSS Color

    The RG-AP840-I supports spatial reuse with basic service set (BSS) color of 802.11ax to identify the BSSs of different WLANs in the network by different coloring (BSS color), and further divide them into internal and external BSS. Different packet receiving and sending thresholds can be maintained. When receiving packets, BSS coloring is used to quickly identify the packet of the external BSS. If the signal strength is lower than the receiving threshold of the external BSS, the packet will be ignored. The transmission of the internal BSS packet will be not affected. This technology can implement channel reuse in a high-density scenario, greatly reducing the impact of co-channel interference for the actual network deployment.

    Wi-Fi 6 Equipment For All Scenarios:

    Always One Option Fit For You

    Ruijie is one of the leading enterprise networking suppliers worldwide and committed to providing the best Wi-Fi experience to our stakeholders. We are the first supplier to provide full-scenario Wi-Fi 6 access point solution in the market, ranging from indoor, wall plate to outdoor access points, guaranteeing perfect wireless experience in various situations.


    For details, please visit

    AI Wireless Optimization

    ● Seamless Integration with WIS Cloud


    WIS Cloud Smart Services Platform

    Ruijie WIS is an AI-based intelligent services platform designed for WiFi optimization on the cloud. Seamlessly integrated with Ruijie hardware AC on premise, it helps to streamline WiFi deployment planning, delivery testing as well as operation diagnosis. With WIS you can achieve:

    Cloud site survey for deployment planning

    Smart mobile apps for provisioning

    Visualize the user experience

    One-click WiFi optimization

    and it is FREE!


    Ruijie MOHO App for WiFi Testing

    As part of the Ruijie WIS solution, Ruijie MOHO is a mobile app designed to carry out WiFi testing at your fingertips. Comprehensive testing tools like collaborative test, speed test, multi-point test and etc. are available in the Ruijie MOHO app, which can be freely downloaded from the iOS App Store and Google Play.


    WISπ One-click Optimization

    Another key feature from Ruijie WIS is that WISπ provides one-click optimization by using the AI-based machine learning automated correlation based on the real-time information gathered from your WiFi network. It truly optimizes the entire WiFi network performance by providing the best suitable configuration fine-tuning by just a click. For more details, please visit Ruijie WIS official website at

    ● Industry-leading Local Forwarding Technology

    Employing an industry-leading local forwarding technology, the RG-AP840-I breaks through the limitation of traffic bottleneck of wireless controllers. In collaboration with the RG-WS Wireless Controller Series, users can flexibly pre-configure the data forwarding mode for RG-AP840-I. The AP also controls whether the data will be forwarded via the wireless controller according to the SSID or user VLAN, or directly sent to the wired network for data exchange.

    The local forwarding technology can classify and forward delay-sensitive data which requires real-time transmission through the wired network to greatly alleviate the traffic pressure on the wireless controllers and better meet the high traffic transmission requirements of the 802.11ax network.

    ● Abundant QoS Policies

    The RG-AP840-I supports a wide variety of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitations and Wi-Fi multimedia (WMM) which defines different priorities for different service data. The RG-AP840-I realizes timely and quantitative transmission of audio and video, and guarantees smooth operation of multi-media applications.

    With the multicast-to-unicast technology, the RG-AP840-I resolves the video lagging problem due to packet loss or high latency in the wireless network, and highly enhances user experience of the multicast video services of wireless network.

    Comprehensive Security Protection

    ● Secure User Access

    The RG-AP840-I supports a wide range of authentication methods such as web, 802.1x, PPSK (one-time dynamic password for staff), voucher/ access code, user account, and social authentication. Complying with the standard network access control, it offers a set of control policies in terms of user access, authorization, equipment compliance check, network behavior monitoring, network attack prevention, etc. All these control features guarantee high network security for authenticated users.


    Various enterprise authentication options for guests and employees

    ● Personal Pre-shared Keys (PPSK)

    PPSK Wireless Security

    Simple and Effective Wireless Security Practice

    Traditional Pre-shared Keys (PSK) are shared by all users on a WLAN, giving it potential risk of PSK leak-out.

    Ruijie Personal PSK (PPSK) is an easy-to-setup wireless authentication method with enterprise-grade security level. Credentials can be created and revoked individually. Each PPSK can also be tied to a unique user/ machine.

    With PPSK, you can enjoy the benefits of:

     High security by using different passwords for each user and device for individual SSID

     Simple deployment with batch account creation

     Ease of use, offering the same experience as WPA / WPA2-PSK

     Out-of-box feature in AC

     No additional AAA required

    ● Virtual AP Technology

    With the virtual AP technology, the RG-AP840-I supports up to 48 ESSIDs. Network administrator can separately encrypt and isolate VLANs or subnets of the same SSID, thereby enabling specified authentication mode and encryption mechanism for each SSID.

    ● Comprehensive Wireless Protection

    Coupled with RG-WS6000 Series or RG-MACC Wireless Controllers, the RG-AP840-I offers a breadth of security features including WIDS (Wireless Intrusion Detection System), RF interference tracking, rogue AP containment, anti-ARP spoofing, DHCP protection and beyond for all-around security protection.

    Hybrid Management

    ● Flexible Management Options

    All Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit and MACC mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of below wireless controller options depending on the functionality and capacity:


    Below are the summarized feature highlights for various Ruijie management system options which target for specific industry segments:


    *new feature to be available in year 2020

    **Ruijie EG Gateway required

    ● Web and CLI Management Interface

    The RG-AP840-I provides both web and command-line interface (CLI) for the AP and wireless controller, suitable for application in different scenarios. CLI design allows the networking professionals to perform fast troubleshooting, bulk configuration import or modification. Web GUI mangaement should be perfect for the majority of general scenarios to plan, operate and maintain the wireless network without the need of customization.

    ● Mobile Monitoring and Optimizing

    Ruijie is committed to providing more simple networking experience for customers by launching a free mobile app  (namely Ruijie Cloud) for unified device lifecycle managmeent, which is not only for Ruijie access points, but also for switches and security gateways, from provisioning, monitoring, configurations to optimization. For details, please visit our official website at


    Warranty Information

    The Ruijie RG-AP880-I Access Point come with 3 year warranty or extended as limited lifetime warranty  that provides full warranty coverage of hardware for as long as the original end user continues to own or use the product before the end of life of the product. The warranty includes free hardware maintenance and remote technical support for any software problem. For more details, please visit

    Antenna Patterns

    Horizontal planes (top view)

    Below are the RG-AP880-I 2.4GHz and 5GHz azimuth antenna patterns:


    RG-AP880-I 2.4GHz (Left) and 5GHz (Right) Azimuth Antenna Patterns

    Vertical (elevation) planes (side view, AP facing down)

    Below are the RG-AP880-I 2.4GHz and 5GHz elevation antenna patterns:


    RG-AP880-I 2.4GHz (Left) and 5GHz (Right) Elevation Antenna Patterns



    Data sheet

    ลักษณะงาน Wireless
    กระจายสัญญาณ WIFI
    ความเร็ว Wireless
    WIFI-6 (802.11ax: 1.2Gbps+)
    Dual-Band 2.4/5GHz
    รองรับ Controller
    Cloud Controller, Hardware Controller
    รองรับ POE

    ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

    Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

    Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

    Ruijie Cloud: Perfect Network Solution For SME

    Ruijie Cloud Site Survey Planner (SSP) Overview

    Ruijie AP Quick Provisioning

    Ruijie Cloud Deployment Quick Start

    ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie vs Reyee


    Ruijie Enterprise


    Ruijie Cloud



    Mobile App



    Presales Tools



    Fast Provisioning

    QR-code Device Scan/ Cloud Config Sync

    Self-organizing network (SON)

    Monitoring & Alarm



    Device Management

    RRM, Web CLI, Configuration Mgmt (Backup/Restore)


    Gateway Management

    L7 DPI Analysis
    WAN Load Balancing
    App Cache






    Config Wizard


    Support (App)



    Wi-Fi4 /5 /5 Wave2 / 6

    Wi-Fi 5 Wave2 , 6 (Roadmap)


    Max Client 1024 (Wi-Fi 6)

    Max Client 128

    WLAN Auth

    802.1x Auth
    PPSK, Voucher, Account, Facebook, SMS OTP

    BasicPortal (Reyee Gateway)

    WLAN Features

    Adv CLI script configuration
    WIDS(Rogue AP detection)
    WirelessRadio Analytics (RRM)
    Location tracking (LBS)
    Bluetooth (BLE) support
    Speed Limit Per Client
    Speed Limit Per SSID


    WLAN Controller


    RG-WS6000 Series (upto 6400 AP)

    RG-NBC Series (up to 500 AP)



    Chassis model option (upto 48 10GE)

    Box Switches model (upto 24GE +10G uplink)


    IGMP Snooping, MSTP, LACP VLAN, Link Aggregate, SuperVlan, VoiceVlan, ACL

    Link Aggregate




    Security / Availability

    802.1x, CPP/NFPP, REUP, VSU



    Managed with Web & CLI (Console port), SSH, SNMP

    Web Smart Managed & Unmanaged
