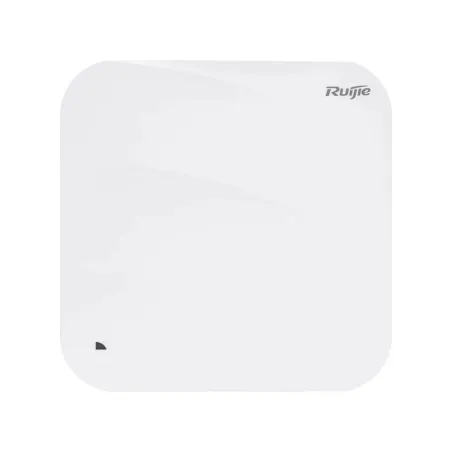

RG-AP880-L Product Specifications
|
| Overview |
Ruijie RG-AP880-L Wireless Access Point WIFI6E Tri-Band มาตรฐาน ax, 4x4 MIMO, ความเร็วสูงสุด 7.78Gbps, Port Lan 1/2.5/5Gbps, SFP 5Gbps, Standalone/Ruijie Cloud Control
|
Dimensions and Weight
|
|
Unit dimensions(W x D x H)
|
230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.)
|
|
Shipping dimensions(W x D x H)
|
284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.)
|
|
Unit weight
|
Main unit: 1.0 kg (2.20 lbs)
Mounting bracket: 0.1 kg (0.22 lbs)
|
|
Shipping weight
|
1.25 kg (2.76 lbs)
|
|
Mounting
|
Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)
|
|
Lock option
|
Kensington lock and securing latch
|
Wi-Fi Radio
|
|
Radio design
|
Tri-radio and up to eight spatial streams:
Radio 1: 2.4GHz: Two spatial streams, 2x2 MU-MIMO
Radio 2: 5GHz: Two spatial streams, 2x2 MU-MIMO
Radio 3: 6GHz: Four spatial streams, 4x4 MU-MIMO
|
|
Operating frequencies
|
Radio 1: 802.11b/g/n/ax
2.400 GHz to 2.483 GHz, channels 1 to 13
Radio 2: 802.11a/n/ac/ax
5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48
5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64
5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140
5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165
Radio 3: 802.11ax
5.925 GHz to 7.125 GHz, U-NII-4, channels 1 to 233
Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.
|
|
Data rates
|
Combined peak data rate: 7.780 Gbps
Radio 1: 2.4 GHz, 574 Mbps
Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to 2SS HE40 802.11ax client devices (maximum)
Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to 2SS HE20 802.11ax client devices (typical)
Radio 2: 5 GHz, 2.402 Gbps
Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (maximum)
Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)
Radio 3: 6 GHz, 4.804 Gbps
Four spatial stream Single User (SU) MIMO for up to 4.804 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (maximum)
Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)
Four spatial stream Multi User (MU) MIMO for up to 4.804 Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (maximum)
Four spatial stream Multi User (MU) MIMO for up to 2.402 Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
|
|
Data rate set
|
The following 802.11-compliant data rates in Mbps are supported
2.4 GHz
802.11b: 1, 2, 5.5, 11
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
5 GHz
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MVC31, HT20 to HT40)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)
802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

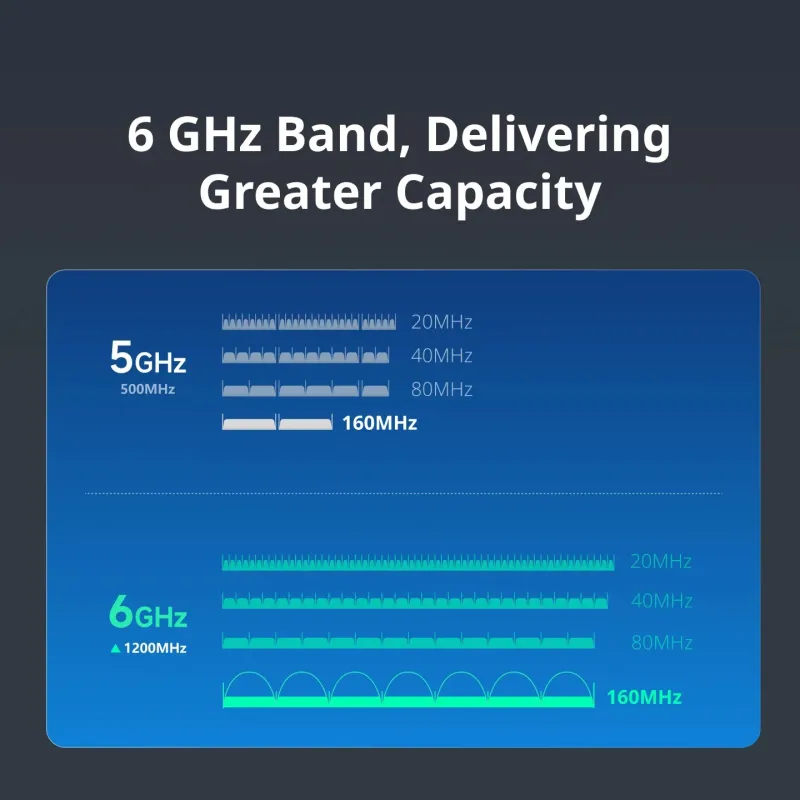

6 GHz
802.11ax：8.6 ~ 4,804 (MCS0 ~ MCS11, NSS = 1 to 4, HE20 to HE160)
|
|
Packet aggregation
|
802.11n/ac/ax: A-MPDU and A-MSDU
|
|
Antenna type
|
Built-in omnidirectional antennas (two 2.4 GHz antennas, two 5 GHz antennas and four 6 GHz antennas)
|
|
Antenna gain
|
2.4 GHz: 5 dBi
5 GHz: 5 dBi
6 GHz: 5 dBi
|
|
Maximum transmit power
|
2.4 GHz: 27 dBm (24dBm per chain)
5 GHz: 26 dBm (23dBm per chain)
6 GHz: 26 dBm (23dBm per chain)
Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Thailand
2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm
5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm
5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm
5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm
5.945 GHz to 6.425 GHz, EIRP ≤ 23 dBm
|
|
Power increment
|
Configurable in increments of 1 dBm
|
|
Radio technologies
|
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
|
|
Modulation types
|
802.11b: BPSK, QPSK, and CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM
|
Bluetooth Radio
|
|
Bluetooth
|
Bluetooth 5.1
|
|
Antenna type
|
Integrated vertically polarized omnidirectional antenna
|
|
Maximum antenna gain
|
4.6 dBi, with roughly 30 degrees downtilt
|
|
Maximum transmit power
|
10 dBm (Class 1)
|
|
Receive sensitivity
|
-98 dBm
|

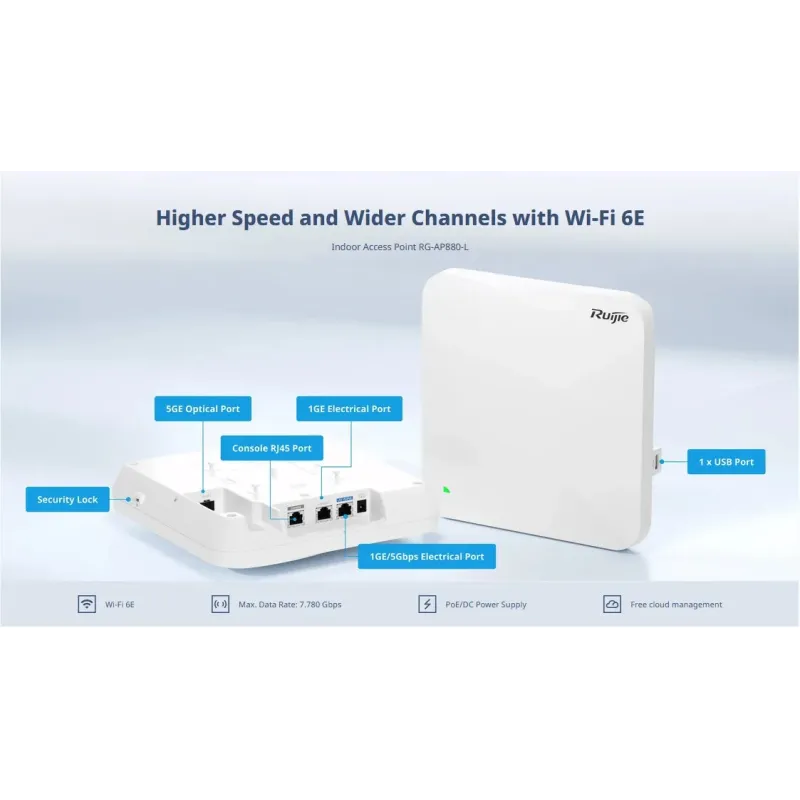

Port Specifications
|
|
Fixed service port
|
1 x 100/1000/2.5G/5GBASE-T port
Auto MDI/MDIX crossover
NBASE-T/IEEE802.3bz-compliant 5 Gbps
PoE-PD: 54 V DC (nominal) 802.3af/at/bt（Class 3 or higher）
802.3az EEE
1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules
1 x 10/100/1000BASE-T port
Supplying 48 V/12.95 W power to an IoT unit
Auto MDI/MDIX crossover
802.3az EEE
|
|
Fixed management port
|
1 x RJ45 console port (serial console port)
|
|
USB
|
USB 3.0 (Type-A connector)
|
|
Status LED
|
1 x multi-color system status LED
|
|
Button
|
1 x Reset button
Press the button for shorter than 2 seconds. Then the device restarts.
Press the button for longer than 5 seconds. Then the device restores to factory settings.
|
Power Supply and Consumption
|
|
Input power supply
|
The AP supports the following two power supply modes:
54 V DC/1.1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter is delivered with the main unit.
PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).
Note:
If both DC power and PoE are available, DC power is preferred.
When powered by 802.3bt (PoE++), the AP operates with the optimal performance.
When powered by 802.3at (PoE+), the AP starts up normally. LAN 2 and USB port cannot supply power to external devices.
When powered by 802.3af (PoE), the AP starts up normally. 2.4 GHz, 5 GHz and 6 GHz radio cards can work only in one spatial stream mode . LAN 2 and USB port cannot supply power to external devices.
|
|
PoE port
|
When powered by 802.3bt (PoE++), the LAN 2 port can source 48 V/12.95 W power to an IoT unit.
|
|
USB port
|
When powered by 802.3bt (PoE++), the USB port can source 1 A/5 W power to an attached device.
|
|
Overall power consumption
|
Maximum power consumption: 40 W
DC powered: 40 W
PoE powered (802.3af): 12.95 W
PoE+ powered (802.3at): 23 W
PoE++ powered (802.3bt): 40 W
Idle mode: 10.3 W
|
Environment and Reliability
|
|
Temperature
|
Operating temperature: -10°C to 50°C (14°F to 122°F)
Storage temperature: -40°C to 70°C (-40°F to +158°F)
Note: At an altitude in the range of 3,000-5,000 m (9,842.52-16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
|
|
Humidity
|
Operating humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
|
|
Environment standard
|
Storage and shipment environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995
|
|
Mean Time Between Failure (MTBF)
|
394,941 hours (45 years) at the operating temperature of 25°C (77°F)
|
Regulatory Compliance
|
|
Regulatory compliance
|
EN 55032
EN 55035
EN 61000-3-3
EN IEC 61000-3-2
EN 301 489-1
EN 301 489-3
EN 301 489-17
EN 300 328
EN 301 893
EN 300 440
FCC Part 15
EN IEC 62311
IEC 62368-1
EN 62368-1
|
Applicable Software Version
|
|
Applicable software version
|
RGOS11.9(6)W3B4 or higher
|
WLAN
|
|
Recommended maximum number of active devices per AP
|
300
|
|
Maximum number of associated clients
|
1536
Note
The number of associated clients varies according to the environment.
|
|
Maximum number of BSSIDs
|
45 (up to 15 BSSIDs per radio)
|
|
STA management
|
SSID hiding
Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.
Remote intelligent perception technology (RIPT)
Intelligent client identification technology
Intelligent load balancing based on the STA quantity or traffic
|
|
STA limiting
|
SSID-based STA limiting
Radio-based STA limiting
|
|
Bandwidth limiting
|
STA/SSID/AP-based rate limiting
|
|
Wireless roaming
|
Layer 2 and Layer 3 roaming
|
Security
|
|
Authentication and encryption
|
Remote Authentication Dial-In User Service (RADIUS)
PSK and web authentication
QR code-based guest authentication, SMS authentication, MAB authentication (used with the RG-WS series wireless access controller)
WPA (TKIP), WPA-PSK, WPA2, WEP (64/128-bit)
|
|
Data frame filtering
|
Allowlist, static blocklist, and dynamic blocklist
|
|
ACL
|
Dynamic ACL assignment
|
|
CPP
|
Supported
|
|
NFPP
|
Supported
|
Routing and Switching
|
|
IP service
|
Static IPv4 address and DHCP-assigned IPv4 address
NAT, FTP ALG, DNS ALG
|
|
Multicast
|
Multicast-to-unicast conversion
|
|
IPv6 basics
|
IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping
IPv6 DHCP Client
|
|
IP routing
|
IPv4/IPv6 static routing
|
|
VPN
|
PPPoE Client
IPsec VPN
|
Management
|
|
Network management
|
Fault inspection and alarm
Information statistics and logging
SNMPv1/v2c/v3
NTP Server and NTP Client
|
|
Network management platform
|
Web-based management (Eweb)
|
|
User access management
|
Console, Telnet, SSH, SNMP and TFTP-based management
|
|
Fat/Fit/Cloud mode switchover
|
When the AP works in Fit mode, it can be switched to Fat mode through an AC.
When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.
When the AP works in Cloud mode, it can be managed through Ruijie Cloud.
|
