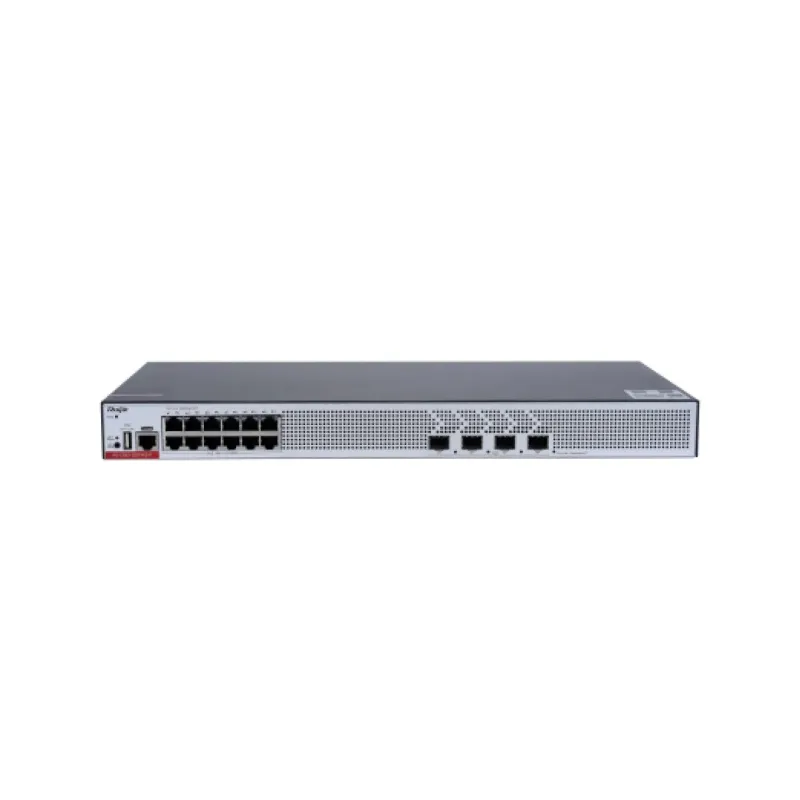

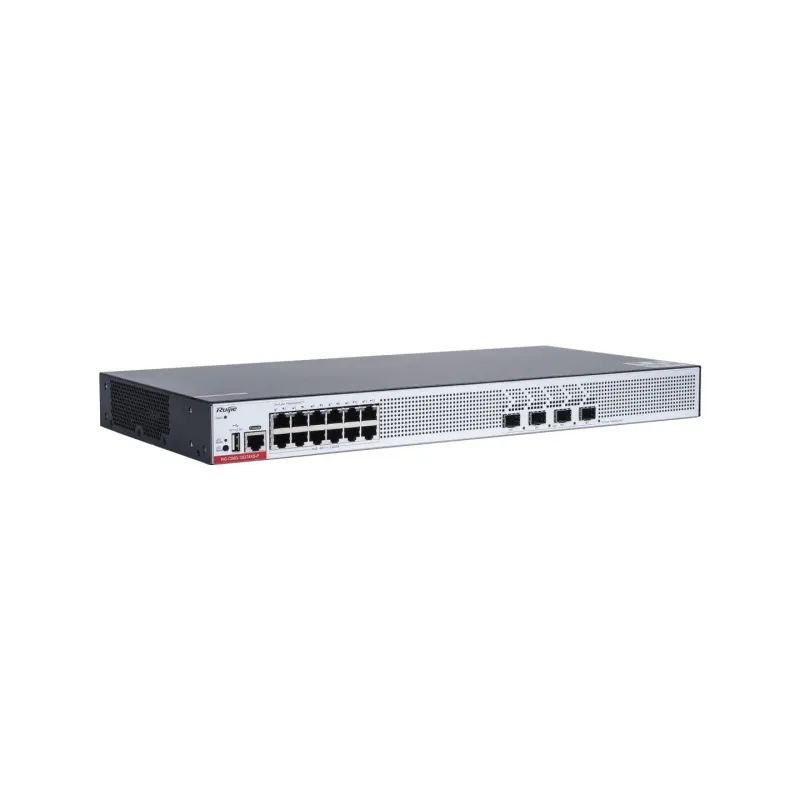

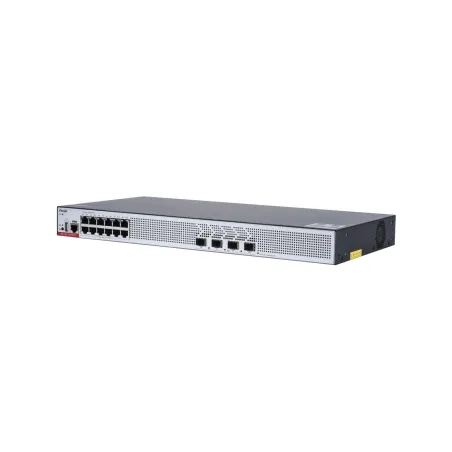

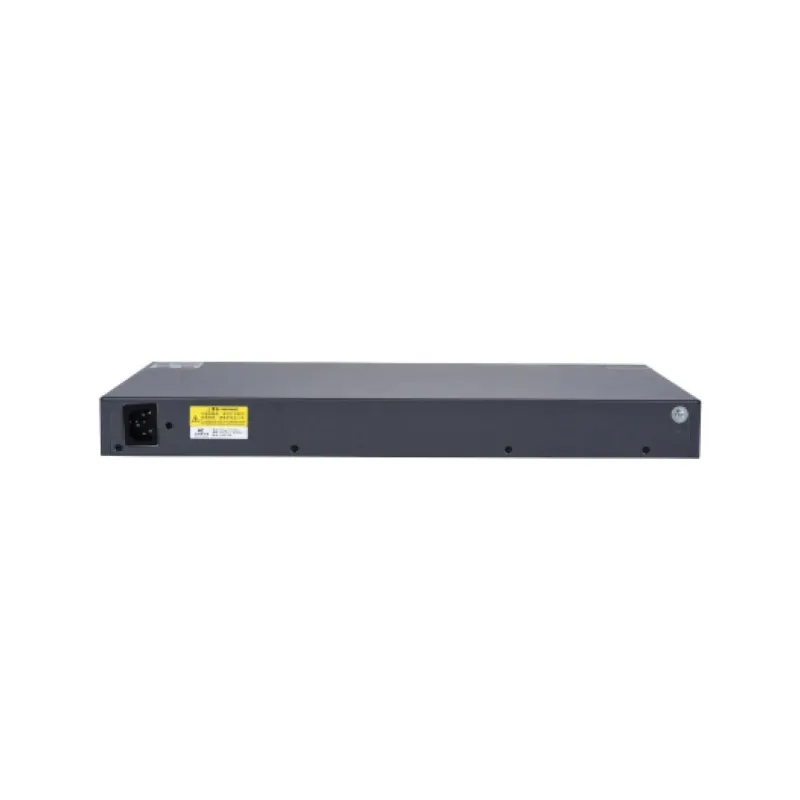

Ruijie RG-CS83-12GT4XS-P L3-Managed POE Switch 12-Port, 4 Port SFP+, POE

Product Specification

Overview

Ruijie RG-CS83-48GT4XS-P L3 Managed POE Switch 48-Port Gigabit, 4 Port SFP+ ความเร็ว 10Gbps

รองรับ Dynamic Routing OSPF, RIP
Surge protection 6kV
POE มาตรฐาน af/at  สูงสุด 470W
รองรับการ Managed ผ่าน Ruijie Cloud

Hardware Specifications

RG-CS83-12GT4XS-P

Fixed ports

12 x 100M/1000M  BASE-T ports
4 x 1GE/10GE SFP+ ports support POE+

Fan module

1 x fixed fan module

Power module

1 x fixed power module

Fixed management port

1 x console, and 1 x USB 2.0 port

Packet forwarding rate

78 Mpps

Switching capacity

104 Gbps

System Switching capacity

336 Gbps

MAC address table size

16000

ARP table size

4,000

Number of IPv4 multicast routes

6,000

Number of IPv4 unicast routes

4,000

Number of IPv6 multicast routes

750

Number of IPv6 unicast routes

2,000

Number of ACEs

Ingress: 1,750
Egress: 800

Number of VSU members

4

Dimensions and Weight

Dimensions and Weight

Dimensions (W x D x H)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

 Weight

3 kg (6.61 lbs)

CPU and Storage

CPU

1.0 GHz dual-core CPU

Flash memory

512 MB

BootROM

16 MB

SDRAM

1 GB

Data packet buffer

4 MB

Power and Consumption

Maximum power consumption

< 35 W (non-PoE)
< 405 W (PoE full load)

Maximum output power

409 W Maximum  PoE output :370W

Rated input voltage

100 V AC to 240 V AC

Maximum input voltage

90 V AC to 264 V AC, 50 Hz to 60 Hz

Environment and Reliability

MTBF

24.14 years

Primary airflow

Front-to-right and left-to-right airflow Natural heat dissipation for fanless design

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

10% to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Operating noise

27℃: < 35 dB

Interface surge protection

Power port: 6 kV(common mode)/8 kV (differential mode)
Communication port: 10 kV

Hardware Specifications

RG-CS83-48GT4XS-P

Fixed ports

48 x 100M/1000M BASE-T ports
4 x 1GE/10GE SFP+ ports support POE+

Fan module

1 x fixed fan module

Power module

1 x fixed power module

Fixed management port

1 x console, and 1 x USB 2.0 port

Packet forwarding rate

132 Mpps

Switching capacity

176 Gbps

System Switching capacity

432 Gbps

MAC address table size

16000

ARP table size

4,000

Number of IPv4 multicast routes

6,000

Number of IPv4 unicast routes

4,000

Number of IPv6 multicast routes

750

Number of IPv6 unicast routes

2,000

Number of ACEs

Ingress: 1,750
Egress: 800

Number of VSU members

4

Dimensions and Weight

Dimensions and Weight

Dimensions (W x D x H)

442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)

 Weight

3.75 kg (8.27 lbs)

CPU and Storage

CPU

1.0 GHz dual-core CPU

Flash memory

512 MB

BootROM

16 MB

SDRAM

1 GB

Data packet buffer

4 MB

Power and Consumption

Maximum power consumption

< 52 W (non-PoE)
< 460 W (PoE full load)

Maximum output power

460 W Maximum  PoE output :405W

Rated input voltage

100 V AC to 240 V AC

Maximum input voltage

90 V AC to 264 V AC, 50 Hz to 60 Hz

Environment and Reliability

MTBF

22.86 years

Primary airflow

Front-to-right and left-to-right airflow Natural heat dissipation for fanless design

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

10% to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Operating noise

27℃: < 35 dB

Interface surge protection

Power port: 6 kV(common mode)/8 kV (differential mode) Communication port: 10 kV

Feature

Description

Ethernet switching

Jumbo frame (maximum length: 9,216 bytes)

IEEE 802.1Q (4K VLANs)

Voice VLAN

Super-VLAN and private VLAN

MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN

GVRP

Basic QinQSelective QinQ

STP, RSTP, and MSTP

ERPS (G.8032)

LLDP/LLDP-MED

IP service

ARP

DHCP client, DHCP relay, and DHCP server

DHCP snooping

DNS

DHCPv6 client, DHCPv6 relay, and DHCPv6 server

DHCPv6 snooping

Neighbor Discovery (ND) and ND snooping

IP routing

Static routing

RIP and RIPng

OSPFv2 and OSPFv3

IPv4 and IPv6 VRF

IPv4 and IPv6 PBR

Multicast

IGMP v1/v2/v3, and IGMP proxy

IGMP v1/v2 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP

MLD v1/v2

MLD snooping v1/v2

PIM-SMv6 and PIM-SSM v6

ACL and QoS

Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL

ACL redirection

Traffic rate limiting on an interface

Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ

Congestion avoidance: tail drop

802.1p/DSCP/ToS traffic classification
Eight priority queues per interface

Security

Multiple AAA modes

RADIUS and TACAS+

Interface-based and MAC address-based 802.1x authentication

Web authentication

HTTPS

SSHv1 and SSHv2

Global IP-MAC binding

Port isolation and port security

IP source guard

SAVI

CPP and NFPP

Reliability

REUP, RLDP, DLDP

IPv4 VRRP v2/v3 and IPv6 VRRP

BFD

Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)

Hot swapping of power modules and cables

Fan speed adjustment
Fan fault alarm

Device virtualization

Virtual Switching Unit (VSU)

NMS and maintenance

SPAN, RSPAN

sFlow

NTP and SNTP

FTP and TFTP

SNMP v1/v2/v3

RMON (1, 2, 3, 9)

NETCONF

CWMP (TR-069)

gRPC

Cloud and SON

PoE

RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at
Warm start Interface priority

ประกัน

3 ปี
