Product Specification |

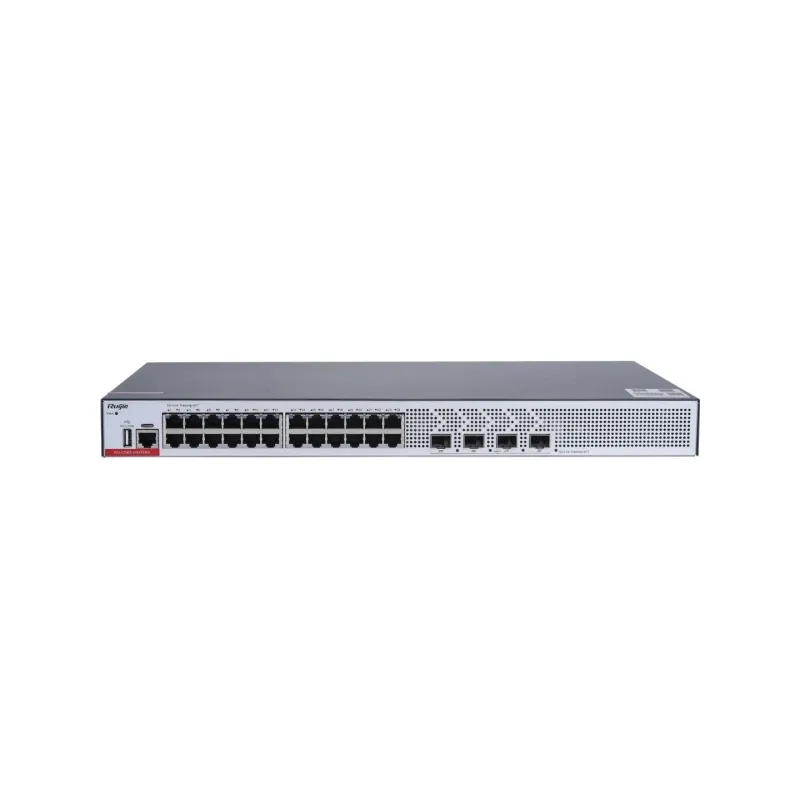

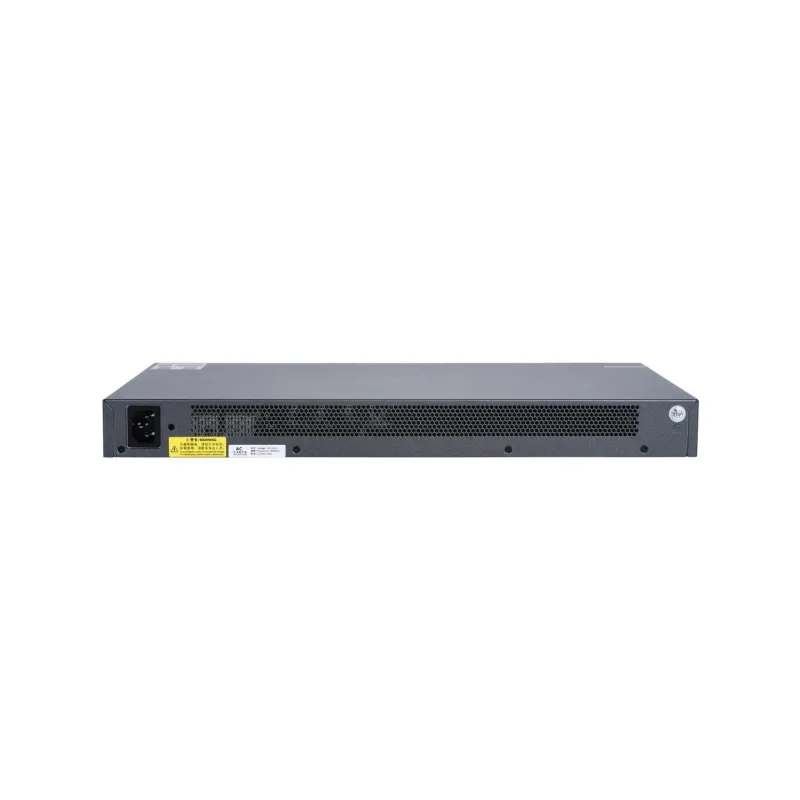

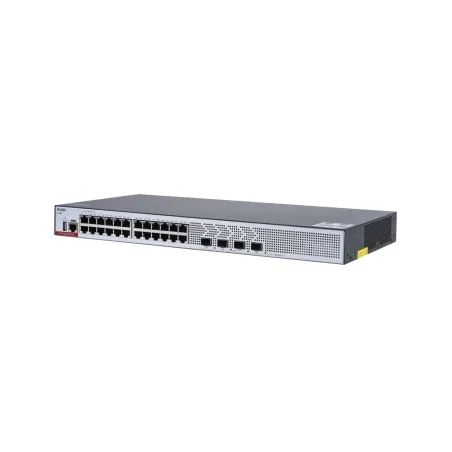

Overview | Ruijie RG-CS83-24GT4XS L3 Managed Switch 24-Port Gigabit, 4 Port SFP+ ความเร็ว 10Gbps รองรับ Dynamic Routing OSPF, RIP
Surge protection 6kV
รองรับการ Managed ผ่าน Ruijie Cloud
|
Hardware Specifications | RG-CS83-24GT4XS |
Fixed ports | 24 x 100M/1000M BASE-T ports
4 x 1GE/10GE SFP+ ports |
Fan module | No fan |
Power module | 1 x fixed power module |
Fixed management port | 1 x console, and 1 x USB 2.0 port |
Packet forwarding rate | 96 Mpps |
Switching capacity | 128 Gbps |
System Switching capacity | 336 Gbps |
MAC address table size | 16000 |
ARP table size | 4,000 |
Number of IPv4 multicast routes | 6,000 |
Number of IPv4 unicast routes | 4,000 |
Number of IPv6 multicast routes | 750 |
Number of IPv6 unicast routes | 2,000 |
Number of ACEs | Ingress: 1,750
Egress: 800 |
Number of VSU members | 4 |
Dimensions and Weight | |
Dimensions (W x D x H) | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
Weight | 3 kg (6.61 lbs) |
CPU and Storage | |
CPU | 1.0 GHz dual-core CPU |
Flash memory | 512 MB |
BootROM | 16 MB |
SDRAM | 1 GB |
Data packet buffer | 4 MB |
Power and Consumption | |
Maximum power consumption | < 25 W |
Maximum output power | 25 W |
Rated input voltage | 100 V AC to 240 V AC |
Maximum input voltage | 90 V AC to 264 V AC, 50 Hz to 60 Hz |
Environment and Reliability | |
MTBF | 23.74 years |
Primary airflow | Front-to-right and left-to-right airflow Natural heat dissipation for fanless design |
Operating temperature | 0°C to 45°C (32°F to 113°F) |
Storage temperature | –40°C to +70°C (–40°F to +158°F) |
Operating humidity | 10% to 90% RH (non-condensing) |
Storage humidity | 5% to 95% RH (non-condensing) |
Operating noise | 27℃: < 20 dB |
Interface surge protection | Power port: 6 kV(common mode)/6 kV (differential mode)
Communication port: 10 kV |
| Software Specifications |
Feature | Description |
Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
IEEE 802.1Q (4K VLANs) |
Voice VLAN |
Super-VLAN and private VLAN |
MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN |
GVRP |
Basic QinQ
Selective QinQ |
STP, RSTP, and MSTP |
ERPS (G.8032) |
LLDP/LLDP-MED |
IP service | ARP |
DHCP client, DHCP relay, and DHCP server |
DHCP snooping |
DNS |
DHCPv6 client, DHCPv6 relay, and DHCPv6 server |
DHCPv6 snooping |
Neighbor Discovery (ND) and ND snooping |
IP routing | Static routing |
RIP and RIPng |
OSPFv2 and OSPFv3 |
IPv4 and IPv6 VRF |
IPv4 and IPv6 PBR |
Multicast | IGMP v1/v2/v3, and IGMP proxy |
IGMP v1/v2 snooping |
PIM-DM, PIM-SM, and PIM-SSM |
MSDP |
MLD v1/v2 |
MLD snooping v1/v2 |
PIM-SMv6 and PIM-SSM v6 |
ACL and QoS | Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL |
ACL redirection |
Traffic rate limiting on an interface |
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
Congestion avoidance: tail drop |
802.1p/DSCP/ToS traffic classification Eight priority queues per interface |
Security | Multiple AAA modes |
RADIUS and TACAS+ |
Interface-based and MAC address-based 802.1x authentication |
Web authentication |
HTTPS |
SSHv1 and SSHv2 |
Global IP-MAC binding |
Port isolation and port security |
IP source guard |
SAVI |
CPP and NFPP |
Reliability | REUP, RLDP, DLDP |
IPv4 VRRP v2/v3 and IPv6 VRRP |
BFD |
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) |
Hot swapping of power modules and cables |
Fan speed adjustment
Fan fault alarm |
Device virtualization | Virtual Switching Unit (VSU) |
NMS and maintenance | SPAN, RSPAN |
sFlow |
NTP and SNTP |
FTP and TFTP |
SNMP v1/v2/v3 |
RMON (1, 2, 3, 9) |
NETCONF |
CWMP (TR-069) |
gRPC |
Cloud and SON |
PoE | RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at
Warm start Interface priority |
ประกัน | 3 ปี |
