| Product Specification |

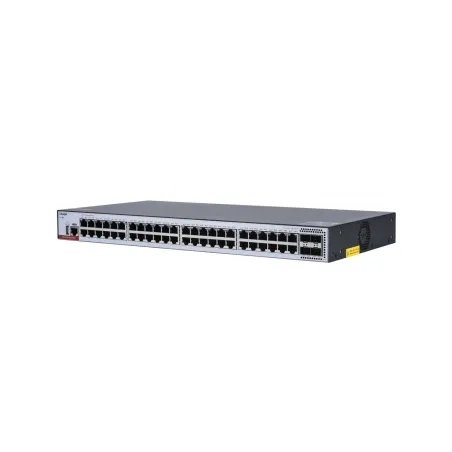

| Overview | Ruijie RG-CS83-48GT4XS L3 Managed Switch 48-Port Gigabit, 4 Port SFP+ ความเร็ว 10Gbps รองรับ Dynamic Routing OSPF, RIP
Surge protection 6kV
รองรับการ Managed ผ่าน Ruijie Cloud
|
| Hardware Specifications | RG-CS83-48GT4XS |

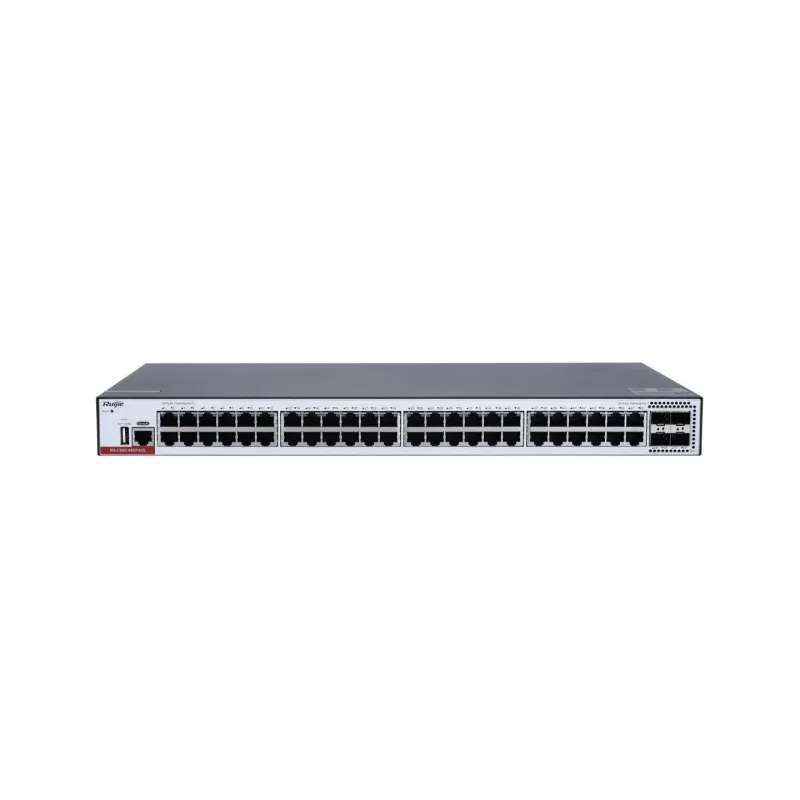

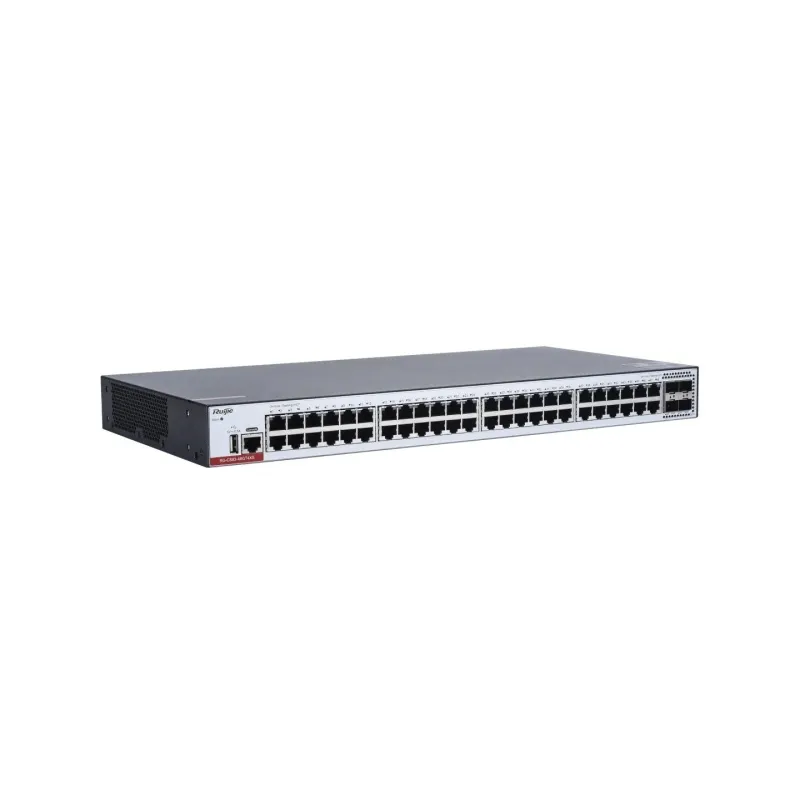

| Fixed ports | 48 x 100M/1000M BASE-T ports
4 x 1GE/10GE SFP+ ports |
| Fan module | 1 x fixed fan module |

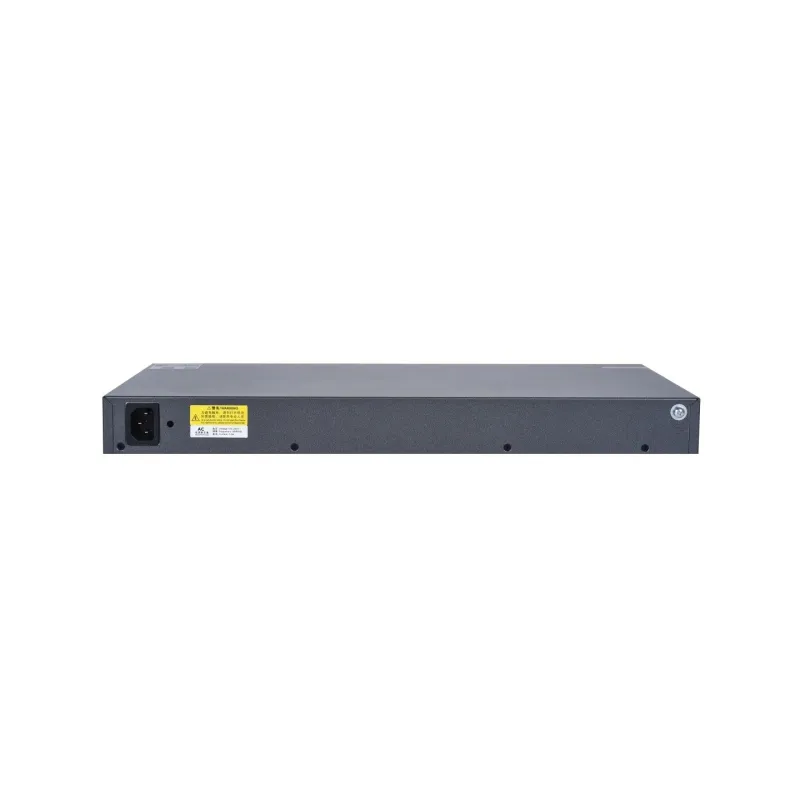

| Power module | 1 x fixed power module |
| Fixed management port | 1 x console, and 1 x USB 2.0 port |
| Packet forwarding rate | 96 Mpps |
| Switching capacity | 128 Gbps |
| System Switching capacity | 336 Gbps |
| MAC address table size | 16000 |
| ARP table size | 4,000 |
| Number of IPv4 multicast routes | 6,000 |
| Number of IPv4 unicast routes | 4,000 |
| Number of IPv6 multicast routes | 750 |
| Number of IPv6 unicast routes | 2,000 |
| Number of ACEs | Ingress: 1,750
Egress: 800 |
| Number of VSU members | 4 |
| Dimensions and Weight | Dimensions and Weight |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.) |
| Weight | 3 kg (6.61 lbs) |
| CPU and Storage | |
| CPU | 1.0 GHz dual-core CPU |
| Flash memory | 512 MB |
| BootROM | 16 MB |
| SDRAM | 1 GB |
| Data packet buffer | 4 MB |
| Power and Consumption | |
| Maximum power consumption | < 40 W |
| Maximum output power | 40 W |
| Rated input voltage | 100 V AC to 240 V AC |
| Maximum input voltage | 90 V AC to 264 V AC, 50 Hz to 60 Hz |
| Environment and Reliability | |
| MTBF | 23.85 years |
| Primary airflow | Front-to-right and left-to-right airflow Natural heat dissipation for fanless design |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Operating noise | 27℃: < 20 dB |
| Interface surge protection | Power port: 6 kV(common mode)/6 kV (differential mode)
Communication port: 10 kV |
| Software Specifications |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) |
| IEEE 802.1Q (4K VLANs) |
| Voice VLAN |
| Super-VLAN and private VLAN |
| MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN |
| GVRP |
| Basic QinQ
Selective QinQ |
| STP, RSTP, and MSTP |
| ERPS (G.8032) |
| LLDP/LLDP-MED |
| IP service | ARP |
| DHCP client, DHCP relay, and DHCP server |
| DHCP snooping |
| DNS |
| DHCPv6 client, DHCPv6 relay, and DHCPv6 server |
| DHCPv6 snooping |
| Neighbor Discovery (ND) and ND snooping |
| IP routing | Static routing |
| RIP and RIPng |
| OSPFv2 and OSPFv3 |
| IPv4 and IPv6 VRF |
| IPv4 and IPv6 PBR |
| Multicast | IGMP v1/v2/v3, and IGMP proxy |
| IGMP v1/v2 snooping |
| PIM-DM, PIM-SM, and PIM-SSM |
| MSDP |
| MLD v1/v2 |
| MLD snooping v1/v2 |
| PIM-SMv6 and PIM-SSM v6 |
| ACL and QoS | Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL |
| ACL redirection |
| Traffic rate limiting on an interface |
| Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
| Congestion avoidance: tail drop |
| 802.1p/DSCP/ToS traffic classification Eight priority queues per interface |
| Security | Multiple AAA modes |
| RADIUS and TACAS+ |
| Interface-based and MAC address-based 802.1x authentication |
| Web authentication |
| HTTPS |
| SSHv1 and SSHv2 |
| Global IP-MAC binding |
| Port isolation and port security |
| IP source guard |
| SAVI |
| CPP and NFPP |
| Reliability | REUP, RLDP, DLDP |
| IPv4 VRRP v2/v3 and IPv6 VRRP |
| BFD |
| Link tracing, fault notification, and remote loopback based on 802.3ah (EFM) |
| Hot swapping of power modules and cables |
| Fan speed adjustment
Fan fault alarm |
| Device virtualization | Virtual Switching Unit (VSU) |
| NMS and maintenance | SPAN, RSPAN |
| sFlow |
| NTP and SNTP |
| FTP and TFTP |
| SNMP v1/v2/v3 |
| RMON (1, 2, 3, 9) |
| NETCONF |
| CWMP (TR-069) |
| gRPC |
| Cloud and SON |
| PoE | RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at
Warm start Interface priority |
| ประกัน | 3 ปี |
