Product Specification
|
|
Overview
|

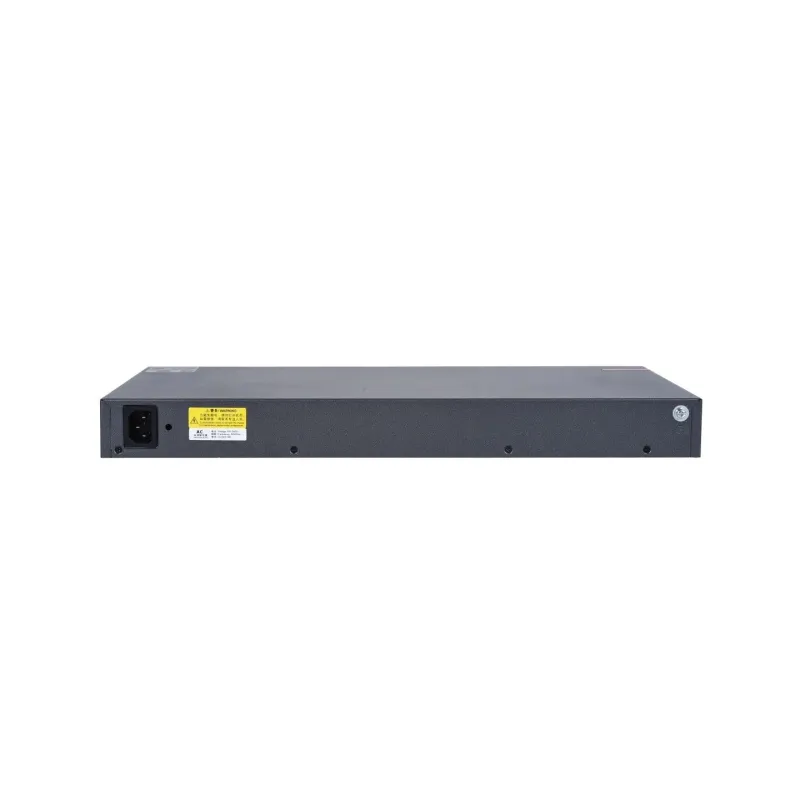

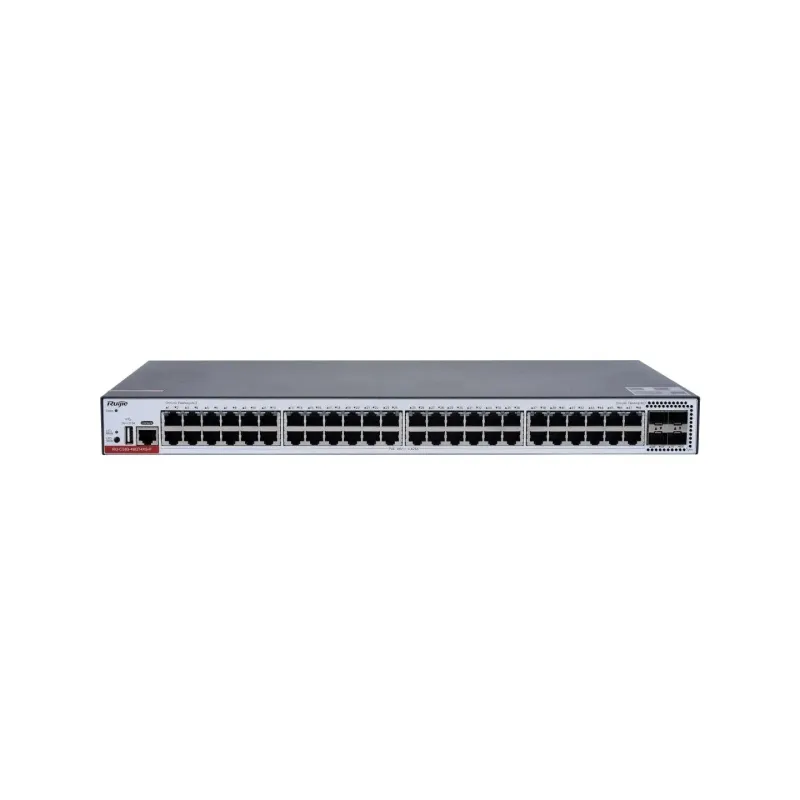

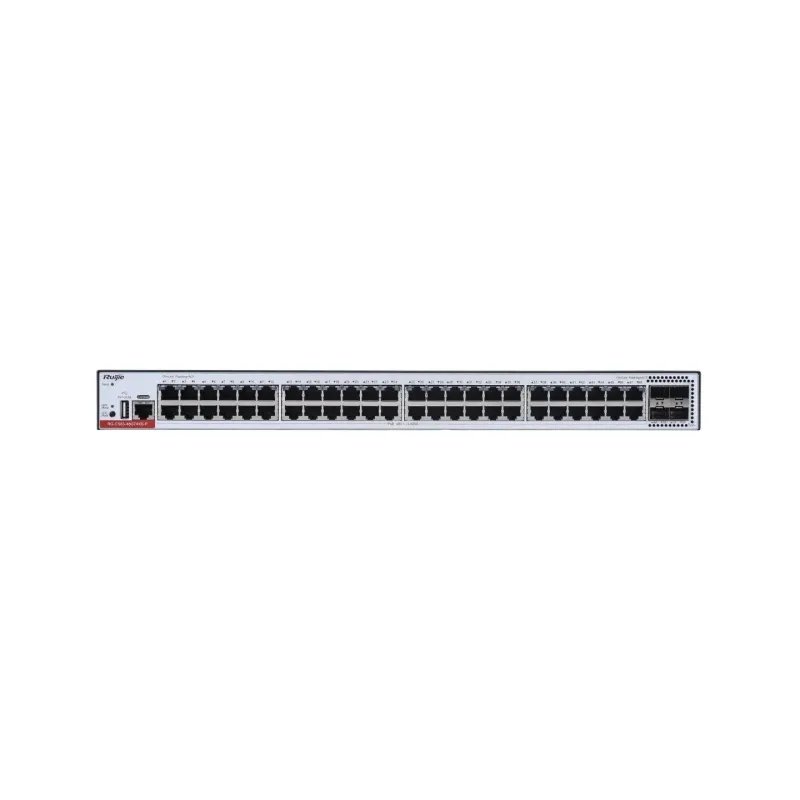

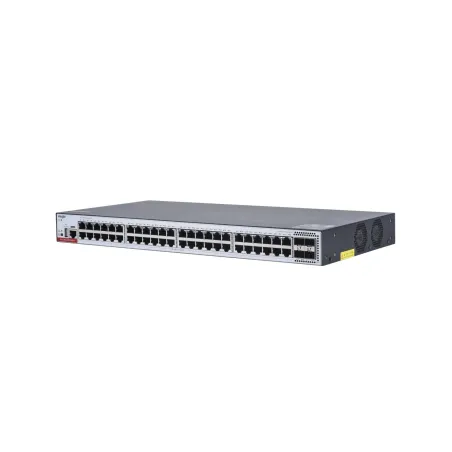

Ruijie RG-CS83-48GT4XS-P L3 Managed POE Switch 48-Port Gigabit, 4 Port SFP+ ความเร็ว 10Gbps
รองรับ Dynamic Routing OSPF, RIP
Surge protection 6kV
POE มาตรฐาน af/at สูงสุด 370W
รองรับการ Managed ผ่าน Ruijie Cloud
|
|
Hardware Specifications
|
RG-CS83-48GT4XS-P
|
|
Fixed ports
|
48 x 100M/1000M BASE-T ports
4 x 1GE/10GE SFP+ ports support POE+
|
|
Fan module
|
1 x fixed fan module
|
|
Power module
|
1 x fixed power module
|
|
Fixed management port
|
1 x console, and 1 x USB 2.0 port
|
|
Packet forwarding rate
|
132 Mpps
|
|
Switching capacity
|
176 Gbps
|
|
System Switching capacity
|
432 Gbps
|
|
MAC address table size
|
16000
|
|
ARP table size
|
4,000
|
|
Number of IPv4 multicast routes
|
6,000
|
|
Number of IPv4 unicast routes
|
4,000
|
|
Number of IPv6 multicast routes
|
750
|
|
Number of IPv6 unicast routes
|
2,000
|
|
Number of ACEs
|
Ingress: 1,750
Egress: 800
|
|
Number of VSU members
|
4
|
|
Dimensions and Weight
|
Dimensions and Weight
|
|
Dimensions (W x D x H)
|
442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)
|
|
Weight
|
3.75 kg (8.27 lbs)
|
|
CPU and Storage
|
|
|
CPU
|
1.0 GHz dual-core CPU
|
|
Flash memory
|
512 MB
|
|
BootROM
|
16 MB
|
|
SDRAM
|
1 GB
|
|
Data packet buffer
|
4 MB
|
|
Power and Consumption
|
|
|
Maximum power consumption
|
< 52 W (non-PoE)
< 460 W (PoE full load)
|
|
Maximum output power
|
460 W Maximum PoE output :405W
|
|
Rated input voltage
|
100 V AC to 240 V AC
|
|
Maximum input voltage
|
90 V AC to 264 V AC, 50 Hz to 60 Hz
|
|
Environment and Reliability
|
|
|
MTBF
|
22.86 years
|
|
Primary airflow
|
Front-to-right and left-to-right airflow Natural heat dissipation for fanless design
|
|
Operating temperature
|
0°C to 45°C (32°F to 113°F)
|
|
Storage temperature
|
–40°C to +70°C (–40°F to +158°F)
|
|
Operating humidity
|
10% to 90% RH (non-condensing)
|
|
Storage humidity
|
5% to 95% RH (non-condensing)
|
|
Operating noise
|
27℃: < 35 dB
|
|
Interface surge protection
|
Power port: 6 kV(common mode)/8 kV (differential mode) Communication port: 10 kV
|
| Software Specifications |
|
Feature
|
Description
|
|
Ethernet switching
|
Jumbo frame (maximum length: 9,216 bytes)
|
|
IEEE 802.1Q (4K VLANs)
|
|
Voice VLAN
|
|
Super-VLAN and private VLAN
|
|
MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN
|
|
GVRP
|
|
Basic QinQSelective QinQ
|
|
STP, RSTP, and MSTP
|
|
ERPS (G.8032)
|
|
LLDP/LLDP-MED
|
|
IP service
|
ARP
|
|
DHCP client, DHCP relay, and DHCP server
|
|
DHCP snooping
|
|
DNS
|
|
DHCPv6 client, DHCPv6 relay, and DHCPv6 server
|
|
DHCPv6 snooping
|
|
Neighbor Discovery (ND) and ND snooping
|
|
IP routing
|
Static routing
|
|
RIP and RIPng
|
|
OSPFv2 and OSPFv3
|
|
IPv4 and IPv6 VRF
|
|
IPv4 and IPv6 PBR
|
|
Multicast
|
IGMP v1/v2/v3, and IGMP proxy
|
|
IGMP v1/v2 snooping
|
|
PIM-DM, PIM-SM, and PIM-SSM
|
|
MSDP
|
|
MLD v1/v2
|
|
MLD snooping v1/v2
|
|
PIM-SMv6 and PIM-SSM v6
|
|
ACL and QoS
|
Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACL
|
|
ACL redirection
|
|
Traffic rate limiting on an interface
|
|
Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
|
|
Congestion avoidance: tail drop
|
|
802.1p/DSCP/ToS traffic classification
Eight priority queues per interface
|
|
Security
|
Multiple AAA modes
|
|
RADIUS and TACAS+
|
|
Interface-based and MAC address-based 802.1x authentication
|
|
Web authentication
|
|
HTTPS
|
|
SSHv1 and SSHv2
|
|
Global IP-MAC binding
|
|
Port isolation and port security
|
|
IP source guard
|
|
SAVI
|
|
CPP and NFPP
|
|
Reliability
|
REUP, RLDP, DLDP
|
|
IPv4 VRRP v2/v3 and IPv6 VRRP
|
|
BFD
|
|
Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
|
|
Hot swapping of power modules and cables
|
|
Fan speed adjustment
Fan fault alarm
|
|
Device virtualization
|
Virtual Switching Unit (VSU)
|
|
NMS and maintenance
|
SPAN, RSPAN
|
|
sFlow
|
|
NTP and SNTP
|
|
FTP and TFTP
|
|
SNMP v1/v2/v3
|
|
RMON (1, 2, 3, 9)
|
|
NETCONF
|
|
CWMP (TR-069)
|
|
gRPC
|
|
Cloud and SON
|
|
PoE
|
RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at
Warm start Interface priority
|
|
ประกัน
|
3 ปี
|
