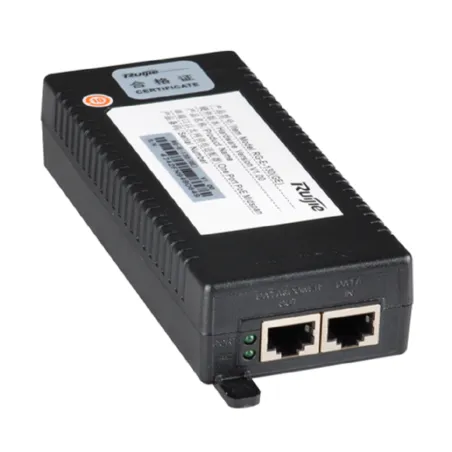

Ruijie Networks Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit
    • Ruijie Networks Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit

    Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit

    Ruijie Networks
    Rating

    Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit สำหรับจ่ายไฟให้กับอุปกรณ์ที่ใช้ POE มาตรฐาน 802.3af/at, Port Lan ความเร็ว Gigabit

    ฿760.00
    ยังไม่ได้รวมภาษี
    จำนวน


    ทักทาง Line@ สอบถามราคาพิเศษได้เลยครับ


    Line: @sysnet

    Click โทรสอบถามข้อมูลเพิ่มเติม
    รายละเอียด

    Ruijie RG-E-130(GE) Datasheet

    Product Specification

    Overview

    Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit สำหรับจ่ายไฟให้กับอุปกรณ์ที่ใช้ POE มาตรฐาน 802.3af/at, Port Lan ความเร็ว Gigabit

    Ports

    10/100/1000 Mbps Copper port (RJ-45)
    10/100/1000 Mbps PoE Copper port (RJ-45)

    Power

    Output Power Voltage: 53V DC
    Output Port Power: 30W

    Dimensions
    (W x H x L) (mm)

    87.9 x 51.3 x166

    Weight

    350g

    Temperature

    Operating Temperature: 0°C to 45°C
    Storage Temperature: -30°C to 85°C

    Humidity

    Operating Humidity: 5% to 90% (non-condensing)
    Storage Humidity: 5% to 95% (non-condensing)

    Altitude

    Operating Humidity: 5% to 90% (non-condensing)
    Storage Humidity: 5% to 95% (non-condensing)

    Altitude

    Operating Altitude: 0 to 3048m

    Regulatory Compliance

    IEEE 802.3at, IEEE 802.3af RoHS Compliant, WEEE Compliant, CE

    MTBF

    >100,000 hours @25°C

    Electromagnetic Emission & Immunity Safety Approval

    FCC Part 15, EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI, UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1

    รับประกัน

    3 ปี





    รายละเอียดสินค้า
    100 รายการ

    ทดสอบ Performance 100 Concurents Video Streaming และ ประสิทธิภาพในการทำ Roaming

    Ruijie Ultra-high density Wi-Fi project with 1000 unit Smart Phone

    Ruijie Wi Fi 6 Killer AP820 LV2 Unbox & Speedtest 762/912 Mbps

    Ruijie Cloud: Perfect Network Solution For SME

    Ruijie Cloud Site Survey Planner (SSP) Overview

    Ruijie AP Quick Provisioning

    Ruijie Cloud Deployment Quick Start

    ตารางเปรียบเทียบ ระหว่างอุปกรณ์ Ruijie vs Reyee

    Feature

    Ruijie Enterprise

    Reyee

    Ruijie Cloud

    Support

    Support

    Mobile App

    Support

    Support

    Presales Tools

    Support

    Support

    Fast Provisioning

    QR-code Device Scan/ Cloud Config Sync

    Self-organizing network (SON)

    Monitoring & Alarm

    Support

    Support

    Device Management

    Additional:
    RRM, Web CLI, Configuration Mgmt (Backup/Restore)

    Basic

    Gateway Management

    Additional:
    L7 DPI Analysis
    WAN Load Balancing
    App Cache

    Basic

    Multi-tenant

    Support

    Support

    Scenario-based

    Config Wizard

    N/A

    Support (App)

    WLAN

    Standard

    Wi-Fi4 /5 /5 Wave2 / 6

    Wi-Fi 5 Wave2 , 6 (Roadmap)

    Capacity

    Max Client 1024 (Wi-Fi 6)

    Max Client 128

    WLAN Auth

    802.1x Auth
    CustomizedPortal
    PPSK, Voucher, Account, Facebook, SMS OTP

    PSK/WPA2
    BasicPortal (Reyee Gateway)

    WLAN Features

    Adv CLI script configuration
    WIDS(Rogue AP detection)
    WirelessRadio Analytics (RRM)
    Location tracking (LBS)
    Bluetooth (BLE) support
    Speed Limit Per Client
    Speed Limit Per SSID

    Basic

    WLAN Controller

    (Appliances)

    Yes
    RG-WS6000 Series (upto 6400 AP)

    Yes
    RG-NBC Series (up to 500 AP)

    Switches

    Capacity

    Chassis model option (upto 48 10GE)

    Box Switches model (upto 24GE +10G uplink)

    L2

    IGMP Snooping, MSTP, LACP VLAN, Link Aggregate, SuperVlan, VoiceVlan, ACL

    VLAN
    Link Aggregate
    ACL

    L3

    IPv6, RIP, OSPF, PBR, VRRP

    N/A

    Security / Availability

    802.1x, CPP/NFPP, REUP, VSU

    N/A

    Management

    Managed with Web & CLI (Console port), SSH, SNMP

    Web Smart Managed & Unmanaged
