Product Specification
|
|
Overview
|
Ruijie RG-EG3230 Next-generation Unified Security Gateway 6 Wan Gigabit พร้อม Interface 8 Port ความเร็ว Gigabit , 1 Port SFP+
Loadbalance รองรับ Internet 6 WAN
รองรับ VPN 600 Tunnels, Stateful Firewall, L7 DPI
รองรับ 1,000 Users 300,000 Sesson
มาพร้อม Harddisk 1TB รองรับการเก็บ Log ใช้งาน Internet
|
|
Hardware Specification
|
|
CPU
|
Multi-core MIPS
|
|
Fixed Ports
|
8 1000BASE-T ports
1 SFP port
1 SFP+ port (non-combo)
|
|
WAN Ports
|
Upto 6
|
|
Flash
|
8M SPIFLASH
|
|
Hard Disk
|
Standard 1TB
|
|
Memory
|
2G
|
|
Performance & Feature
|
|
Performance
|
4000Mbps (1518 bytes)
|
|
2610Mbps (512bytes)
|
|
622Mbps (64 bytes)
|
|
Concurrent Session
|
300,000
|
|
Recommended Concurrent User
|
1000
|
|
App Caching
|
Support
|
|
Cache Capacity
|
100GB
|
|
Portal Authentication Capacity
|
1000 (Max Concurrent Users)
|
|
Portal Authentication Type
|
Username/Password Auth (Local, Windows-based AD/LDAP Integration)
One-click Authentication;
Guest Voucher (Ruijie Cloud required);
|
|
Seamless Authentication (Portal)
|
Support
|
|
App Caching
|
Support
|
|
Cache Resources
|
Windows System Patches
|
|
Network Protocol
|
Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc.
Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
Support DHCP Relay and DHCP Server
Support PPPoE Client
Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
Support ARP, trusted ARP, proxy ARP, etc.
Support Ping and Traceroute fault detection
|
|
Application Visibility
|
Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:
P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
Multimedia: YouTube, Facebook Video, WebEx Conference & etc.
Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.
VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.
Software Update: Window, McAfee, Kaspersky, ESET & etc.
Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.
Enterprise Application:HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc.
|
|
URL Filtering
|
Support HTTP/HTTPS domain filtering
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc.)
Support storage on external log server
|
|
WAN Load Balancing
|
Support (upto 6 WAN Port)
|
|
High Availabilit
|
VRRP
RIP (Graceful Restart)
OSPF (Graceful Restart)
|
|
IPsec VPN Tunnel
|
600
|
|
Network Security
|
Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack
|
|
Layer 2 Features
|
Support Bridging
Support LAN Port Aggregation
|
|
Ruijie Cloud Integration Feature
|
Support device health monitoring status
Support centralized configuration change management & backup
Support Top 10 Application/User traffic visualization
Support device firmware management
Support event-based alarm notification
|
|
Other Features
|
Integrate with AAA software to support multiple authentication modes
|
|
Other Features
Service and Support
|
Support push advertising page
|
|
Support multi-link load balancing
|
|
Support remote HTTP online upgrade for signature library, software version, etc.
|
|
Lifetime Free signature library upgrade
|
|
Rack Height
|
1U
|
|
Weight
|
4KG
|
|
Power Supply
|
100-240V~,50-60Hz,0.65A
|
|
Power Consumption
|
<25W
|
|
Dimensions (W x D x H) (mm)
|
440×200×43.6
|
|
Operating Temperature
|
0°C to 40°C
|
|
Operating Humidity
|
10% to 90%RH
|
|
|
อุปกรณ์ไม่รองรับ DDNS และ NO-IP ในกรณีที่ต้องการทำ Forward Port/ Port Mapping ต้องใช้ Fix-IP เท่านั้น |
|
รับประกัน
|
3 ปี
|
Smart Flow Control & AAA Integration
- Smart P2P speed limit, accurate identification of P2P software, and automatic transmission of uplink source quench message to control the downlink traffic and prevent downlink bandwidth exhaustion
- Support over 120 popular application in DPI engine and enjoys FREE for life signature update
- Role-based flow control based on usernames and user groups to facilitate the allocation of bandwidths according to different departments
- Support AAA (Authentication, Authorization and Accounting) with web authentication, integration with AAA Software and simple traffic accounting feature

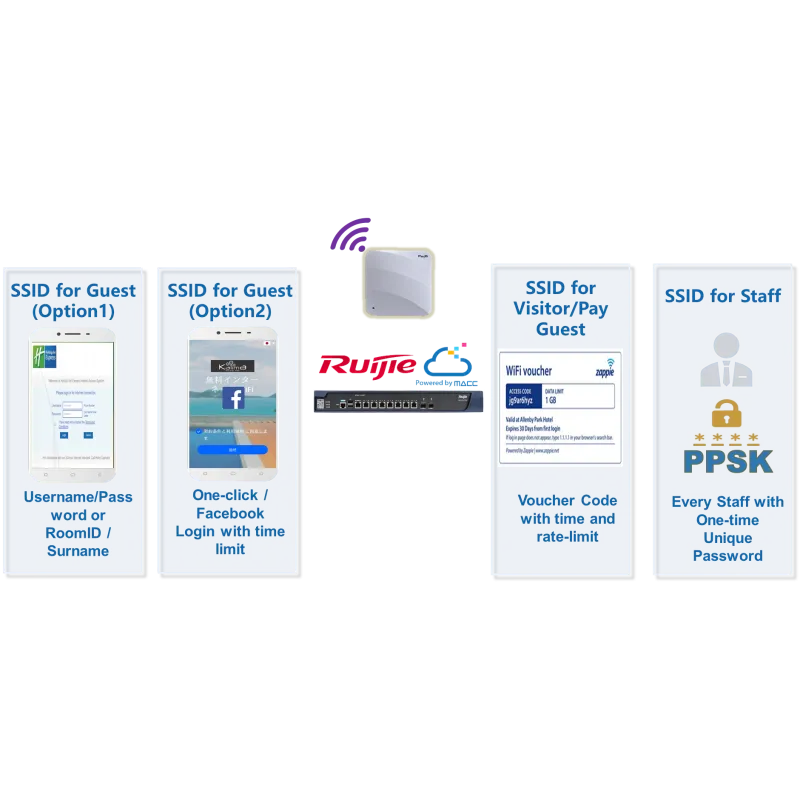

Flexible Authentication
With integration with Ruijie Cloud Service (https://www.ruijienetworks.com/products/smb/cloud-service/), the Ruijie EG Security Gateway provide the easy, secure and flexible authentication experience for various business scenarios.
All account or portal management can be managed at Ruijie Cloud centrally, but all authentication are processed locally at EG Gateway, which guarantee for authentication performance and the highest availability, such that any connectivity error with Ruijie Cloud service will not bring any service interruptions to the user authentication service.
Ruijie EG provide rich access security policy for guest and staff
Multiple Logins at same portal – allow for multiple guest access policy simultaneously
Online Behavior Management
Ruijie EG Next-generation Unified Security Gateway provides detailed online behavior management of the intranet users, blocking a variety of non-work-related websites to create a good working atmosphere and improve work efficiency.

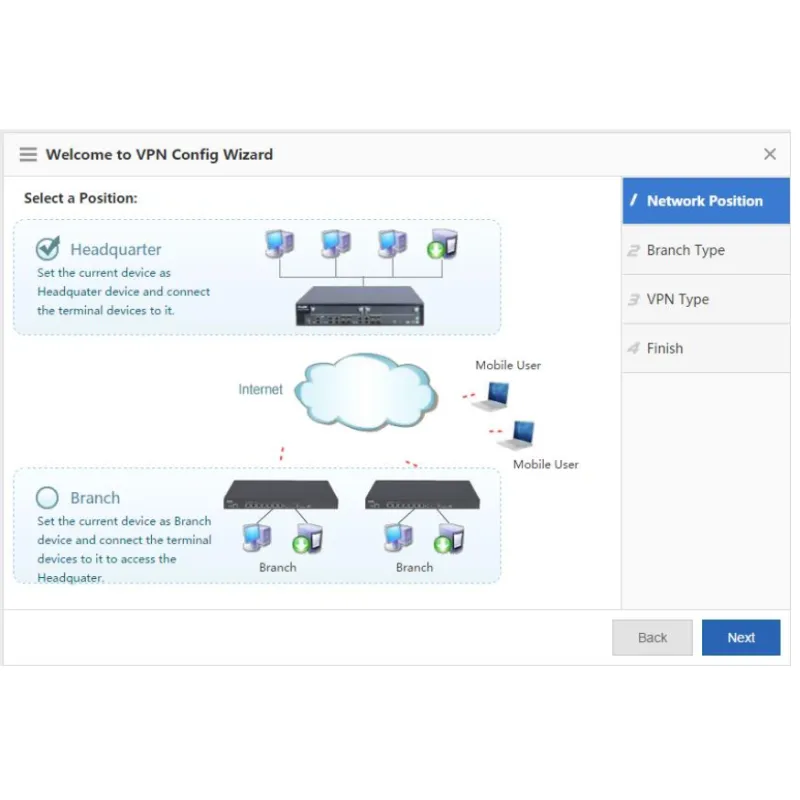

VPN Visualization
Ruijie SME Security Gateway has significantly simplified the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The gateway enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.
Traffic Analysis
Equipped with powerful DPI technology, the Ruijie SME Security Gateway collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.
Centralized Cloud Management
Couple with Ruijie Cloud services, the Ruijie EG Security Gateway is now able to be monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.
Diagram 1 EG Security Gateway Device Info and Top N Traffic Analysis on Ruijie Cloud management platform
Intuitive Mobile App
Apart from the accessing cloud management dashboard from workstation, Ruijie offer an alternative to manage Security Gateway from your fingertips, a tailor-made Mobile App you can download from Google Play and Apple Appstore. You can now access to Security Gateway even you’re away from your PC.

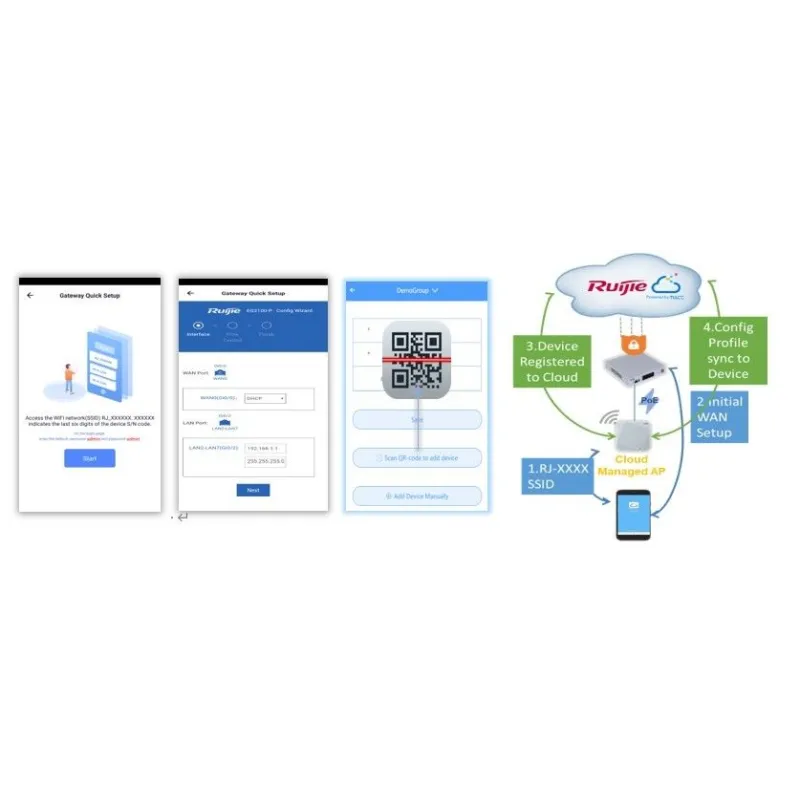

Mobile App Provisioning for Dummy
For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.
App Caching for Download Acceleration
Ruijie EG Gateway provide exclusive Caching technology for any media files resources and Mobile App (Google Android APK and IOS Store), the files will download from EG Cache directly without go through the Internet. The feature is exceptionally help for situation with high volume for same identical file downloading, such as Games, Mobile App, System Patches, etc. but the internet line speed is not fast sufficient or expensive.
One of most popular application is for shopping malls, retails chain, F&B, Airport, Metro Company with own Mobile App for O2O business, membership promotion, and value-added service. Guest or Vistors very often will download the same Mobile App during the peak hours, and long downloading is defintely expected because of Internet or Server-side bottleneck issues.
Diagram 2 EG Security Gateway Hot Spot Resource Table: Review for the Hit Ratio for cache resources
Built-in Internet Audit Log Storage
At the heart of most devices that provide protection for IT networks is an ability to log events and take actions based on those events. Ruijie SME Security Gateway (EG3230 model only) supports detail logging both on what has happened to the device and what is happening. A local attached 1TB harddisk provides sufficient storage to keep all the nessecary audit logging trail. It increase the higher logging retential period before it is exported to external logging server
Built-in Power-Over-Ethernet (POE)
Designed for retail, small organizations and distributed enterprises with remote and branch offices, the RG-EG2100-P v2 integrate support for PoE devices. It come with 7 POE Out ports to provide power to and endpoint like, video cameras, security access control (card scanners), point-of-sales devices, IP phones, wireless access point and many more. It eliminates the complexity of providing extra power cabling especially the small organization or retail wireless network deployment. Cost and time saving!
