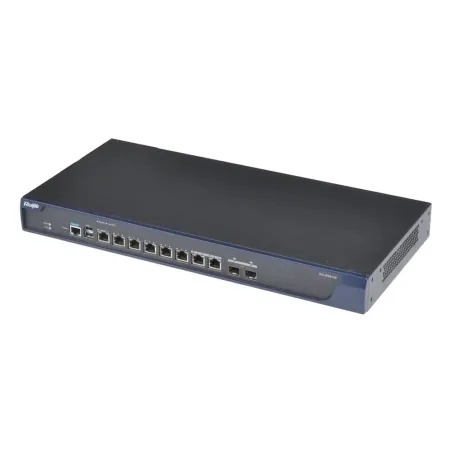

Ruijie RG-WS6108 Next-Gen Wireless Controller รองรับ AP สูงสุด 640, เชื่อมต่อได้ 10,000 Client

Product Specification

Overview

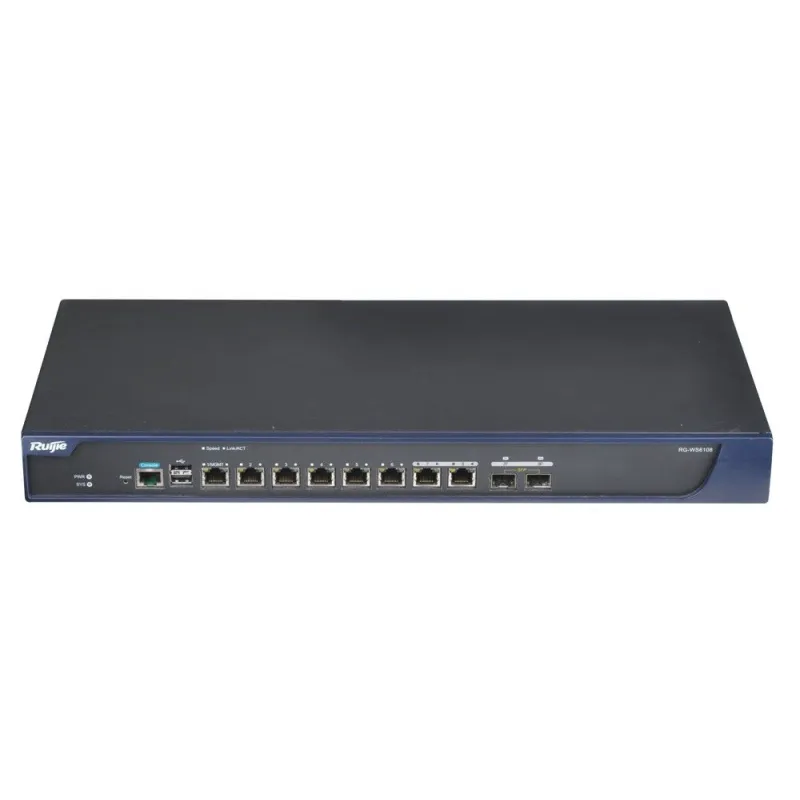

Ruijie RG-WS6108 Next-Gen Wireless Controller

รองรับการ Managed  Access Point ได้ 32 AP (Defualt License)  สูงสุด 320 APs และ 640 Wall AP เมื่อมีการ Upgrade  License รองรับการเชื่อมต่อได้ 10,000 Client

พร้อม 8 Port Lan Gigabit, 2 Port SFP

Service Ports

8 Gigabit copper ports

2 Gigabit fiber ports (combo)

Management Ports

1 console port

Operating Temperature

0ºC to 45ºC

Operating Humidity

5% to 95%RH (non-condensing)

Storage Temperature

-40ºC to 70ºC

Storage Humidity

5% to 95%RH (non-condensing)

Power Consumption

<40W

Security Standard

GB4943, EN/IEC 60950-1

EMC Standard

GB9254, EN301 489

Dimensions (W×D×H) (mm)

440 × 200 × 43.6

Weight

2kg

Installation

19-inch rack

Default Number of Manageable APs

32

Maximum Number of Manageable APs

320 / 640 (for Wall AP)

Maximum Number of Configurable APs

2048

Maximum Number of Manageable Users

10K

802.11 Performance

8Gbps

VLAN

4K

Maximum Number of Clients Supported by the Built-in Portal

7500

ACL

64K

MAC Address Table

16K

ARP Table

12K

IPv6 Neighbour Table

10K

Local Authentication

300 wireless clients

Inter-AC Roaming Switch Time

≤50ms

802.11 LAN Protocol

802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n

CAPWAP

Layer 2/Layer 3 network topology between an AP and an AC

Enable an AP to automatically discover an accessible AC

Enable an AP to automatically upgrade its software version from an AC

Enable an AP to automatically download configurations from an AC

Network Address Translation (NAT) traversal

Roaming

Intra-AC Layer 2/Layer 3 roaming

Inter-AC Layer 2/Layer 3 roaming

Local forwarding intra-AC Layer 2/Layer 3 roaming

Local forwarding inter-AC Layer 2/Layer 3 roaming

Forwarding

Centralized forwarding

Local forwarding

Flexible forwarding based on service

Wireless QoS

AP-based bandwidth limiting

WLAN-based bandwidth limiting

Static speed limiting and smart speed limiting based on user

Fair balancing

User Isolation

User isolation based on ACs in the whole network

User isolation based on AP

User isolation based on WLAN

Reliability

Fast switching between 2 ACs

Multi-AC redundancy (1+1 A/A and A/S, N+1)

Multi-AC clustering (N+N)

Remote Intelligent Perception Technology (RIPT)

Uninterrupted service upgrade

STA Management

AP-based STA limiting

SSID-based STA limiting

AP-based load balancing

AP traffic-based load balancing

5G priority access

RSSI threshold

STA RSSI Threshold

0 to 100

STA Idle Timeout

90 to 86,400 seconds

STA Average Data Rate Threshold

8 to 819,200 with the accuracy of 8 kbps

Adjusting Transmit Power of Beacons and Probe Responses

Yes

Offline Syslog

Yes

RF Management

Setting country codes

Manually setting the transmit power

Automatically setting the transmit power

Automatically setting working channels

Automatically adjusting transmission rates

Support blackhole compensation

Support RF interference detection and avoidance

IPv4 Security

Web authentication

802.1x authentication

PEAP authentication

SMS authentication

QR code authentication

IPv6 Security

802.1x authentication

Web authentication

802.11 Security and Encryption

Multi-SSID

SSID hiding

802.11i-compliant PSK authentication

WPA and WPA2

WEP (WEP/WEP128)

WAPI

TKIP

CCMP

Protection against ARP spoofing

SMP

Integration with SMP

CPP

Yes

NFPP

Yes

WIDS

Yes

IPv4 Protocol

Ping, Traceroute

DHCP Server

DHCP Client

DHCP Relay

DHCP Snooping

DNS Client

NTP

Telnet

TFTP Server

TFTP Client

FTP Server

FTP Client

FTP Client

IPv6 Protocol

DNSv6 Client

DHCPv6 Relay

DHCPv6 Server

TFTPv6 Client

FTPv6 Server

FTPv6 Client

IPv6 CAPWAP

ICMPv6

IPv6 Ping

Manual tunnel, automatic tunnel

Manual configuration address, automatic local address

IPv6 Traceroute

IPv4 Routing

Static routing, OSPF

IPv4 Routing Table Capacity

8K

IPv4 Static Routing Table Capacity

1K

IPv6 Routing

Static routing

IPv6 Routing Table Capacity

1K

IPv6 Static Routing Table Capacity

1K

Network Management

SNMP v1/v2c/v3

RMON

Remote probe

Syslog

Network Management Platform

Web management (Smart-web)

RG-SNC management

RILL management

Heat Map diagram

User Access Management

Login via console port

Login via Telnet

Login via SSH

Upload to FTP
