Ruijie RG-S1800 series datasheet
Ruijie RG-S1800 series Installation and Reference Guide
Product Specification | |

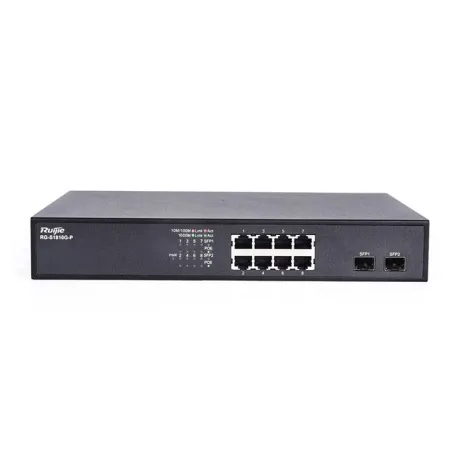

Overview | Ruijie RG-S1810G-P UnManaged Gigabit POE Switch, 2 Port SFP จ่ายไฟ POE 8 Port รวม 124W เคสเหล็ก ทนทาน ราคาประหยัด |
Ports | 8 Port 10/100/ 1000 BASE-T, 2 GE SFP (Non- combo) All models support half-duplex, full-duplex, auto-negotiation mode, automatic medium dependent interface (MDI) and MDI crossover (MDI-X) |
Power over Ethernet Plus (PoE+) | Support |
Port Buffer | 4Mbits |
Switching Capacity | 48Gbps |
Forwarding Capacity | 14.90Mpps |
MAC Address | 8K |
Power Supply | AC 100~240V 50Hz~60Hz |
Power Consumption | 5W (w/o PoE) |
Surge Protection | 6KV |
Fan/Fanless Models | Fanless |
Physical Dimensions (W x D x H) | 280*180* 43mm |
Physical Dimensions (W x D x H) | 140*76*27mm |
Operating Temperature | 0C - 50C |
Storage Temperature | -40C - 70C |
Operating Humidity | 10% - 90% RH |
Storage Humidity | 5% - 95% RH |
Operating Altitude | -500m to 2,000m |
Safety Standards | EN60950-1 |
Emission Standards | EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11,EN300 386 |
ประกัน | 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
