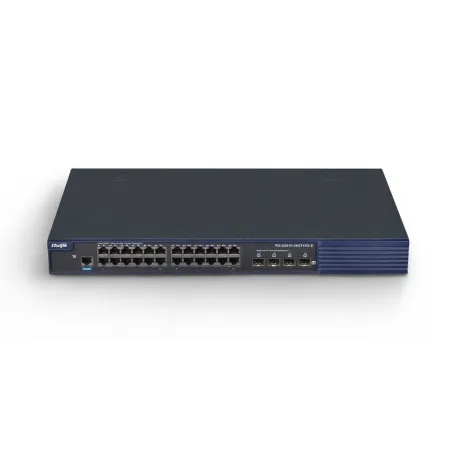

RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps
  • RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps
  • RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps
  • RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps
  • RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps
  • RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps

RG-S2910-24GT4XS-E Ruijie L2- Managed Gigabit Switch 24 Port, 4 SFP+ 10Gbps

RG-S2910-24GT4XS-E

Ruijie RG-S2910-24GT4XS-E L2-Managed Gigabit Switch 24 Port, 4 SFP+ ความเร็ว 10Gbps, รองรับ SDN OpenFlow, VLAN, QOS

฿0.00
ยังไม่ได้รวมภาษี
จำนวน

ตัวแทนจำหน่าย Ruijie/Reyee อย่างเป็นทางการ

ทีมงาน Certificate Support


ต้องการรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

รายละเอียด

Review ระบบ Controller Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud

Ruijie RG-S2910XS-E Switch Series Datasheet

Ruijie RG-S2910XS-E Series Switches Hardware Installation and Reference Guide

Ruijie RG-S29 Series Switches RGOS Configuration Guide

Ruijie RG-S29 Series Switches RGOS Command Reference

Tolly test report for s2910 of ruijie

Product Specification

Overview

Ruijie RG-S2910-24GT4XS-E L2-Managed Gigabit Switch 24 Port พร้อม 4 Port SFP+ ความเร็ว 10Gbps

รองรับ SDN OpenFlow, VLAN, QOS

Ports

24 10/100/1000BASE-T ports
4 1G/10GBASE-X SFP+ ports (non-combo)

Expansion Slots

N/A

Modular Power Slots

N/A

Fan Slots

N/A

Expansion Modules

N/A

Management Ports

1 console port

Switching Capacity

264Gbps

Packet Forwarding Rate

96Mpps

Max. Number of 10GE Ports

4

PoE

N/A

Port Buffer

1.5MB

RAM

512MB

ARP Table

1,000

MAC Address

16K
Routing Table Size
(IPv4/IPv6)

500 (IPv4/IPv6)

ACL Entries

In: 1,500
Out: 500

VLAN

4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Guest VLAN

QinQ

Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching, 1:N VLAN switching

Link Aggregation

AP, LACP (maximum 8 ports can be aggregated), Cross devices AP, Flow balance

Port Mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN

# RG-S2910-10GT2SFP-P-E supports N:1/1:N port mirroring, Flow-based mirroring

Spanning Tree Protocols

IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard,Spanning Tree Root Guard(STRG)

DHCP

DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay,DHCP Snooping Option 82

Multiple Spanning Tree Protocol (MSTP) Instances

64

Maximum Aggregation Port (AP)

128

SDN

OpenFlow 1.0 & 1.3

VSU (Virtual Switch Unit)

Support (up to 9 stack members,to ensure the effectiveness of the use, 4 members are recommended* ), Local and distant stacking, Cross-chassis link aggregation in the stack, Stacking via 10G Ethernet ports

# All models support the features above except RG-S2910-10GT2SFP-P-E

SCN (Simplicity Campus Network)

Support establishing large L2 network with core devices and achieve resources pooling via VSU and VSD. Only management on core devices is required and hence simplifies horizontal and vertical network management and maintenance.

# All models support the features above except RG-S2910-10GT2SFP-P-E

Zero Configuration

CWMP(TR069)

L2 Features

MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast/Multicast/Unknown unicast storm control, IGMP v1/v2/v3 snooping, IPv6 MLD Snooping v1/v2,IGMP SGVL/IVGL, IGMP querier, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032 ERPS, Layer 2 protocol tunnel

Layer 2 Protocols

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1D, IEEE802.1w, IEEE802.1s

IPv4 Features

Ping, Traceroute

IPv6 Features

ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address

IPv4 Routing Protocols

Static Routing, RIP, OSPF v1/v2

Basic IPv6 Protocols

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert

IPv6 Routing Protocols

Static routing, RIPng, OSPF v3

Multicast

IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM-SMv6, Multicast static routing

G.8032

Support

ACL

Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect, Time-based ACL,Router ACL, VLAN ACL, Port-Based ACL

QoS

802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities; flow-based rate limiting with the minimum granularity of 8Kbps, sysnet, Dynamic QoS

Reliability

VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)

EEE Format

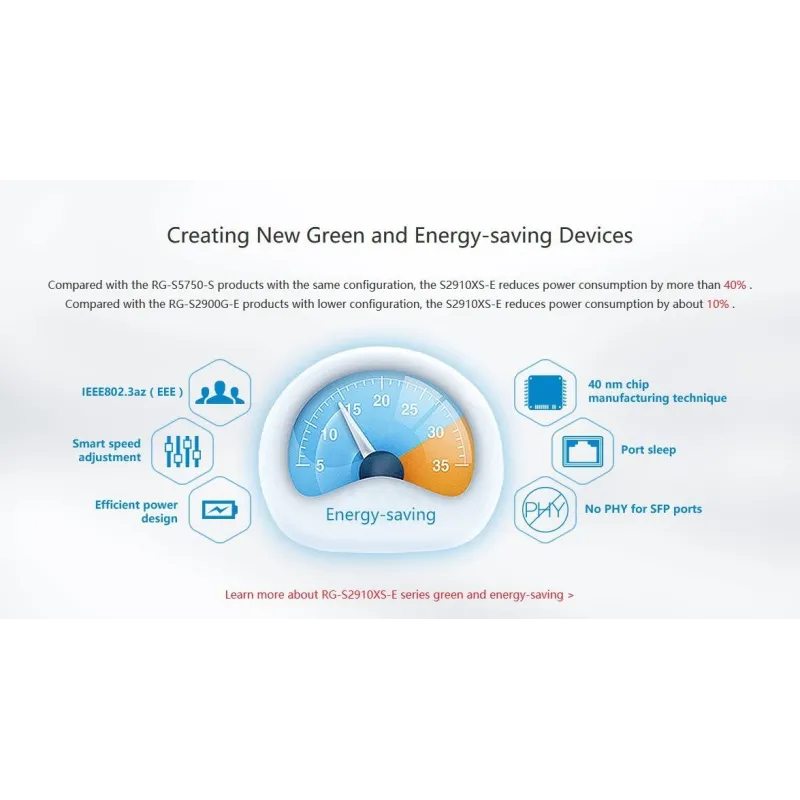

Support IEEE 802.3az standard

Security

Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+;Change of Authorization; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection, CoA(RADIUS change of authorization),SCP (Secure Copy)Dynamic ARP Inspection(DAI)

Manageability

NMPv1/v2c/v3, CLI (Telnet / Console), RMON (1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web, SFLOW,HTTP or HTTPS

# RG-S2910-10GT2SFP-P-E supports SNMPv2c, CLI (Telnet / Console), Syslog, RMON (1, 2, 3, 9), Web

Hot Patch

Support

Smart Temperature Control

Auto fan speed adjustment; Fan malfunction alerts; Fan status check

# All models support the features above except RG-S2910-10GT2SFP-P-E

Smart Power Supply

N/A

Other Protocols

FTP, TFTP, DNS client, DNS static

Dimensions
(W x D x H)  (mm)

440 × 260 × 43.6

Rack Height

1RU

Weight

≤3.5kg

MTBF (hours)

614844

Lightning Protection

4KV

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50/60Hz
Rated current: 1.5A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 0.5A to 0.1A

Power Consumption

24W

PoE Power

N/A

Temperature

Operating temperature: 0°C to 50°C
Storage temperature: -40°C to 70°C

Humidity

Operating humidity: 10% to 90%RH
 Storage humidity: 5% to 95%RH

Operating Altitude

-500m to 5,000m

ประกัน

3 ปี



รายละเอียดสินค้า
10 รายการ

ข้อมูลสินค้า

ประเภท Switch
L2 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
24 Port
SFP+ Port 10-Gigabit
1-2 Port
