Product Specification |

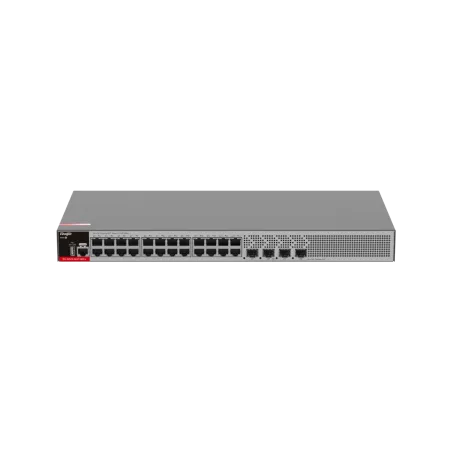

Overview | Ruijie RG-S2915-24GT4MS-L, L2+ Managed Switch 24-Port Lan ความเร็ว 1 Gigaibit พร้อม 4 Port SFP 2.5G, Surge protection 10kV รองรับการ Managed ผ่าน Ruijie Cloud |
Switching Capacity | 68Gbps |
Packet Forwarding Rate | 51 Mpps |
Fixed Service Ports | 24 × 10/100/1000Base-T Ethernet ports with auto-negotiation
4 × 2.5GE/1GE SFP ports |
Fixed Management Ports | 1 × RJ45 console port, 1 × USB port |
Cable Hot Swapping | Supported by service interfaces and power ports |
CPU | ARM A9 CPU, 1.2GHz |
SDRAM | 512MB |
MAC Address | 16000 |
ARP Table | 512 |
Jumbo Frame | 9126 |
Routing Table Size (IPv4/IPv6) | 64 |
ACL Entries | 500 |
Device Size (W × D × H) | 440 mm × 220 mm × 43.5 mm |
Weight | 2.5 kg |
Rack Size | 1 RU |
Maximum Power Consumption | 15.6W |
Rated Input Voltage Range | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
PoE | N/A |
Number of Fixed Fans | 0 |
Heat Dissipation | Air-cooled heat dissipation |
Noise | Fanless |
Fan Speed Adjustment | N/A |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -40°C to 70°C |
Temperature Monitoring | Supported |
Temperature Alarm | Supported |
Overtemperature Protection | Supported |
Layer 2 Features |
IEEE 802.1Q VLAN | Port-based VLAN
Voice VLAN |
LLDP | Supported |
MAC | Supported |
RLDP | Supported |
Spanning Tree | IEEE802.1d STP
IEEE802.1w RSTP |
QinQ | Basic QinQ
Flexible QinQ |
IGMP Snooping | IGMP v1,v2 Snooping |
Layer 3 Features |
ARP | ARP proxy
ARP Entry Timeout |
Interface Features |
Link Aggregation | Load balancing mode configurable
LACP |
Mirror | Common service ports and aggregated ports can be configured as the source and destination ports of mirroring.
One-to-many mirroring, many-to-one mirroring, RSPAN |
Ethernet | Jumbo frames |
Application Protocol Features |
DHCP | DHCP server
DHCP client
DHCP snooping
DHCP relay |
DNS | DNS Client |
NTP | NTP Client
NTP Server |
TFTP | TFTP Client |
Routing Protocol Specification |
IP Routing | IPv4/IPv6 static routing
RIP, RIPng |
ACL and QoS |
ACL | Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (ACLs based on source MAC addresses or destination MAC addresses)
ACL 80
Global ACLs
ACL redirection |
QoS | Flow-based rate limiting on the ingress
Port rate limiting
IEEE 802.1p/DSCP traffic classification
Eight priority queues per port
SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR queue scheduling |
Security Features | Filtering of invalid MAC addresses
Hardware CPP, NFPP
IP source guard
IEEE 802.1X authentication
RADIUS and TACACS+ |
PoE | IEEE 802.3af and 802.3at power supply standards
Automatic and energy saving power supply management mode
Uninterrupted power supply in hot start mode
Scheduled powering on /off PoE ports on the basis of time policy
Port priority
Note: Only RG-S2915-24GT4MS-P-L and RG-S2915-10GT2MS-P-L support the PoE function. |
Ruijie Cloud | Supported |
Management | SNMP, CLI (telnet/console), syslog/debug, NTP, TFTP, SSH, Web, and sFLOW |
ประกัน | 3 ปี |
