Product Specification
|
|
Overview
|

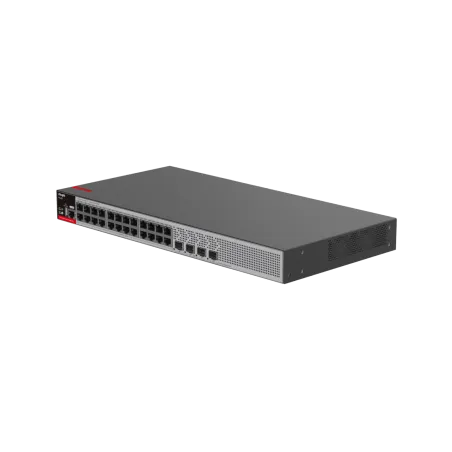

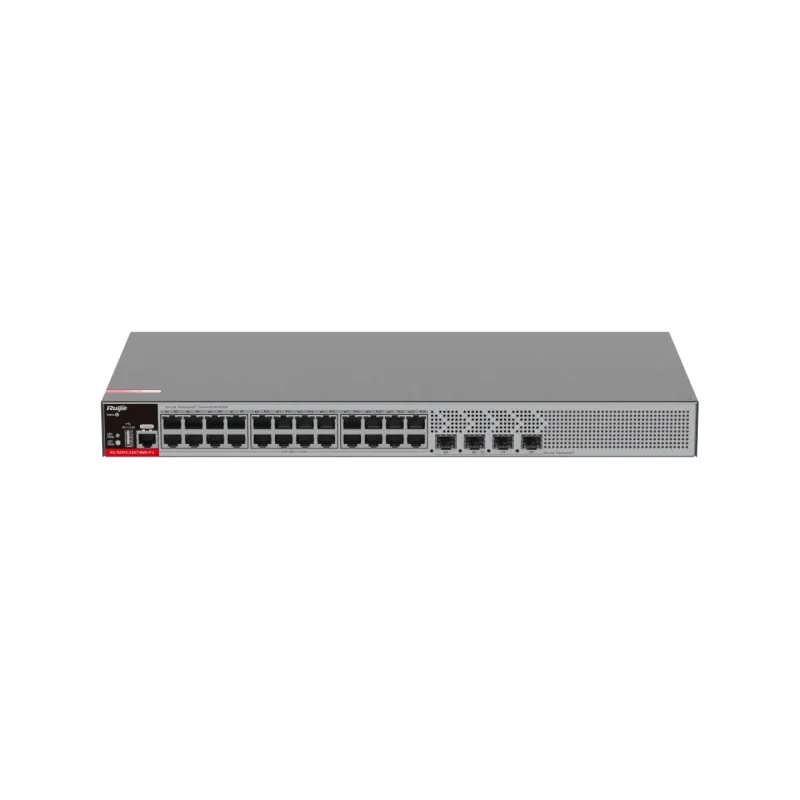

Ruijie RG-S2915-24GT4MS-P-L, L2+ Managed POE Switch 24-Port Lan ความเร็ว Gigabit พร้อม 4 Port SFP 2.5G, จ่ายไฟ POE 24 Port สูงสุด 370W, Surge protection 10kV Cloud
รองรับการ Managed ผ่าน Ruijie Cloud
|
|
Switching Capacity
|
68Gbps
|
|
Packet Forwarding Rate
|
51 Mpps
|
|
Fixed Service Ports
|
24 × 10/100/1000Base-T Ethernet ports with auto-negotiation
4 × 2.5GE/1GE SFP ports
|
|
Fixed Management Ports
|
1 × RJ45 console port, 1 × USB port
|
|
Cable Hot Swapping
|
Supported by service interfaces and power ports
|
|
CPU
|
ARM A9 CPU, 1.2GHz
|
|
SDRAM
|
512MB
|
|
MAC Address
|
16000
|
|
ARP Table
|
512
|
|
Jumbo Frame
|
9126
|
|
Routing Table Size (IPv4/IPv6)
|
64
|
|
ACL Entries
|
500
|
|
Device Size (W × D × H)
|
440 mm × 292 mm × 43.5 mm
|
|
Weight
|
2.8 kg
|
|
Rack Size
|
1 RU
|
|
Maximum Power Consumption
|
403 W (the PoE power is 370 W)
|
|
Rated Input Voltage Range
|
100 V AC to 240 V AC, 50 Hz to 60 Hz
|
|
PoE
|
PoE/PoE+ supported
|
|
Number of Fixed Fans
|
2
|
|
Heat Dissipation
|
Air-cooled heat dissipation
|
|
Noise
|
≤ 39 dB
|
|
Fan Speed Adjustment
|
Supported
|
|
Operating Temperature
|
0°C to 45°C
|
|
Storage Temperature
|
-40°C to 70°C
|
|
Temperature Monitoring
|
Supported
|
|
Temperature Alarm
|
Supported
|
|
Overtemperature Protection
|
Supported
|
|
Layer 2 Features
|
|
IEEE 802.1Q VLAN
|
Port-based VLAN
Voice VLAN
|
|
LLDP
|
Supported
|
|
MAC
|
Supported
|
|
RLDP
|
Supported
|
|
Spanning Tree
|
IEEE802.1d STP
IEEE802.1w RSTP
|
|
QinQ
|
Basic QinQ
Flexible QinQ
|
|
IGMP Snooping
|
IGMP v1,v2 Snooping
|
|
Layer 3 Features
|
|
ARP
|
ARP proxy
ARP Entry Timeout
|
|
Interface Features
|
|
Link Aggregation
|
Load balancing mode configurable
LACP
|
|
Mirror
|
Common service ports and aggregated ports can be configured as the source and destination ports of mirroring.
One-to-many mirroring, many-to-one mirroring, RSPAN
|
|
Ethernet
|
Jumbo frames
|
|
Application Protocol Features
|
|
DHCP
|
DHCP server
DHCP client
DHCP snooping
DHCP relay
|
|
DNS
|
DNS Client
|
|
NTP
|
NTP Client
NTP Server
|
|
TFTP
|
TFTP Client
|
|
Routing Protocol Specification
|
|
IP Routing
|
IPv4/IPv6 static routing
RIP, RIPng
|
|
ACL and QoS
|
|
ACL
|
Standard IP ACLs (IP-based hardware ACLs)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (ACLs based on source MAC addresses or destination MAC addresses)
ACL 80
Global ACLs
ACL redirection
|
|
QoS
|
Flow-based rate limiting on the ingress
Port rate limiting
IEEE 802.1p/DSCP traffic classification
Eight priority queues per port
SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR queue scheduling
|
|
Security Features
|
Filtering of invalid MAC addresses
Hardware CPP, NFPP
IP source guard
IEEE 802.1X authentication
RADIUS and TACACS+
|
|
PoE
|
IEEE 802.3af and 802.3at power supply standards
Automatic and energy saving power supply management mode
Uninterrupted power supply in hot start mode
Scheduled powering on /off PoE ports on the basis of time policy
Port priority
Note: Only RG-S2915-24GT4MS-P-L and RG-S2915-10GT2MS-P-L support the PoE function.
|
|
Ruijie Cloud
|
Supported
|
|
Management
|
SNMP, CLI (telnet/console), syslog/debug, NTP, TFTP, SSH, Web, and sFLOW
|
|
ประกัน
|
3 ปี
|
