Product Specification
|
|
Overview
|

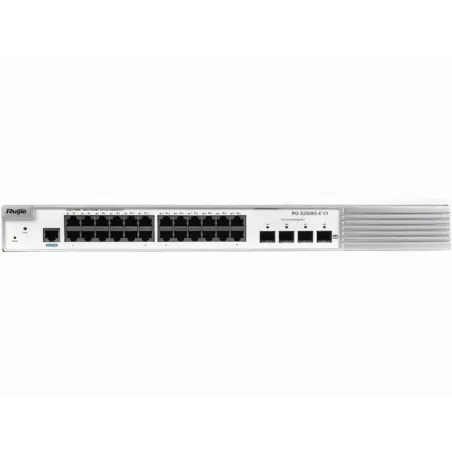

Ruijie RG-S2928G-E V3 L3-Managed Gigabit Switch 24 Port, 4 Port SFP (Non Combo) รองรับ Static Routing, OSPF, VRRP, VLAN, DHCP Snooping, VSU, QOS
ICT Spec อุปกรณ์กระจายสัญญาณ (L2 Switch) ขนาด 24 ช่อง แบบที 2
|
|
Model
|
RG-S2928G-E V3
|
|
Ports
|
24 10/100/1000BASE-T ports
4 1G SFP ports (non-combo)
|
|
Fan Slots
|
Fanless
|
|
Management Ports
|
1 console port
|
|
Switching Capacity
|
Up to 256Gbps
|
|
Packet Forwarding Rate
|
Up to 96Mpps
|
|
Port Buffer
|
1.5MB
|
|
ARP Table
|
1,000
|
|
MAC Address
|
Up to 16K
|
|
Routing Entries
|
500
|
|
IP Host Entries
(IPv4/IPv6)
|
500 (IPv4/IPv6)
|
|
ACL Entries
|
Up to 1,500
|
|
ACL
|
Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect
|
|
QoS
|
802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities
|
|
VLAN
|
4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP
|
|
QinQ
|
Basic QinQ, Flexible QinQ, 1:1 VLAN switching
|
|
Link Aggregation
|
AP, LACP, Flow balance
|
|
Port Mirroring
|
Many-to-one mirroring, One-to-Many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN
|
|
Spanning Tree Protocols
|
IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC filter, TC protection, LOOP guard, ROOT guard
|
|
DHCP
|
DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay
|
|
Multiple Spanning Tree Protocol (MSTP) Instances
|
64
|
|
Maximum Aggregation Port (AP)
|
Up to 128
|
|
Multicast
|
IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, MLD snooping v1/v2
|
|
SDN
|
OpenFlow 1.0, future support OpenFlow 1.3
|
|
EEE Format
|
Support IEEE 802.3az standard
|
|
G.8032
|
Support
|
|
L2 Features
|
MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel
|
|
Layer 2 Protocols
|
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1d, IEEE802.1w, IEEE802.1s
|
|
Security
|

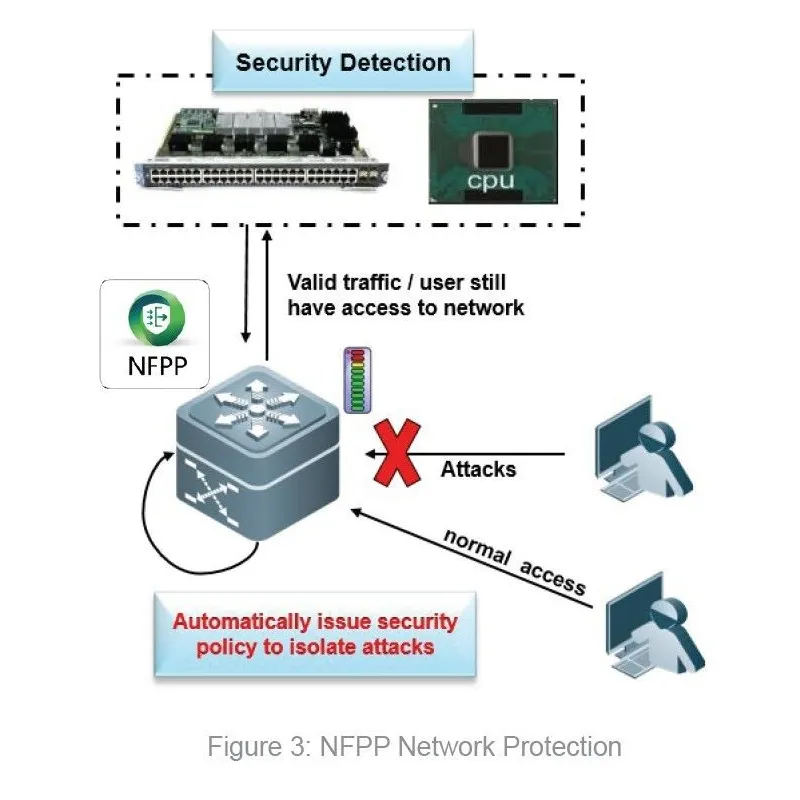

Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection
|
|
Layer 3 Features
|
IPv4 static routing, IPv6 static routing, RIP, RIPng, OSPFv2/v3, ARP proxy, Neighbor Discovery，VRRP
|
|
Layer 3 Protocols (IPv4)
|
Static routing, RIP, RIPng, OSPFv2/v3
|
|
IPv4 Features
|
Ping, Traceroute
|
|
IPv6 Features
|
0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head,VRRP v3
|
|
Basic IPv6 Protocols
|
IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert
|
|
IPv6 Routing Protocols
|
Static routing, RIPng, OSPFv3
|
|

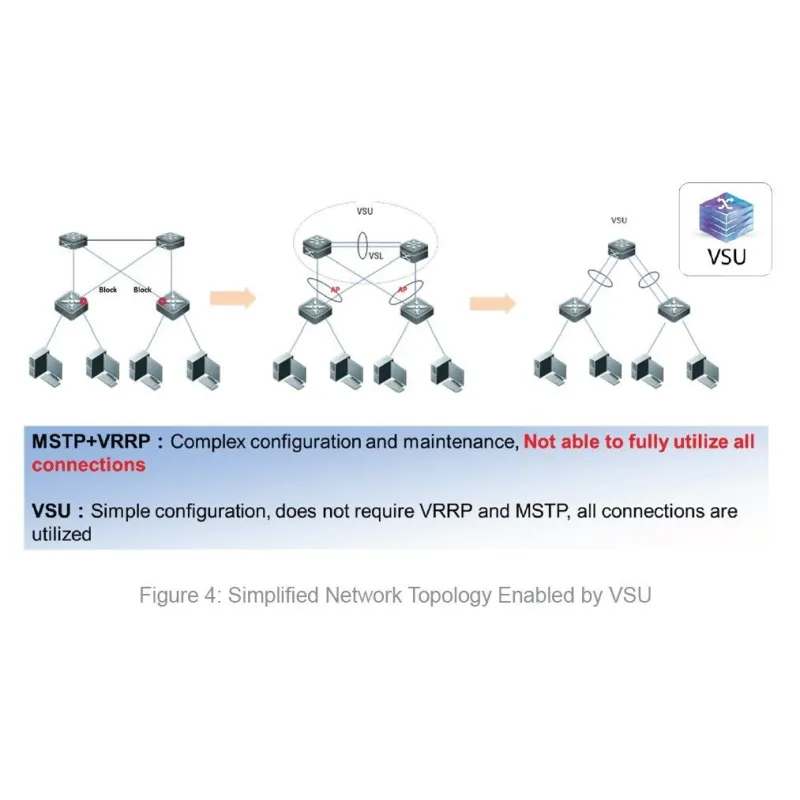

VSU (Virtual Switch Unit)
|
Support (up to 9 stack members，to ensure the effectiveness of the use, 4 members are recommended)
|
|
Zero Configuration
|
CWMP(TR069)
|
|
Reliability
|
RAS
VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)
|
|
Manageability
|
SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1, 2, 3, 9), SSH, Syslog/Debug, RSPAN/ERSPAN, NTP/SNTP, FTP, TFTP, Web, SFLOW，support cable detection and port sleep mode
|
|
Smart Temperature Control
|
Fanless
|
|
Other Protocols
|
FTP, TFTP, DNS client, DNS static
|
|
Dimensions
(W x D x H) (mm)
|
440 × 260 × 43.6
|
|
Rack Height
|
1RU
|
|
Weight
|
≤3.5kg
|
|
MTBF
|
482560 hours
|
|
Lightning Protection
|
6KV
|
|
Power Supply
|
AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50 to 60Hz
HVDC input:
Input voltage range: 192V to 290V DC
|
|
Power Consumption
|
≤24W
|
|
Temperature
|
Operating temperature: 0°C to 50°C
|
|
Storage temperature: -40°C to 70°C
|
|
Humidity
|
Operating humidity: 10% to 90%RH
|
|
Storage humidity: 5% to 95%RH
|
|
Operating Altitude
|
-500m to 5,000m
|
|
Safety Standards
|
IEC 60950-1,EN60950-1
|
|
Emission Standards
|
EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
|
|
ประกัน
|
3 ปี
|
