Product Specification |

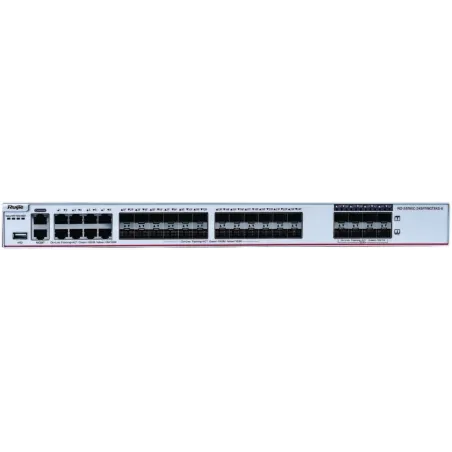

Overview | Ruijie RG-S5760C-24SFP/8GT8XS-X L3-Managed Switch 24 Port SFP, 8 Port SFP+ 10Gbps และ 8 Port Lan (Combo), รองรับ Dynamic Routing OSPF BGP 24K Routing Table, รองรับ Dynamic Routing OSPF BGP, L3 Multicast |
Fixed Ports | 24 x Gigabit SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports, 2 power module slots |
Management Port | 1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard |
Expansion Slot | Single expansion slot is reserved to for service modules |
Switching Capacity | 880 Gbps/7.92 Tbps |
Packet Forwarding Rate | 426 Mpps/600 Mpps |
MAC Address | 64K |
ARP Table | 24K |
Routing Table Size (IPv4/IPv6) | 24K (IPv4/IPv6) |
Product Features | |
VLAN | The following are supported:
4K 802.1Q VLAN
Port based VLAN
Private VLAN
Voice VLAN
GVRP |
QinQ | Basic QinQ
Flexible QinQ |
Link Aggregation | LACP(802.3ad) |
Spanning Tree | The following are supported:
STP, RSTP, and MSTP |
DHCP | The following are supported:
DHCP Server
DHCP Client
DHCP Snooping
DHCP Relay
IPv6 DHCP Server
IPv6 DHCP Snooping
IPv6 DHCP Client
IPv6 DHCP Relay |
Multiple Spanning Tree Protocol (MSTP) Instances | 64 |
Maximum Aggregation Port (AP) | 128 |
IPv6 Basic Protocol | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, stateless auto-configuration, and Path MTU Discovery |
IP Routing | The following are supported:
Static routing
RIP and RIPng
OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6
BGP4, and BGP4+
Equivalent routing
Packet-based load balancing, and flow-based load balancing
MCE |
Multicast | The following are supported:
IGMP v1, v2, v3, and IGMP proxy
IGMP v1, v2 and v3 Snooping
IGMP filtering, and IGMP fast-leave
PIM-DM, PIM-SM, and PIM-SSM
MLD Snooping, and MLD
PIM for IPv6 |
MPLS | MPLS L3VPN |
ACL | The following flexible and diversified hardware ACLs are supported:
Standard IP ACLs (IP-based hardware ACL)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Time-based ACLs
Expert-level ACLs (hardware ACLs based on flexible combinations of Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL80
IPv6 ACLs |
QoS | The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, DRR, SP+DRR, RED/WRED queue scheduling mechanisms |
Security Features | The following are supported:
3-tuple binding (IP address, MAC address, and port)3-tuple binding (IPv6 address, MAC address, and port)
Filtering of invalid MAC addresses
Port- and MAC-based 802.1x authentication MAB authentication
Portal authentication and Portal 2.0 authentication
ARP-check
DAI
ARP packet rate limiting
Gateway ARP spoofing prevention
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+ |
Security Features | AAA for device login management
SSH
BPDU Guard
IP Source Guard
CPP, and NFPP
Port protection |
Management Features | SNMP, CLI (Telnet/Console), RMON, SSH, Syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, and Traceroute v6
This switch supports sFlow, and samples its traffic information by using the random sampling technology of data flows. |
High Reliability | The following are supported:
VSU (virtualization technology, which virtualizes multiple devices into one), GR for RIP/OSPF/BGP and other
routing protocols, BFD detection, ERPS (G.8032), REUP, RLDP, power supply 1+1 backup, and the hotswappable function supported on the power supply |
Zero Configuration | CPE WAN Management Protocol (CWMP(TR069)) |
PoE | Unsupported |
Dimensions (W × D × H) | 442 mm × 340 mm × 44 mm |
Rack Height | 1RU |
MTBF (hours) | >200K |
Power Supply | AC input:
Rated voltage range: 100 V to 240 V
Maximum voltage range: 90 V to 264 V
Frequency: 50/60 Hz
HVDC input:
Rated voltage range: 240 V
Maximum voltage range: 192 V to 288 V |
Power Consumption (full load) | 77 W |
Fan | 2 built-in fans
Fan speed regulating and alarm function |
Temperature Alarm | Supported |
Temperature | Operating temperature: 0oC to 45oC(without an expansion card), 0oC to 40oC (with an expansion card)
Storage temperature: -40oC to 70oC |
Relative Humidity | Operating humidity: 5% to 95%(no condensation)
Storage humidity: 5% to 95% |
Operating Altitude | 500m to 5,000m |
Lightening Protection on Communication Port | 6kV (Common Mode) |
Lightning Protection on Power Port | Common Mode 6KV/Differential Mode 6KV |
ประกัน | 3 ปี |
