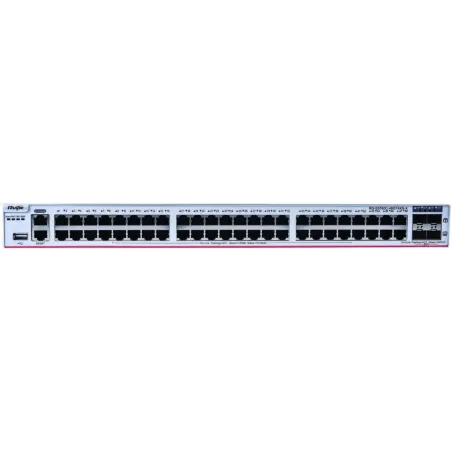

Ruijie RG-S5760C-48GT4XS-X Full L3-Managed Gigabit Switch 48 Port, 4 Port SFP+

Product Specification

Overview

Ruijie RG-S5760C-48GT4XS-X Full L3-Managed Gigabit Switch 48 Port, 4 Port SFP+ 10Gbps

24K Routing Table, รองรับ Dynamic Routing OSPF BGP, L3 Multicast

Fixed Ports

48 x 10/100/1000BASE-T,

4 x 1G/10G SFP+ ports,

2 power module slots

Management Port

1 MGMT port, 1 console port, and 1 USB port, compliant with USB2.0 standard

Expansion Slot

Single expansion slot is reserved to for service modules

Switching Capacity

880 Gbps/7.92 Tbps

Packet Forwarding Rate

402 Mpps/600 Mpps

MAC Address

64K

ARP Table

24K

Routing Table Size (IPv4/IPv6)

24K (IPv4/IPv6)

Product Features

VLAN

The following are supported:
4K 802.1Q VLAN
Port based VLAN
Private VLAN
Voice VLAN
GVRP

QinQ

Basic QinQ
Flexible QinQ

Link Aggregation

LACP(802.3ad)

Spanning Tree

The following are supported:
STP, RSTP, and MSTP

DHCP

The following are supported:
DHCP Server
DHCP Client
DHCP Snooping
DHCP Relay
IPv6 DHCP Server
IPv6 DHCP Snooping
IPv6 DHCP Client
IPv6 DHCP Relay

Multiple Spanning Tree Protocol (MSTP) Instances

64

Maximum Aggregation Port (AP)

128

IPv6 Basic Protocol

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, stateless auto-configuration, and Path MTU Discovery

IP Routing

The following are supported:
Static routing
RIP and RIPng
OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6
BGP4, and BGP4+
Equivalent routing
Packet-based load balancing, and flow-based load balancing
MCE

Multicast

The following are supported:
IGMP v1, v2, v3, and IGMP proxy
IGMP v1, v2 and v3 Snooping
IGMP filtering, and IGMP fast-leave
PIM-DM, PIM-SM, and PIM-SSM
MLD Snooping, and MLD
PIM for IPv6

MPLS

MPLS L3VPN

ACL

The following flexible and diversified hardware ACLs are supported:
Standard IP ACLs (IP-based hardware ACL)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs)
MAC-based extended ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type)

Time-based ACLs
Expert-level ACLs (hardware ACLs based on flexible combinations of Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time)
ACL80
IPv6 ACLs

QoS

The following are supported:
Port traffic identification
Port traffic rate limiting
802.1p/DSCP/ToS traffic classification
Eight priority queues per port
SP, DRR, SP+DRR, RED/WRED queue scheduling mechanisms

Security Features

The following are supported:
3-tuple binding (IP address, MAC address, and port)3-tuple binding (IPv6 address, MAC address, and port)
Filtering of invalid MAC addresses
Port- and MAC-based 802.1x authentication MAB authentication
Portal authentication and Portal 2.0 authentication
ARP-check
DAI
ARP packet rate limiting
Gateway ARP spoofing prevention
Broadcast storm suppression
Hierarchical management of administrators and password protection
RADIUS and TACACS+

Security Features

AAA for device login management
SSH
BPDU Guard
IP Source Guard
CPP, and NFPP
Port protection

Management Features

SNMP, CLI (Telnet/Console), RMON, SSH, Syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnet v6, FTP/TFTP v6, DNS v6, NTP for v6, and Traceroute v6
This switch supports sFlow, and samples its traffic information by using the random sampling technology of data flows.

High Reliability

The following are supported:
VSU (virtualization technology, which virtualizes multiple devices into one), GR for RIP/OSPF/BGP and other
routing protocols, BFD detection, ERPS (G.8032), REUP, RLDP, power supply 1+1 backup, and the hotswappable function supported on the power supply

Zero Configuration

CPE WAN Management Protocol (CWMP(TR069))

PoE

Unsupported

Dimensions (W × D × H)

442 mm × 340 mm × 44 mm

Rack Height

1RU

MTBF (hours)

>200K

Power Supply

AC input:
Rated voltage range: 100 V to 240 V
Maximum voltage range: 90 V to 264 V
Frequency: 50/60 Hz
HVDC input:
Rated voltage range: 240 V
Maximum voltage range: 192 V to 288 V

Power Consumption (full load)

70 W

Fan

2 built-in fans
Fan speed regulating and alarm function

Temperature Alarm

Supported

Temperature

Operating temperature: 0oC to 45oC(without an expansion card), 0oC to 40oC (with an expansion card)
Storage temperature: -40oC to 70oC

Relative Humidity

Operating humidity: 5% to 95%(no condensation)
Storage humidity: 5% to 95%

Operating Altitude

500m to 5,000m

Lightening Protection on Communication Port

6kV (Common Mode)

Lightning Protection on Power Port

Common Mode 6KV/Differential Mode 6KV

ประกัน

3 ปี
