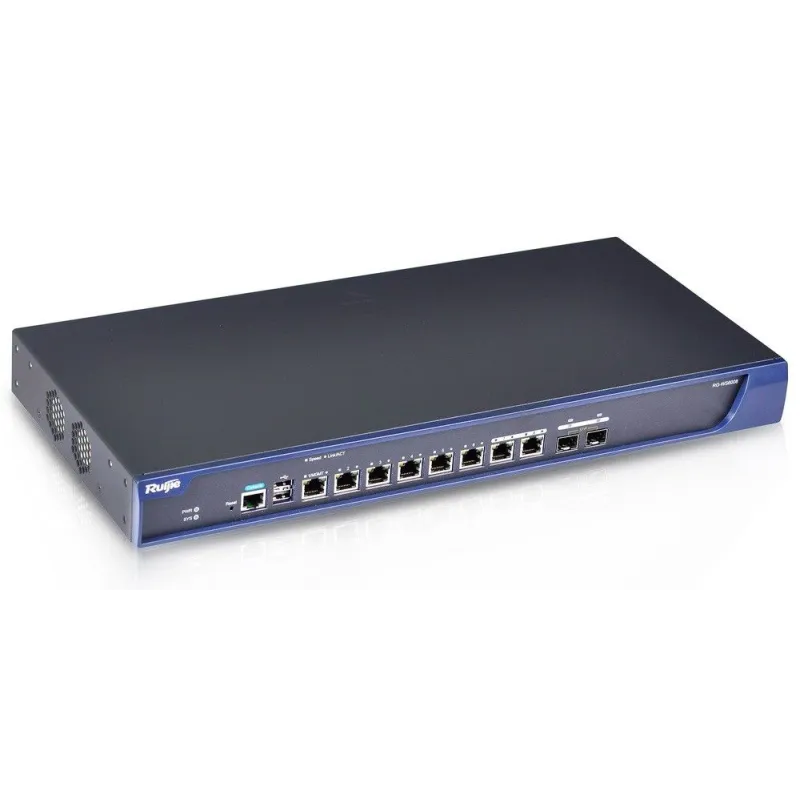

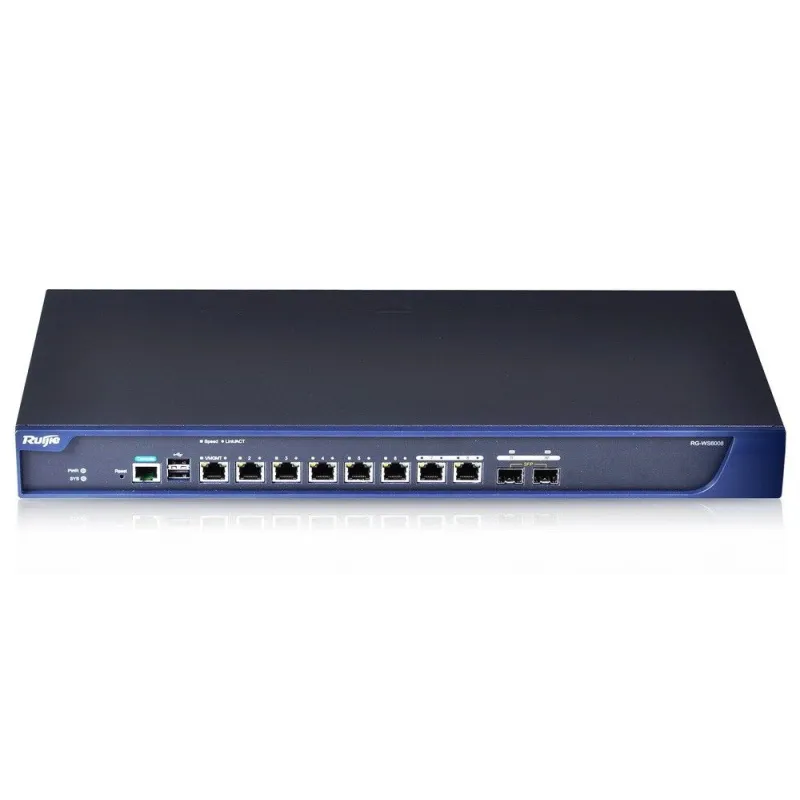

Ruijie RG-WS6008 Product Specification |
Overview | Ruijie RG-WS6008 Next-Gen Wireless Controller รองรับการ Managed Access Point ได้ 32 AP (Defualt License) สูงสุด 224 APs และ 448 Wall AP เมื่อมีการ Upgrade License รองรับการเชื่อมต่อได้ 6,400 Client พร้อม 6 Port Lan Gigabit, 2 Port SFP |
| Model | |
| Model | |
| Interfaces |
| Service Ports | 6x 1000BASE-T ports
2x 1000BASE-T/1000BASE-X ports (combo) |
| Console Ports | 1x Console Port |
| USB Ports | 2x USB ports |
| Performance |
| Switching Capacity | N/A |
| Packet Forwarding Rate | N/A |
| Default Number of Manageable APs | 32 |
| Maximum Number of Manageable APs | 224 APs or 448 wall APs (with license upgrade) |
| Maximum Number of Configurable APs | 2,048 |
| Maximum Number of Clients | 6,400 |
| 802.11 Performance | 8Gbps |
| VLAN | 4,094 |
| Maximum Number of Clients Supported by the Built-in Portal | 1,500 |
| ACL | 64K |
| Number of Wireless Users | 6,400 |
| MAC Address Table | 16K |
| Local Authentication | 300 wireless clients |
| ARP Table | 12K |
| IPv6 Neighbor Table | 10K |
| Inter-AC Roaming Switch Time | ≤50ms |
| Power |
| Power Supply | -Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz |
| Power Consumption | <40W |
| LAN |
| 802.1Q VLAN | Support |
| PoE | N/A |
| QinQ | N/A |
| ACL | Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
| QoS | N/A |
| Bandwidth control | Support |
| WLAN |
| LAN Protocols | ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s |
| 802.11 LAN Protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac |
| Pre-AX | Supported |
| CorrectLink | Supported |
| AirReorder | Supported |
| CAPWAP | Layer 2/Layer 3 network topology between an AP and AC
Enable an AP to automatically discover an accessible AC
Enable an AP to automatically upgrade software version from an AC
Enable an AP to automatically download configurations from an AC
Network Address Translation (NAT) traversal |
| Roaming | Intra-AC roaming, Inter-AC roaming |
| Forwarding | Local forwarding, Centralized forwarding |
| Wireless QoS | AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
| User Isolation | AC-based user isolation
AP-based user isolation
WLAN-based user isolation |
| Reliability | Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
| STA Management | AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
| STA RSSI Threshold | 0 to 100 |
| STA Idle Timeout | 60 to 86,400 seconds |
| STA Average Data Rate Threshold | 8 to 819,200 with the accuracy of 8Kbps |
| Adjusting Transmit Power of Beacon and Probe Response | Support |
| Offline Syslog | Support |
| Security |
| IPv4/v6 Security | Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication |
| PPSK | Supported |
| Virtual AP | Supported |
| Virtual AC | Supported |
| 802.11 Security and Encryption | Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
| AAA | IEEE 802.1X |
| CPP | Support |
| NFPP | Support |
| WIDS/WIPS | Support |
| Internet Protocols |
| IPv4 Protocols | Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client |
| IPv6 Protocols | DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel
Manual configuration address, automatic local address |
| IPv4 Routing | Static routing, OSPF |
| IPv4 Routing Table Capacity | 8K |
| IPv4 Static Routing Table Capacity | 1K |
| IPv6 Routing | Static routing |
| IPv6 Routing Table Capacity | 1K |
| IPv6 Static Routing Table Capacity | 1K |
| Management and Maintenance |
| Network Management | SNMP v1/v2c/v3, Web management, Syslog |
| Network Management Platform | Web management (Smart-web), RG-SNC management, Heat Map diagram |
| WIS Integration | Supported |
| User Access Management | Login via console port
Login via Telnet
Login via SSH
Upload to FTP |
| Physical Specification & Others |
| Lock | Support |
| LED Indicators | Status, Link/ACT |
| Dimensions (W x D x H) (mm) | 440 × 200 × 43.6 |
| Rack Height | 1RU |
| Weight | 2kg |
| Environmental Specifications |
| Temperature | Operating Temperature: 0ºC to 45ºC
Storage Temperature: -40ºC to 70ºC |
| Humidity | Operating Humidity: 10% to 90%RH (non-condensing)
Storage Humidity: 5% to 95%RH (non-condensing) |
| Operating Altitude | 0-3000m |
| Certification |
| EMC Standard | GB9254
EN301 489 |
| Safety Standard | GB4943
EN/IEC 60950-1 |
| รับประกัน | 3 ปี |
