    SFP Module MINI-GBIC-LH40-SM1310 Ruijie 1000BASE-SX 40Km
    • SFP Module MINI-GBIC-LH40-SM1310 Ruijie 1000BASE-SX 40Km
    • SFP Module MINI-GBIC-LH40-SM1310 Ruijie 1000BASE-SX 40Km
    • SFP Module MINI-GBIC-LH40-SM1310 Ruijie 1000BASE-SX 40Km
    • SFP Module MINI-GBIC-LH40-SM1310 Ruijie 1000BASE-SX 40Km

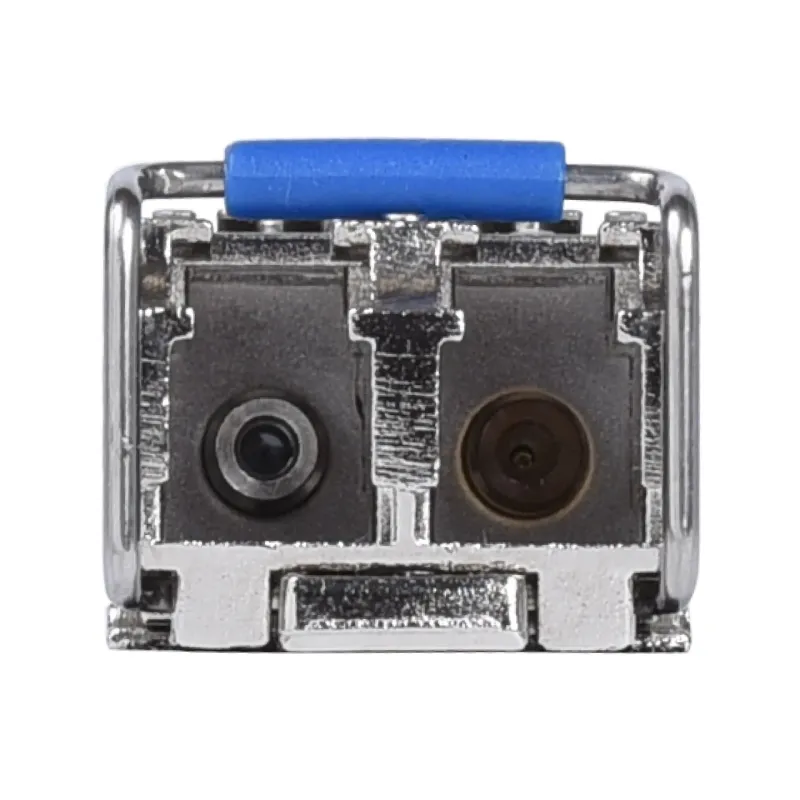

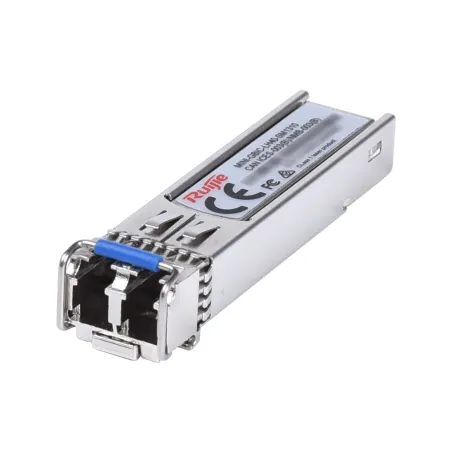

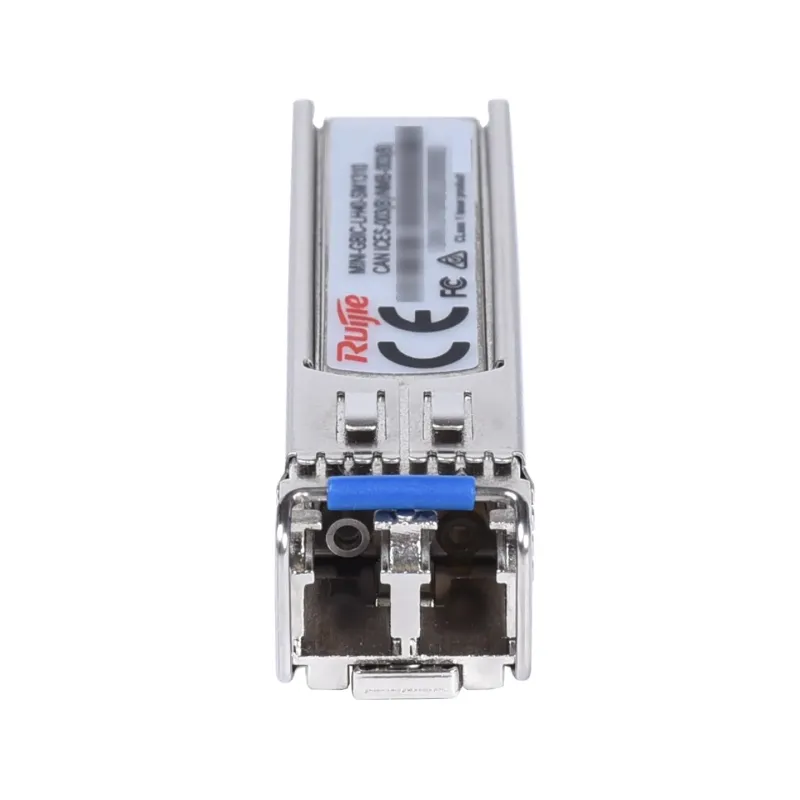

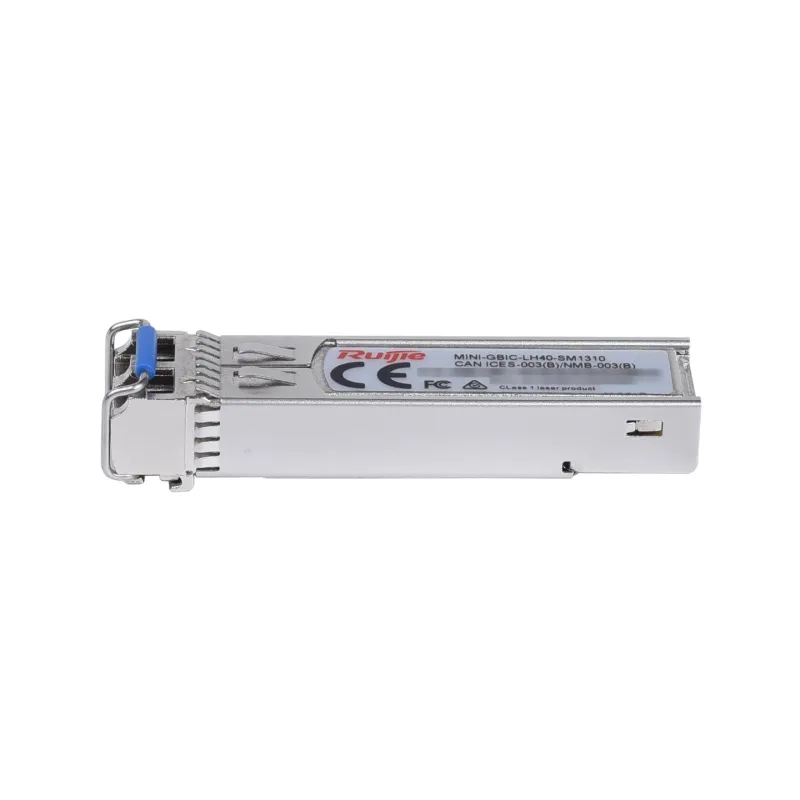

    SFP Module MINI-GBIC-LH40-SM1310 Ruijie 1000BASE-SX 40Km

    Ruijie Networks

    SFP Module MINI-GBIC-LH40-SM1310

    Ruijie 1000BASE-LX SFP 1000BASE-SX SFP 1310-nm 40-km DDM Duplex LC SMF Optical Transceiver Module รองรับ Network Switch Ruijie/Reyee ทุกรุ่น

    ฿0.00
    ยังไม่ได้รวมภาษี
    จำนวน
    20 รายการ


    ตัวแทนจำหน่าย Ruijie อย่างเป็นทางการ พร้อมราคาส่วนลดพิเศษ


    Support / ติดตั้งด้วยทีมงาน
    Certificate


    สอบถามข้อมูลสินค้าเพิ่มเติม

    LINE ID: @sysnet  โทร: 02 102 4284

    Click ต้องการใบเสนอราคา

    close

    แบบฟอร์มขอใบเสนอราคา



    Rating:
    (0)
    รายละเอียด

    Ruijie Optical Module Hardware Installation and Reference Guide (V1.0)
    Ruijie RG 1000BASE Series Optical Modules Datasheet

    SFP Module GE-SFP-LH40-SM1310-BIDI 1000BASE-LX SFP 1310nm-TX/1550nm-RX 40-km DDM Simplex LC SMF Transceiver Module

    Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)

    Highlight Features

    • Max. power consumption 1.5 W
    • Saving half fiber by using only one fiber for transmiting and receiving
    • Hot pluggable SFP MSA compliant
    • Digital optical monitoring capability for strong diagnostic capabilities
    • Compliant with IEEE 802.3z Gigabit Ethernet
    • Class 1 Laser safety and RoHS compliant

    Product Specification

    Overview

    SFP Module GE-SFP-LH40-SM1310-BIDI Ruijie 1000BASE-LX SFP 1310nm-TX/1550nm-RX 40-km DDM Simplex LC SMF Transceiver Module ใช้คู่กับ GE-SFP-LH40-SM1550-BIDI รองรับ Network Switch Ruijie/Reyee ทุกรุ่น

    Data rate

    1.25 Gbps

    Form factor

    SFP

    Connector type

    BIDI LC

    Cable type

    SMF

    Fiber end face finish type

    Ultra Physical Contact (UPC)

    Transmitter type

    DFB

    Receiver type

    PIN

    Reach

    40 km (131,233.60 ft.)

    Bit error ratio (BER)

    1.00E-12

    Data diagnosis-capable (DDM/DOM)

    Yes

    Power consumption

    ≤ 1.5 W

    Transmitter Optical Parameters

    Wavelength

    1310 nm TX
    1550 nm RX

    Max. transmit power (AVG)

    0 dBm

    Min. transmit power (AVG)

    -5 dBm

    Min. extinction ratio

    ≥ 23 dB

    Receiver Optical Parameters

    Receive sensitivity (OMA)

    < –20 dBm

    Overload optical power (AVG)

    -3 dBm

    Environment and Reliability

    Operating temperature

    0°C to 70°C (32°F to 158°F)

    Operating humidity

    5% RH to 95% RH

    Storage temperature

    -40°C to +85°C (-40°F to +185°F)

    Storage humidity

    5% RH to 95% RH

    Dimensions and Weight

    Dimensions (W x D x H)

    56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)

    Weight

    35 g (0.08 lbs.)
