Ruijie Optical Module Hardware Installation and Reference Guide (V1.0)

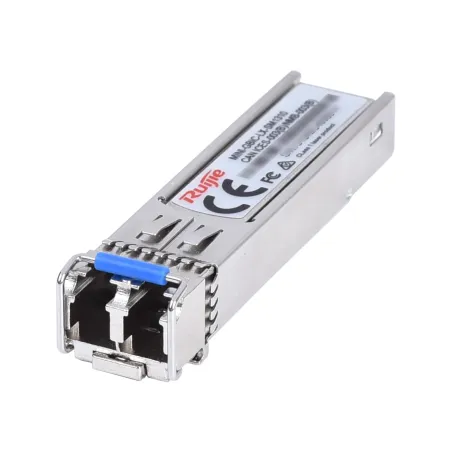

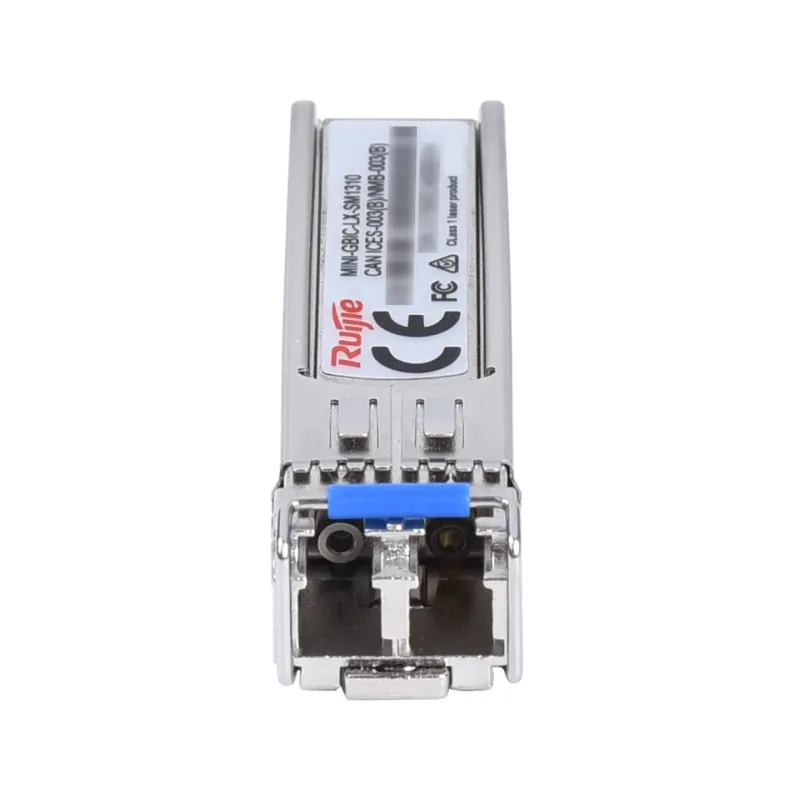

SFP Module MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)
Highlight Features
Max. power consumption 1.5 W Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant
Product Specification
Overview
Ruijie MINI-GBIC-LX-SM1310 SFP Module 1000BASE-LX SFP 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module รองรับ Network Switch Ruijie/Reyee ทุกรุ่น
Data rate
1.25 Gbps
Form factor
SFP

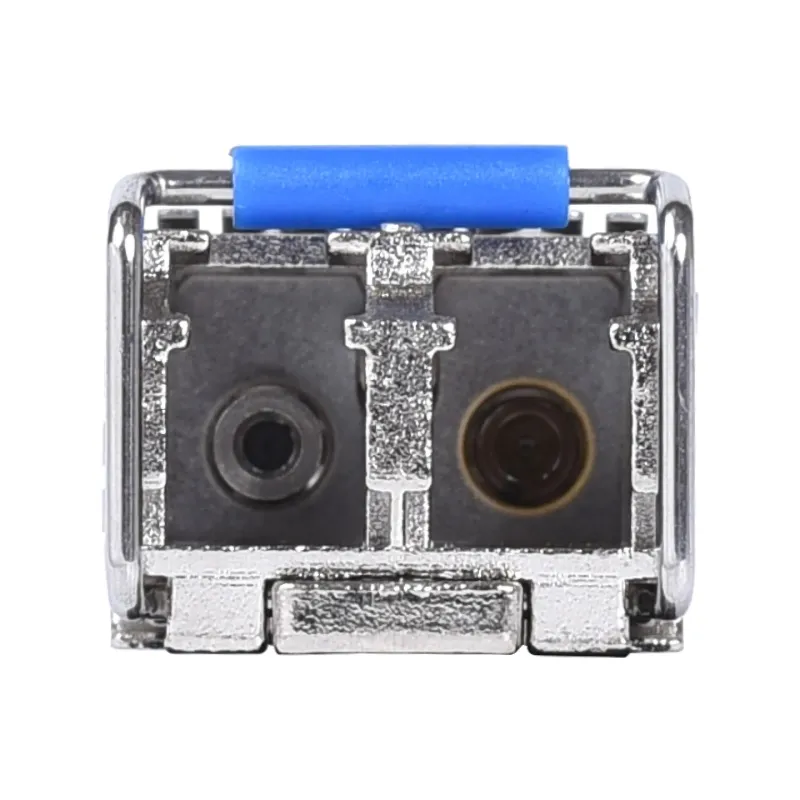

Connector type
Duplex LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB
Receiver type
PIN
Reach
10 km (32,808.40 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters
Wavelength
1310 nm
Max. transmit power (AVG)
-3 dBm
Min. transmit power (AVG)
-11 dBm
Min. extinction ratio
≥ 9 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –19 dBm
Overload optical power (AVG)
-3 dBm
Environment and Reliability
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
5% RH to 95% RH
Storage temperature
-40°C to +85°C (-40°F to +185°F)
Storage humidity
5% RH to 95% RH
Dimensions and Weight
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
