Ruijie Optical Module Hardware Installation and Reference Guide (V1.0)

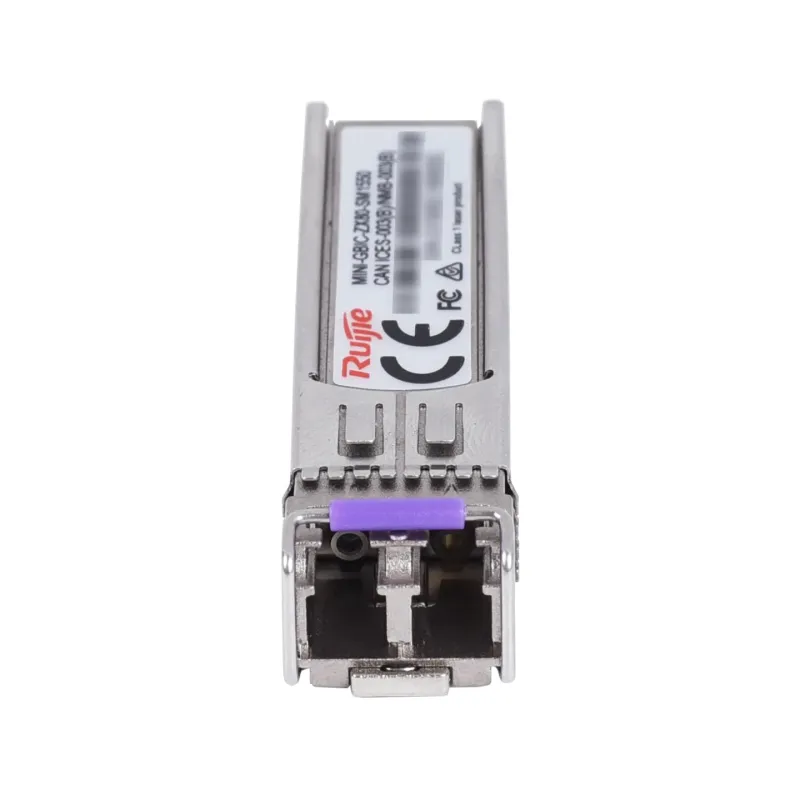

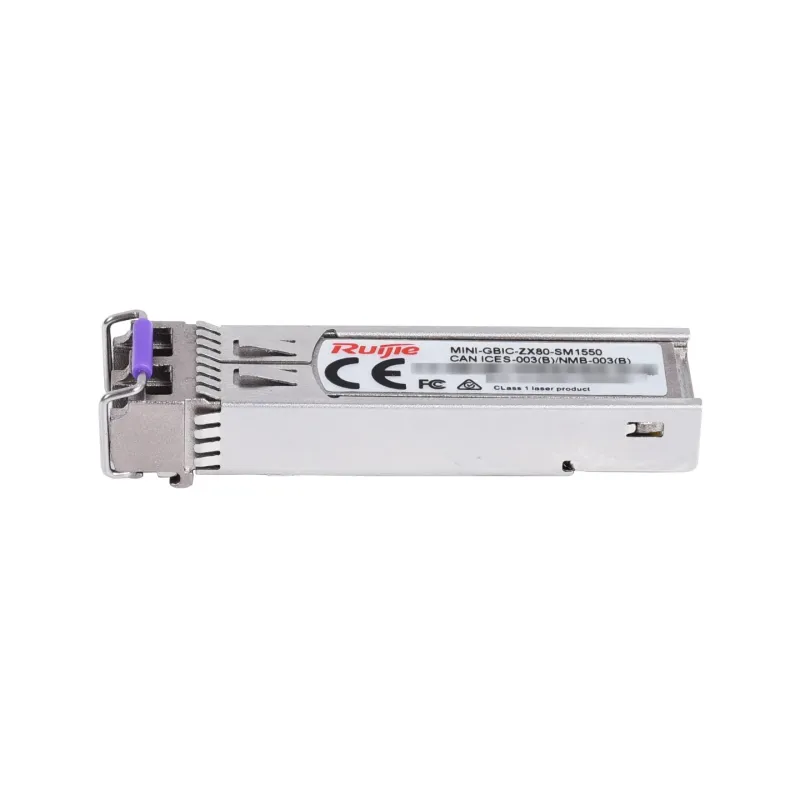

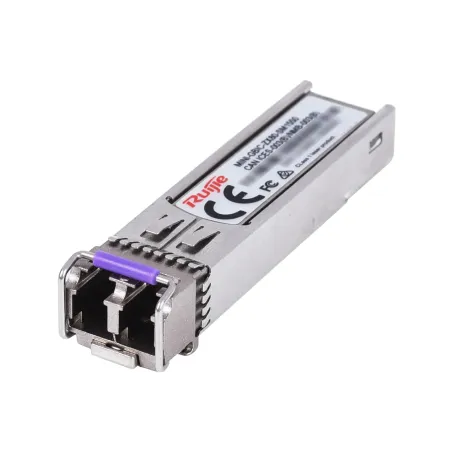

SFP Module MINI-GBIC-ZX80-SM1550 1000BASE-SX SFP 1550-nm 80-km DDM Duplex LC SMF Optical Transceiver Module Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs)
Highlight Features Max. power consumption 1.5 W Hot pluggable SFP MSA compliant Digital optical monitoring capability for strong diagnostic capabilities Compliant with IEEE 802.3z Gigabit Ethernet Class 1 Laser safety and RoHS compliant
Product Specification Overview
Ruijie MINI-GBIC-ZX80-SM1550 1000BASE-SX SFP 1550-nm 80-km DDM Duplex LC SMF Optical Transceiver Module รองรับ Network Switch Ruijie/Reyee ทุกรุ่น
Data rate
1.25 Gbps
Form factor
SFP
Connector type

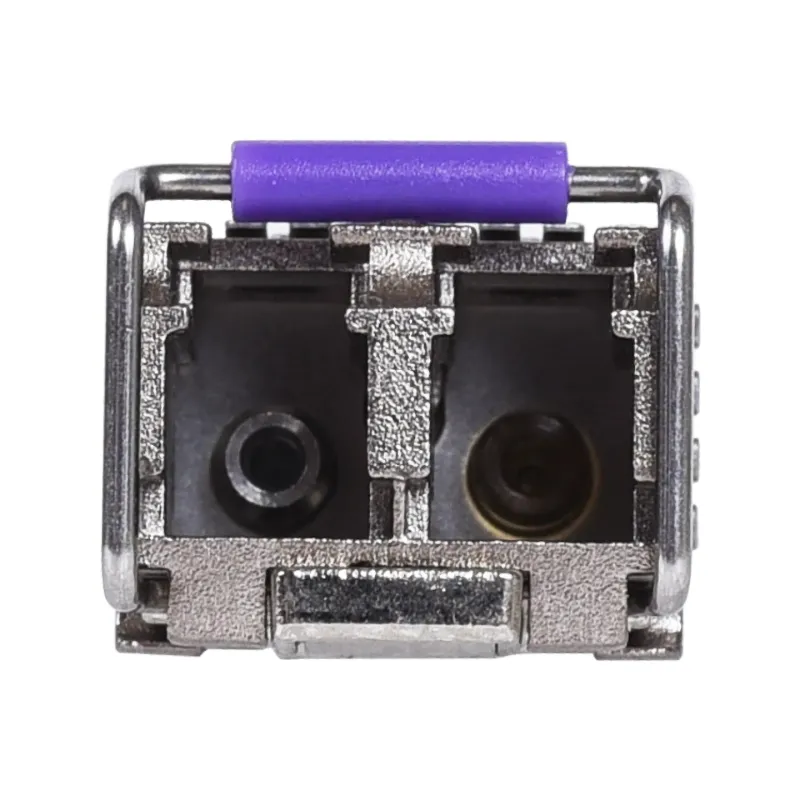

Duplex LC
Cable type
SMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
DFB Receiver type
PIN
Reach
80 km (262,467.19 ft.)
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters Wavelength
1310 nm
Max. transmit power (AVG)
5 dBm
Min. transmit power (AVG)
0 dBm
Min. extinction ratio
≥ 9 dB
Receiver Optical Parameters Receive sensitivity (OMA)
< –27 dBm
Overload optical power (AVG)
-3 dBm
Environment and Reliability Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
5% RH to 95% RH
Storage temperature
-40°C to +85°C (-40°F to +185°F)
Storage humidity
5% RH to 95% RH
Dimensions and Weight Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
รายละเอียดสินค้า
สินค้ามีในสต็อค 10 รายการ
