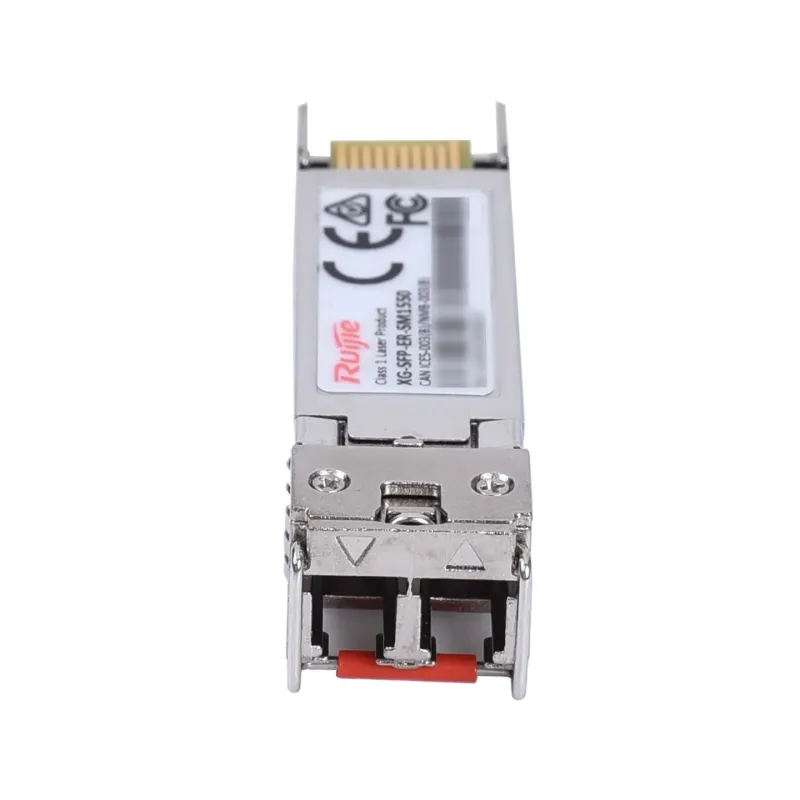

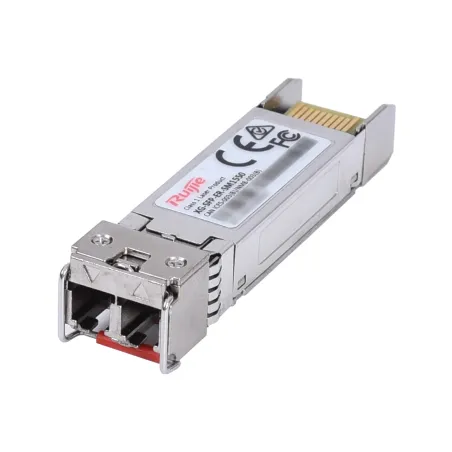

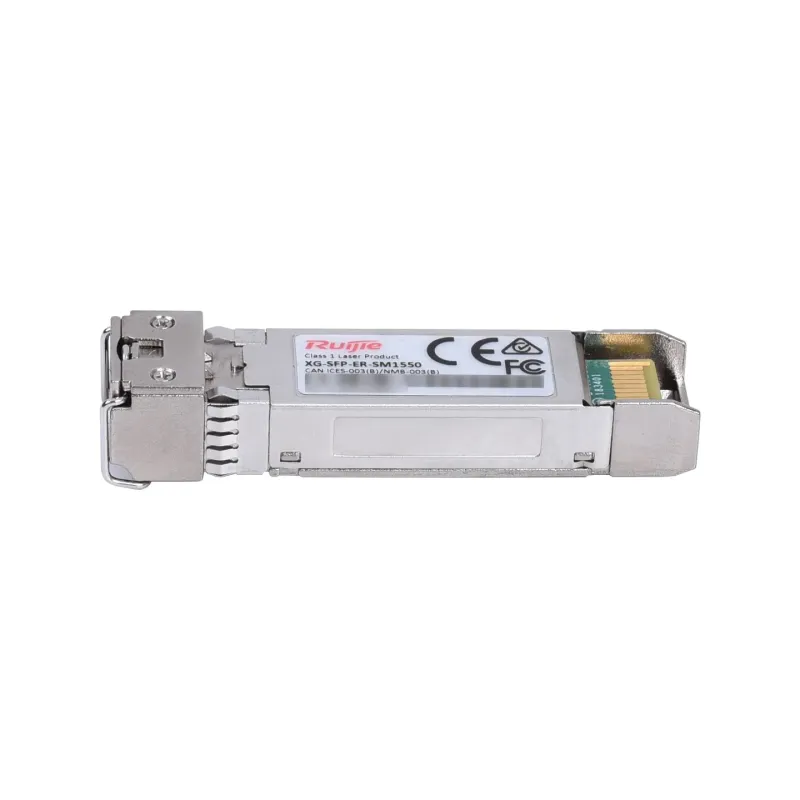

SFP Module XG-SFP-ER-SM1550 10GBASE-ER SFP+ 1550-nm 40-km DOM Duplex LC SMF Optical Transceiver Module
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection
Highlight Features
- Max. power consumption 1.5 W
- Hot pluggable SFP+ MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Product Specification |
| Overview | Ruijie XG-SFP-ER-SM1550 10GBASE-ER SFP+ 1550-nm 40-km DOM Duplex LC SMF Optical Transceiver Module รองรับ Network Switch Ruijie/Reyee ทุกรุ่น |
| Data rate | 10.3125 Gbps |
| Form factor | SFP+ |

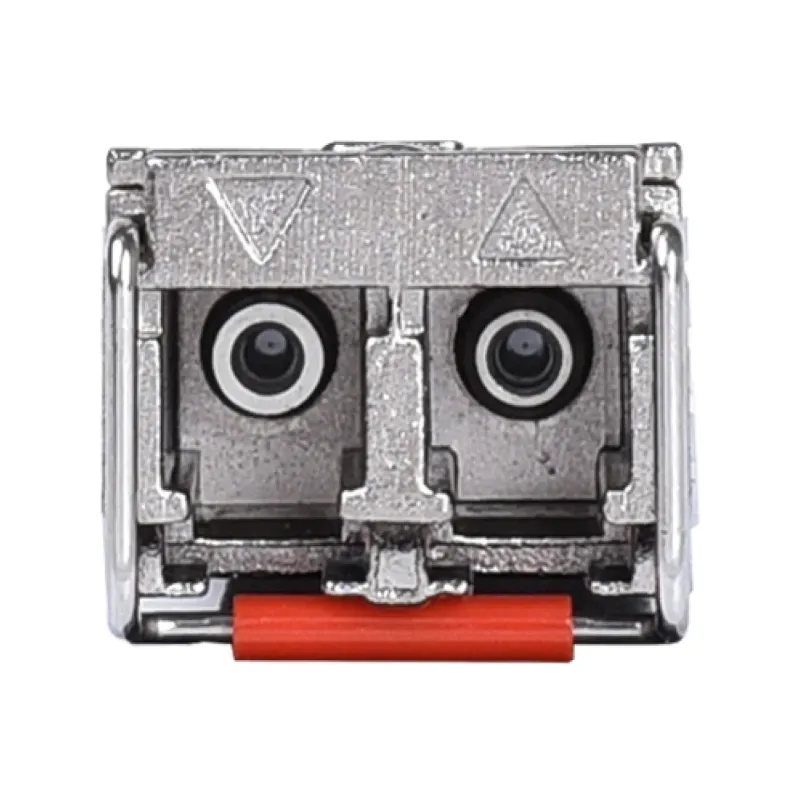

| Connector type | Duplex LC |
| Cable type | SMF |
| Fiber end face finish type | Ultra Physical Contact (UPC) |
| Transmitter type | DFB |
| Receiver type | PIN |
| Reach | 40 km (131,233.60 ft.) |
| Bit error ratio (BER) | 1.00E-12 |
| Data diagnosis-capable (DDM/DOM) | Yes |
| Power consumption | ≤ 1.5 W |
Transmitter Optical Parameters |
| Wavelength | 1550 nm |
| Max. transmit power (AVG) | 4 dBm |
| Min. transmit power (AVG) | -4.7 dBm |
| Min. extinction ratio | ≥ 3 dB |
Receiver Optical Parameters |
| Receive sensitivity (OMA) | < –14.1 dBm |
| Overload optical power (AVG) | -1 dBm |
Environment and Reliability |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |
| Operating humidity | 10% RH to 90% RH |
| Storage temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage humidity | 10% RH to 90% RH |
Dimensions and Weight |
| Dimensions (W x D x H) | 56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.) |
| Weight | 35 g (0.08 lbs.) |
