Ruijie Optical Module Hardware Installation and Reference Guide (V1.0)

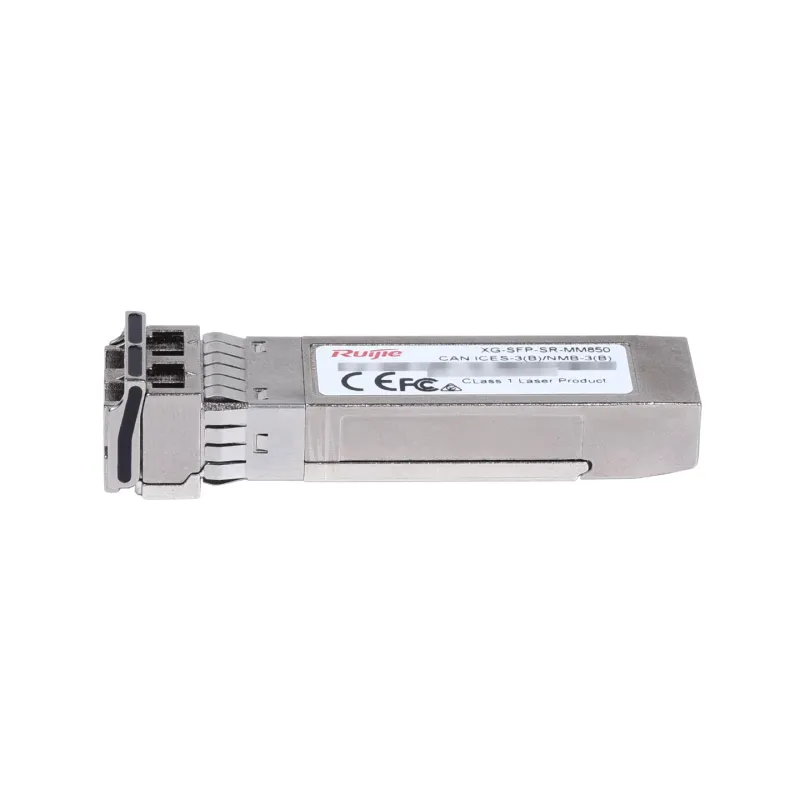

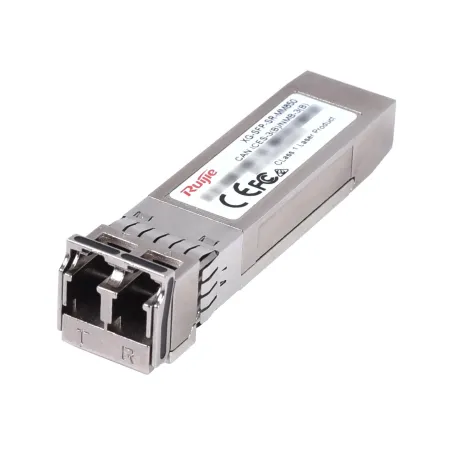

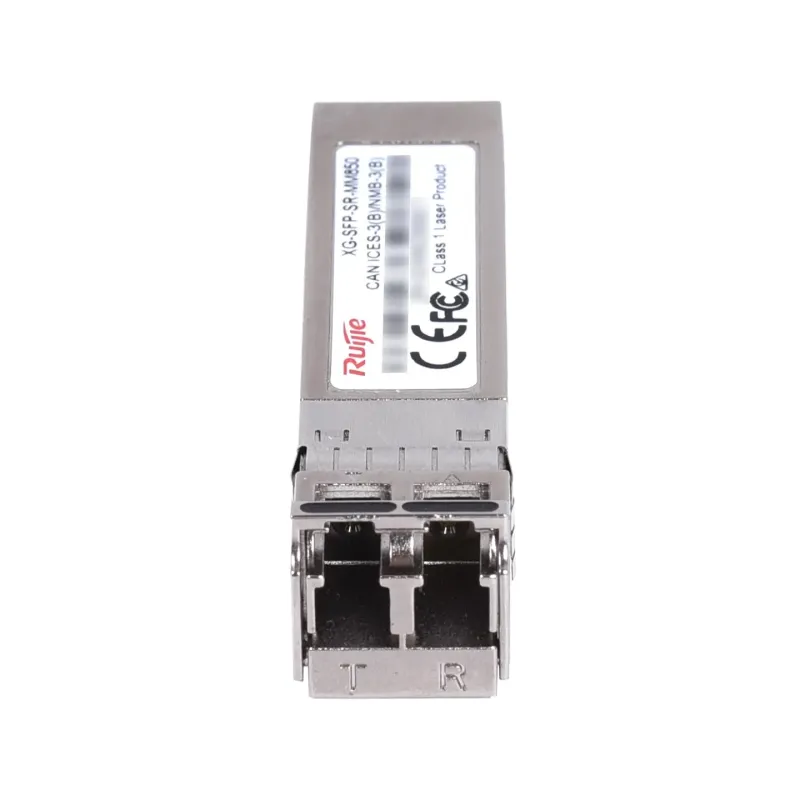

SFP Module XG-SFP-SR-MM850 10GBASE-SR SFP+ 850-nm 300-m DOM Duplex LC MMF Optical Transceiver Module
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection
Highlight Features
Max. power consumption 1.5 W Hot pluggable SFP+ MSA compliant Digital optical monitoring capability for strong diagnostic capabilities Compliant with IEEE 802.3z Gigabit Ethernet Class 1 Laser safety and RoHS compliant
Product Specification
Overview
Ruijie XG-SFP-SR-MM850 10GBASE-SR SFP+ 850-nm 300-m DOM Duplex LC MMF Optical Transceiver Module รองรับ Network Switch Ruijie/Reyee ทุกรุ่น
Data rate
10.3125 Gbps
Form factor
SFP+
Connector type
Duplex LC
Cable type
MMF
Fiber end face finish type
Ultra Physical Contact (UPC)
Transmitter type
VCSEL
Receiver type
PIN
Reach
300 m (984.25 ft. )
Bit error ratio (BER)
1.00E-12
Data diagnosis-capable (DDM/DOM)
Yes
Power consumption
≤ 1.5 W
Transmitter Optical Parameters
Wavelength
850 nm
Max. transmit power (AVG)
-1 dBm
Min. transmit power (AVG)
-7.3 dBm
Min. extinction ratio
≥ 3 dB
Receiver Optical Parameters
Receive sensitivity (OMA)
< –11.1 dBm
Overload optical power (AVG)
-1 dBm
Environment and Reliability
Operating temperature
0°C to 70°C (32°F to 158°F)
Operating humidity
10% RH to 90% RH
Storage temperature
-40°C to +85°C (-40°F to +185°F)
Storage humidity
10% RH to 90% RH
Dimensions and Weight
Dimensions (W x D x H)
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight
35 g (0.08 lbs.)
