Ruijie Optical Module Hardware Installation and Reference Guide (V1.0)
Ruijie RG 10GBASE Series Optical Modules Datasheet

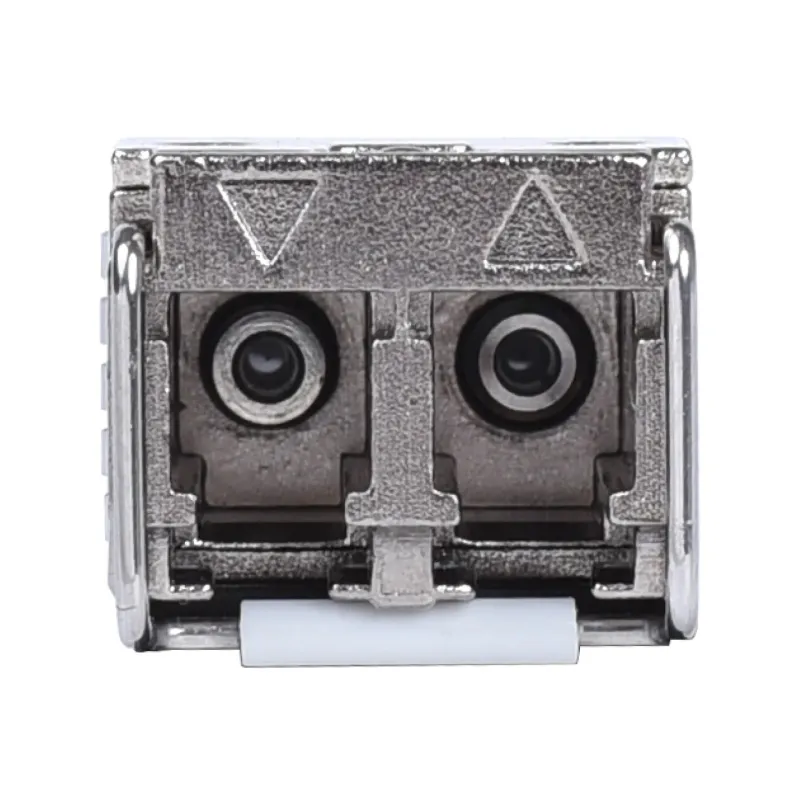

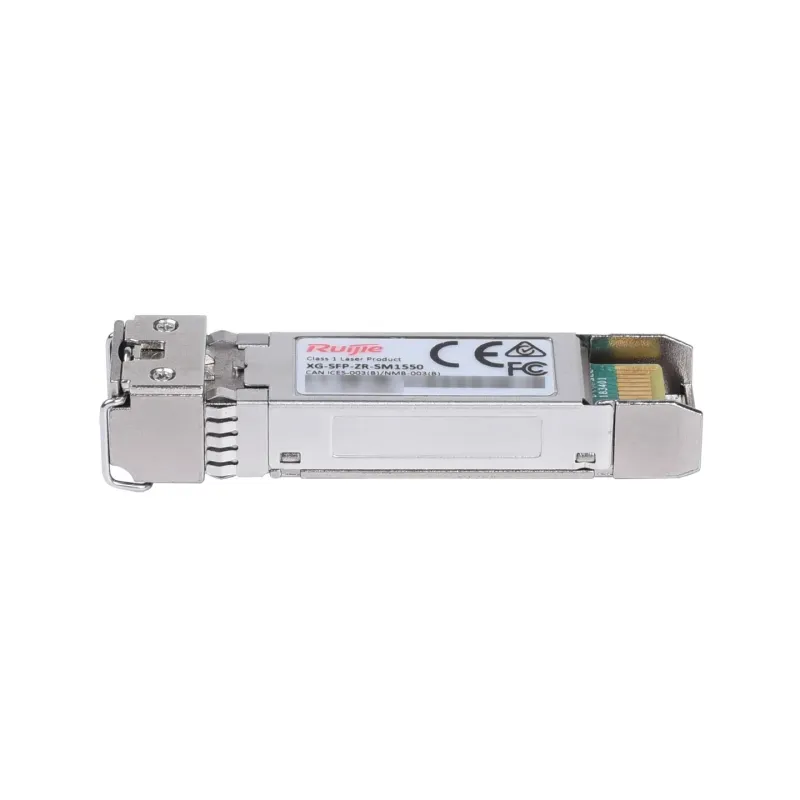

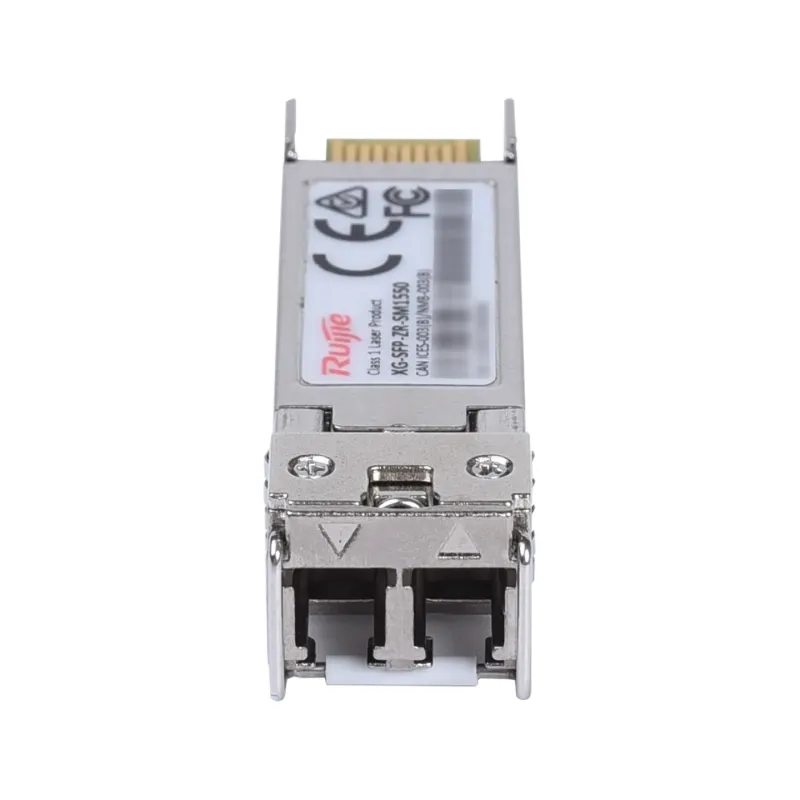

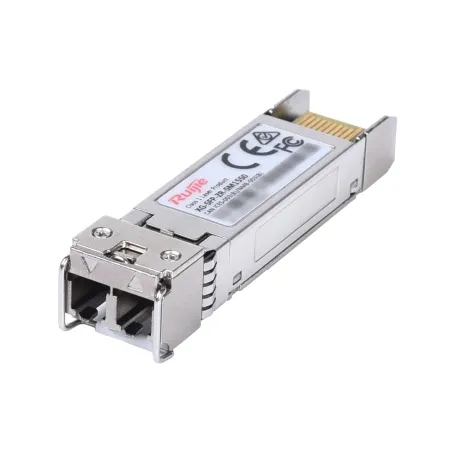

SFP Module XG-SFP-ZR-SM1550 10GBASE-ZR SFP+ 1550-nm 80-km DOM Duplex LC SMF Optical Transceiver Module
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection
Highlight Features
- Max. power consumption 1.5 W
- Hot pluggable SFP+ MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Product Specification
|
|
Overview
|
Ruijie XG-SFP-ZR-SM1550 10GBASE-ZR SFP+ 1550-nm 80-km DOM Duplex LC SMF Optical Transceiver Module รองรับ Network Switch Ruijie/Reyee ทุกรุ่น
|
|
Data rate
|
10.3125 Gbps
|
|
Form factor
|
SFP+
|
|
Connector type
|
Duplex LC
|
|
Cable type
|
SMF
|
|
Fiber end face finish type
|
Ultra Physical Contact (UPC)
|
|
Transmitter type
|
DFB |
|
Receiver type
|
PIN
|
|
Reach
|
80 km (262,467.19 ft.)
|
|
Bit error ratio (BER)
|
1.00E-12
|
|
Data diagnosis-capable (DDM/DOM)
|
Yes
|
|
Power consumption
|
≤ 1.5 W
|
Transmitter Optical Parameters
|
|
Wavelength
|
1550 nm
|
|
Max. transmit power (AVG)
|
4 dBm
|
|
Min. transmit power (AVG)
|
0 dBm
|
|
Min. extinction ratio
|
≥ 8.5 dB
|
Receiver Optical Parameters
|
|
Receive sensitivity (OMA)
|
< –24 dBm
|
|
Overload optical power (AVG)
|
-0.5 dBm
|
Environment and Reliability
|
|
Operating temperature
|
–40°C to +85°C (–40°F to +185°F)
|
|
Operating humidity
|
10% RH to 90% RH
|
|
Storage temperature
|
-40°C to +85°C (-40°F to +185°F)
|
|
Storage humidity
|
10% RH to 90% RH
|
Dimensions and Weight
|
|
Dimensions (W x D x H)
|
56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)
|
|
Weight
|
35 g (0.08 lbs.)
|
