รายละเอียด
AX-Pro DS-PWA64-L-WB Datasheet
AX-Pro DS-PWA64-L-WB Quick Start Guide
AX-Pro DS-PWA64-L-WB User Manual

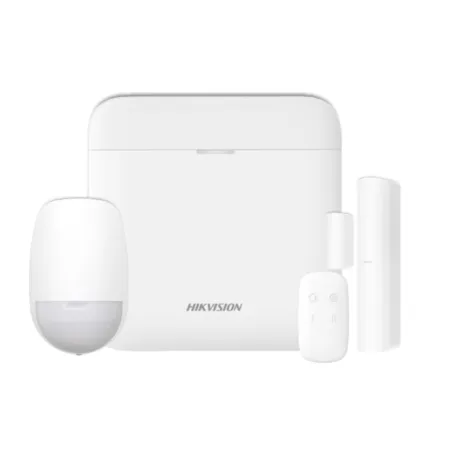

Hikvision AX-Pro DS-PWA64-Kit-WB ชุด Kit เริ่มต้นระบบสัญญาณกันขโมยไร้สาย
ในชุดประกอบด้วย
Wireless Keyfob DS-PKF1-WB * 1
Wireless PIR Detector DS-PDP15P-EG2-WB * 1
Wireless Magnet Detector DS-PDMC-EG2-WB * 1
Product Specification |
Overview | Hikvision AX-Pro DS-PWA64-Kit-WB ชุด Kit เริ่มต้นระบบสัญญาณกันขโมยไร้สาย ในชุดประกอบด้วย Gateway Hub DS-PWA64-L-WB * 1 Wireless Keyfob DS-PKF1-WB * 1 Wireless PIR Detector DS-PDP15P-EG2-WB * 1 Wireless Magnet Detector DS-PDMC-EG2-WB * 1
|
Software features |
Diagnostics via the APP or Web | Supported |
Installer APP for programming | Supported |
Web server for maintenance (offline configuration) | Supported |
Wi-Fi standard | Supported |
Arm modes | Away/Stay |
Firmware upgrade | APP/Web Portal |
Admin | 1 |
Wired network | Supported |
Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
Forced arming with open zones | Supported |
Memory log stored | 5000 |
User | 30 |
User APP for operating | Supported |
Voice prompt | Supported |
Area | 16 |
Automatic arm/disarm timers | Supported |
Hardware features |
RS232 output | Supported |
SIM slot | Sigle |
GPRS on board | Supported |
Loudspeaker built in | Supported |
Electrical characteristics |
Battery type | Built in on board Battery Li |
Power supply | Built in power supply |
Operation temperature | -10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected) |
Battery life span | Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) |
Wireless transmission |
RF frequency | 433 Mhz |
Wireless security | Frequency hoping 128 AES encryption |
Display |
LEDs status | Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power |
General | |
Dimension(WxHxD) | 170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5") |
Shell material | Plastic |
Color | White |
Weight | 557.5 g (19.7 oz) |
Device management |
Tag | 32 |
PIR cam | Supported |
Zones | 64 (up to 48 PIRCAMs) |
Keypad | 8 (including tag reader) |
Wireless sounder | 4 (2 internal+2 external) |
Wireless repeater | 2 |
Keyfob | 32 |
Multi Transmitter | 4 |
Report method |
ARC protocol | SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Supports video verification and remote controlHik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) |
รับประกัน | 2 ปี |
AX Pro System
AX-Pro Wireless Intrusion Alarm System
AX Pro Installation
