Product Specification
|
|
Overview
|

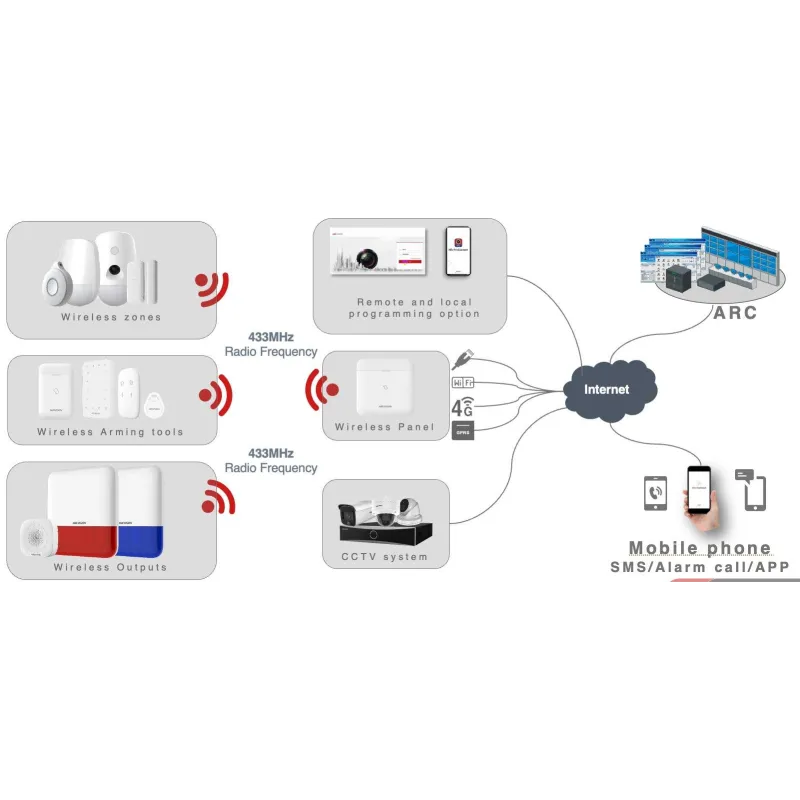

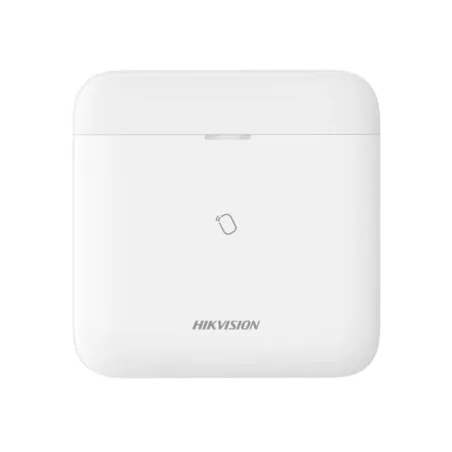

Hikvision AX-Pro DS-PWA64-M-WB Gateway hub เชื่อมต่ออุปกรณ์ Sensor ระบบกันขโมยใช้ย่านความถี่ 433MHz ทำให้ส่งสัญญาณได้ไกล รองรับเชื่อมต่อเครือข่าย Broadband Internet / WIFI / SIM Card (3G/4G) เพื่อ Monitor หรือ ส่ง Alarm, มี Battery สำรอง
|
|
Software features
|
|
|
Tag
|
48 |
|
Area
|
32 |
|
Zones
|
96 (up to 48 PIRCAMs)
|
|
Onboard video clips
|
4 |
|
User
|
46 |
|
Admin
|
1 |
|
Voice Prompt
|
Supported
|
|
Loudspeaker built in
|
Supported
|
|
Tag reader built in
|
Supported
|
|
Memory Log stored
|
5000
|
|
Programming tools
|
Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
|
|
Firmware upgrade
|
APP/Web Portal
|
|
Arm modes
|
Away/Stay
|
|
Automatic Arm/Disarm Timers
|
Supported
|
|
Forced Arming with Open
|
Supported
|
|
Diagnostics via the APP or Web
|
Supported
|
|
ARC protocol
|
SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Supports video verification and remote controlHik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
|
|
User APP for operating
|
Supported
|
|
Installer APP for programming
|
Supported
|
|
Web server for maintenance (offline configuration)
|
Supported
|
|
Hardware features
|
|
|
RS232 output
|
Supported
|
|
SIM slot
|
Dual
|
|
RF transmission
|
|
|
Two-way Wireless Communication
|
Support
|
|
RF Frequency
|
433 Mhz
|
|
Wireless Security
|
Frequency hoping 128 AES encryption
|
|
3/4G on board
|
Supported
|
|
Electrical characteristics
|
|
|
Power supply
|
Built in power supply
|
|
Battery type
|
Built in on board Battery Li
|
|
Battery life span
|
Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
|
|
Wireless transmission
|
|
|
Wired network
|
Supported
|
|
Wi-Fi Standard
|
Supported
|
|
Display
|
|
|
LEDs Status
|
Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
|
|
General
|
|
|
Operation temperature
|
-10 °C to +55 °C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected)
|
|
Shell material
|
Plastic
|
|
Dimension(WxHxD)
|
170.0 mm (6.7") × 170.0 (6.7") mm × 38.6 mm (1.5")
|
|
Weight
|
557.5 g (19.7 oz)
|
|
Color
|
White
|
|
Device management
|
|
|
Keyfob
|
48 |
|
Wireless sounder
|
6 (3 internal+3 external)
|
|
Keypad
|
8 (including tag reader)
|
|
Wireless Repeater
|
4 |
|
Multi Transmitter
|
6 |
|
PIR Cam
|
Supported
|
|
รับประกัน
|
2 ปี
|
