ALLNET ALL95100 Datasheet
ALLNET ALL95100 Quick Install Guide
CE-Declaration of Conformity
Product Spec |

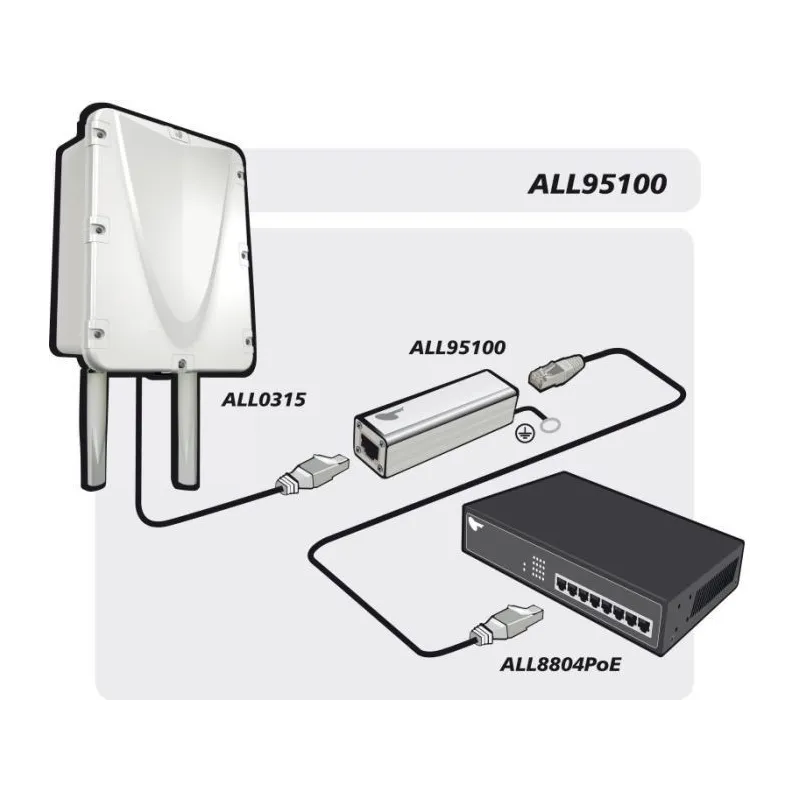

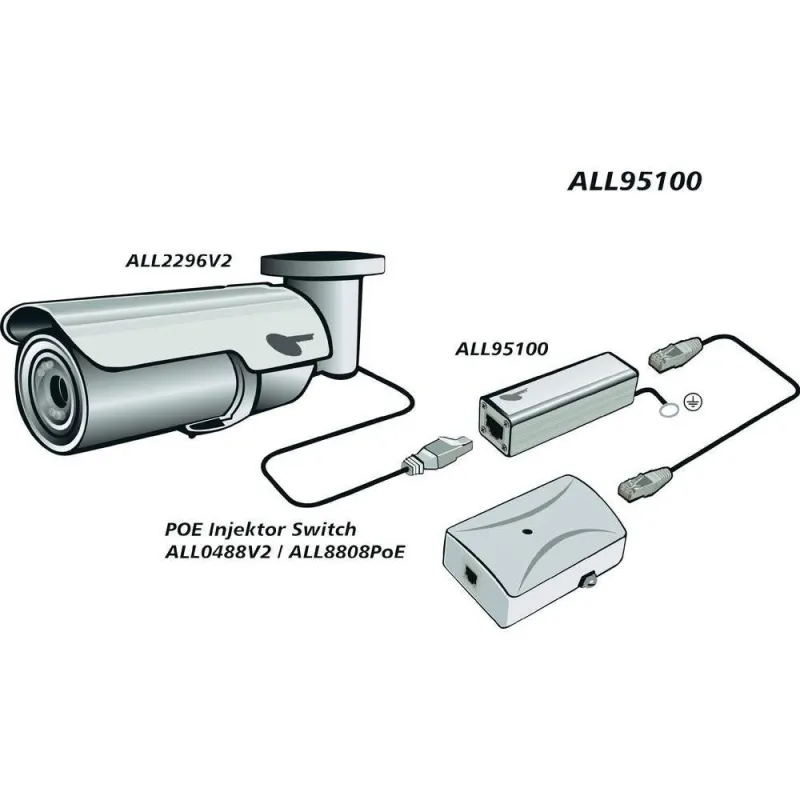

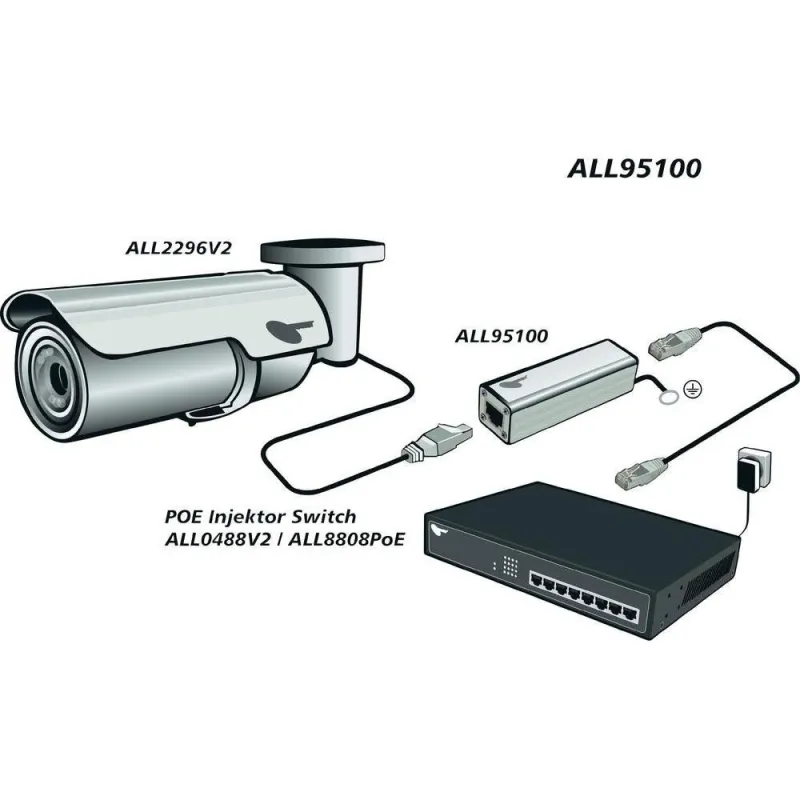

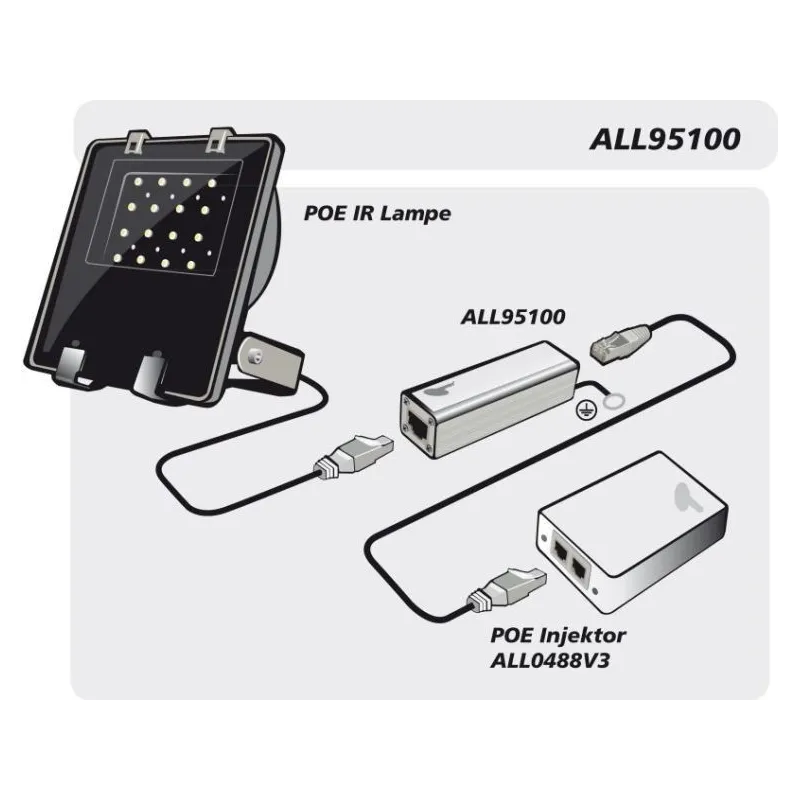

ALLNET ALL95100 TP Cat 6 PoE Surge arrester อุปกรณ์ Surge Protect ป้องกันความเสียหายให้กับระบบเครือข่าย เช่น Access Point, IP-Camera, Switches, Router จากกระแสไฟฟ้ากระชาก, ESD, ฟ้าผ่า เชื่อมต่อเข้ากับอุปกรณ์เครือข่ายผ่านสาย UTP โดยต้องมีการต่อลงกราวด์เพื่อให้ได้ประสิทธิภาพในการป้องกันสูงสุด |
Network Interface: |
2 Port RJ45 ความเร็ว Gigabit 10/100/1000Mbps |
PoE-Capability: |
IEEE802.3af, at, LTPoE++ bis 90W |
Arrest capacity: |
10kA (8/20?s), 100A (10/1000?s) |
Ignition voltage: |
90VDC ?20% (Pair to Earth) |
Diff. Clamping: |
<15V, <5ns, 30Apk (Pair wire to wire) |
Diff. Capacity: |
<4.0pF |
Lines protected: |
(Pins)1 - 8 (at 8 pin modular plug) |
Test mark: |
IEEE 802.3, CAT 5, 6 |
ESD Protection: |
IEC 61000-4-2 class 4 (10kV CD) |
Housing: |
metal case |
Enviroment: |
Temperature operating: -15 ~ 40 ?C |
Marks: |
CE, RoHS |
Ma?e: |
82 x 25 x 25 mm (Length x Width x Height) |
weight: |
200 Gram |
รับประกัน |
3 เดือน |
