Specifications

• Frequency Range : 0 - 6 GHz

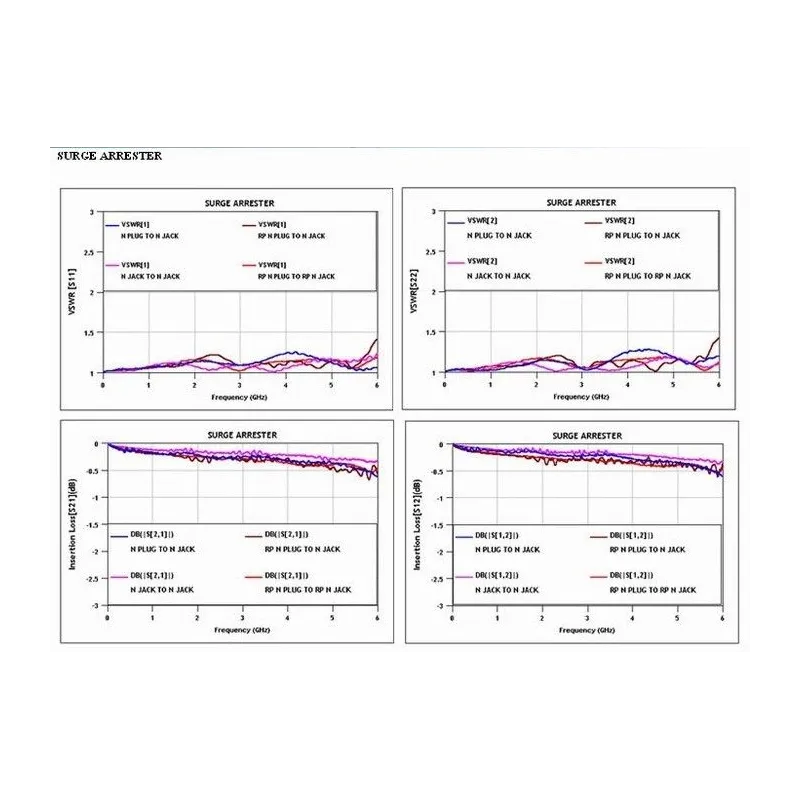

• VSRW : Less than 1.5
• Insertion Loss : 0.2 dB
• Transmossion Loss : -2.5dB
• AC Current Range : 20A (at voltage release=1S,testing period=5S, testing duration=3 min, per test)
• Pulse Current Range : 200A (at 10/1000µs, wave=300, testing duration=3 min, pre test)
• Impedance : 50 Ohm
• DC breakdown voltage : 230 20% (voltage on upgrade ratio @100V/S)
• Impulse breakdown voltage :

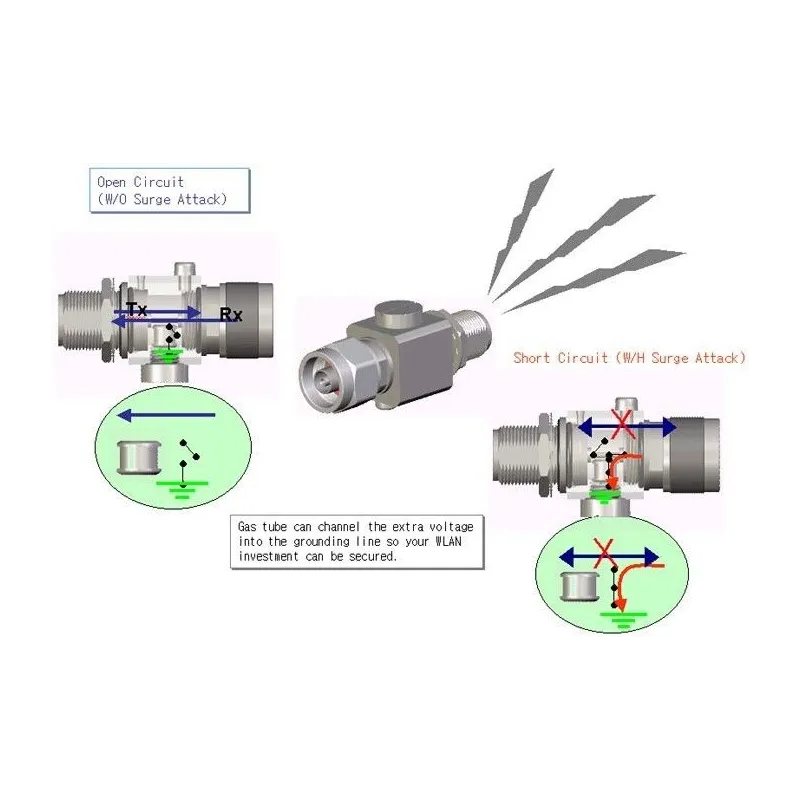

• Gas Tube Insulation Resistance : 10,000 MOhms
• Overvoltage Protection : >150V (100mA,
• Gap Can :
• Connectors : N-Female toN-Male
• Connector Body Material : Nickel Plated Brass
• Body Material : Anodized Aluminum
• Pin Material : Gold Plated Brass
• Dimensions  : 75 x 50 x 20 mm.
• Weight : 107g
• Warranty  : 1ปี
