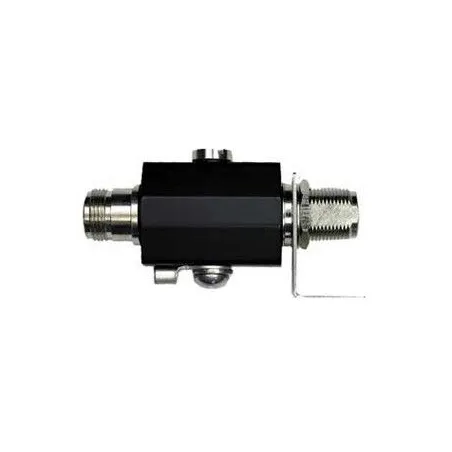

Datasheet

Electrical Specifications

• Frequency Range 0 -3 GHz
• VSRW Less than 1.5
• Insertion Loss 0.2dB
• Transmission Loss -2.5dB
• AC Current Rang 20A (at voltage release = 1S, testing period=5S,
• testing duration = 3 min, per test)
• Pulse Current Range 200A (at 10/100 micro Second, wave=300, testing duration=3min,
• per test)
• Impedance 50 Ohm
• DC breakdown voltage 230+-20% (voltage on upgrade ratio @ 100V/S)
• Impulse breakdown voltage < 600V (voltage on upgrade ratio @ 100V/S)
• Gas Tube Insulation Resistance 10,000 MΩ
• Overvoltage protection > 150V (100mA,
• Gap Can < 1.5P

Mechanical Specifications

• Connectors N-Female to N-Male
• Connector Body Material Nickel Plated Brass
• Body Material Anodized Aluminum
• Pin Material Gold Plated Brass
• Dimensions (Max.) 75 x 50 x 20 mm
• Weight 107g
• Warranty 1 year
