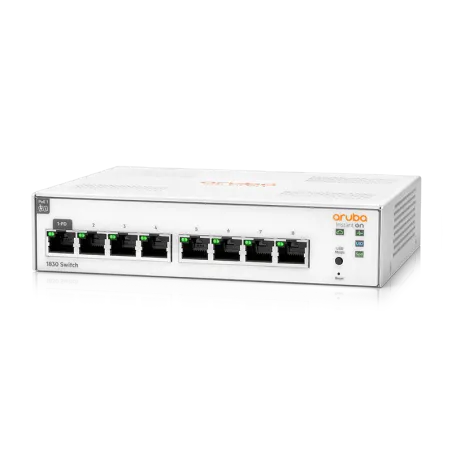

Aruba Instant On 1830 8G Switch Smart-Managed (JL810A)

Product Specification

Overview

Aruba Instant On 1830 (JL810A), Switch 8 Port Gigabit สามารถจ่ายไฟ POE มาตรฐาน 802.3af ได้1 Port สูงสุด 13W ประกัน Limited Lifetime

Port

8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1)
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);  Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only

Dimensions

157.0(d) x 173.0(w) x 39.1(h) mm

Weight

1.70 lb (0.77 kg)

Memory and processor

ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer size: 1.5 MB

100 Mb Latency

< 5.8 μSec

1000 Mb Latency

< 2.8 μSec

Throughput

11.90 Mpps

Switching capacity

16 Gbps

MAC address table size

8,000 entries

MTBF (years)

188.2

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Non-Operating temperature

-40°F to 70°F (-40°C to 21.1°C)

Non-Operating relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustic

Fanless

Frequency

50/60 Hz

Voltage

100 - 127 / 200 - 240 VAC

Current

12v - 1.0a

Maximum power rating

100-127V: 244.8.09W 200-220V: 8.05W

Idle power

100-127V: 5.8W 200-220V: 5.9W

PoE power

13 W

Safety

EN/IEC  60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1

Emmissions

EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A

Device management

Aruba Instant On Cloud; Web browser; SNMP Manager

รับประกัน

Limited Lifetime
