Product Specification
|
|
Overview
|

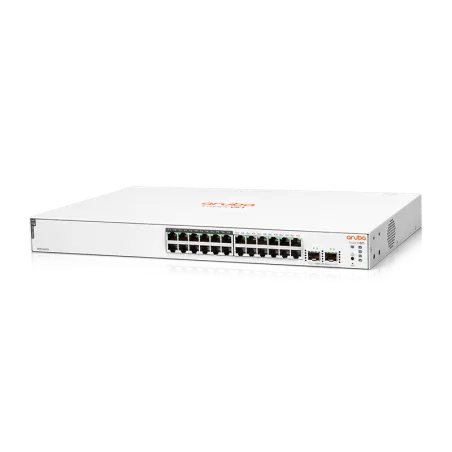

Aruba Instant On 1830 24G 12p Class4 PoE Switch (JL813A) Switch 24 Port ความเร็ว Gigabit, 2 Port SFP จ่ายไฟ POE มาตรฐาน 802.3af/at 12 Port 195W ประกัน Limited Lifetime
|
|
Port
|
24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12)
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
|
|
Dimensions
|
253.0(D) x 443.0(W) x 43.9(H) mm
|
|
Weight
|
7.65 lb (3.47 kg)
|
|
Memory and processor
|
ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer size: 1.5 MB
|
|
100 Mb Latency
|
< 5.8 μSec
|
|
1000 Mb Latency
|
< 2.8 μSec
|
|
Throughput
|
up to 38.68 Mpps
|
|
Switching capacity
|
52 Gbps
|
|
MAC address table size
|
16,000 entries
|
|
MTBF (years)
|
96.6
|
|
Operating temperature
|
32°F to 104°F (0°C to 40°C)
|
|
Operating relative humidity
|
15% to 95% @ 104°F (40°C)
|
|
Non-Operating temperature
|
-40°F to 70°F (-40°C to 21.1°C)
|
|
Non-Operating relative humidity
|
15% to 95% @ 140°F (60°C)
|
|
Altitude
|
up to 10,000 ft (3 km)
|
|
Acoustic
|
LWAd = 3.1 Bel LpAm (Bystander) = 17 dB
|
|
Frequency
|
50/60 Hz
|
|
Voltage
|
100 - 127 / 200 - 240 VAC
|
|
Current
|
2.7/1.4 A
|
|
Maximum power rating
|
100-127V: 244.6W 200-220V: 237.2W
|
|
Idle power
|
100-127V: 14.5W 200-220V: 13.4W
|
|
PoE power
|
195 W PoE+
|
|
Safety
|
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1
|
|
Emmissions
|
EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A
|
|
Device management
|
Aruba Instant On Cloud; Web browser; SNMP Manager
|
|
รับประกัน
|
Limited Lifetime
|
|
|
|
