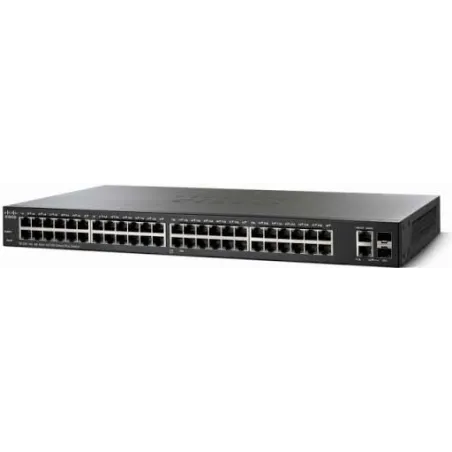

Cisco SF220-48 Smart Plus L2-Managed Switch 48 Port 10/100Mbps, 2 Port SFP ควบคุมผ่าน Web

Product Specification

Overview

อุปกรณ์ Cisco SF220-48 L2-Managed Switch ขนาด 48 Port ความเร็ว 10/100 Mbps

LAN Port

48 พอร์ท Fast Ethernet 10/100 Mbps แบบ RJ-45 รองรับการทำงาน Auto MDI/MDI-X, Half/Full Duplex Mode, 2 Port Combo RJ45/SFP

Combo Ports

2 Port SFP

Mini-GBIC

-

Mac Address

8K

Switching Capacity

Forwarding rate in millions of packets per second (mpps; 64-byte packets)

10.12

Switching capacity in Gigabits per second

13.6

Layer 2 Switching

MAC Table

Up to 8192 MAC addresses

Spanning Tree Protocol (STP)

Standard 802.1d Spanning Tree support, enabled by default

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP])

Multiple Spanning Tree instances using 802.1s (MSTP)

16 instances are supported

Port Grouping

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Load balance based on source and destination MAC address, or source and destination MAC/IP

VLAN

Support for up to 256 VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

Management VLAN

Guest VLAN

Auto Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

QinQ VLAN

VLANs transparently cross a service provider network while isolating traffic among customers

Security

ACLs

Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag

Support up to 512 rules

Port Security

Creates the ability to lock source MAC addresses to ports; limits the number of learned MAC addresses

IEEE 802.1x (Authenticator Role)

02.1X: RADIUS authentication; guest VLAN; multiple host mode

RADIUS, TACACS+

Supports RADIUS and TACACS authentication; switch functions as a client

MAC Address Filtering

Supported

Secure Shell (SSH) Protocol

SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH v1 and v2 are supported

Secure Sockets Layer (SSL)

SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch

Management

Web User Interface

Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance, and monitoring

Text-Editable Config Files

Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment

Command line interface

Scriptable CLI; a full CLI is supported. User privilege levels 1 and 15 are supported for the CLI

Cloud Services

Support for Cisco Small Business FindIT Network Tool

SNMP

SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)

Power Consumption

110V=13.2W

220V=13.7W

Height

-

Power

-

ประกัน

รับประกัน อุปกรณ์ 5 ปี EOS , Adapter 3 เดือน
