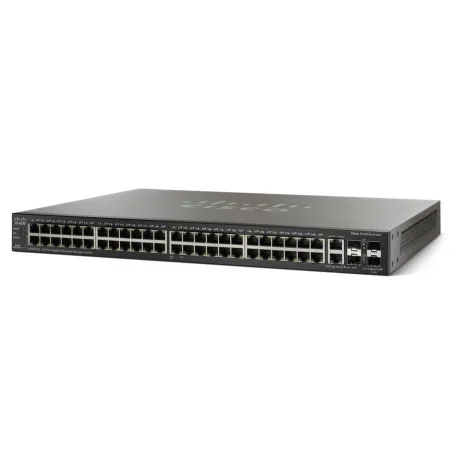

    Cisco SG500-52P Stackable L3-Managed POE Switch 48 Port Gigabit, 2 Port SFP, 2 Combo, POE 48 Port


    Cisco SG500-52P Stackable L3-Managed POE Switch ขนาด 48 Port ความเร็ว Gigabit 2 Port SFP, 2 Port Combo RJ45/SFP พร้อม POE 48 Port 375W รองรับ Static Routing, VLAN


    Line: @sysnet

    Click โทรสอบถามข้อมูลเพิ่มเติม


    Cisco 500 Series Switches Data Sheet



    Cisco Switch SG500-52P L3 Managed POE Switch ขนาด 48 Port  ความเร็ว Gigabit 10/100/1000Mbps , 2 Port SFP Gigabit, 2 Port Combo RJ45/SFP ควบคุมการทำงานผ่าน Web


    Total System Ports

    48GE + 4 GE (5G Stacking)

    RJ-45 Ports

    48 ความเร็ว 10/100/1000Mbps

    Combo Ports (RJ-45 + SFP)

    2 combo GE + 2 1G/5G SFP


    Switching Capacity in Millions of Packets per Second (mpps) (64-byte packets)


    Switching Capacity in Gigabits per Second (Gbps)


    Power over Ethernet (PoE)

    Power Dedicated to PoE


    Number of Ports That Support PoE

    48 Port

    Layer 2 Switching

    Spanning Tree Protocol

    Standard 802.1d Spanning Tree SupportFast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by defaultMultiple spanning tree instances using 802.1s (MSTP). 16 instances are supported

    Port grouping/link aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

    Up to 32 groups

    Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG


    Support for up to 4096 VLANs simultaneously Port-based and 802.1Q tag-based VLANs MAC-based VLANManagement VLANPVE (Private VLAN Edge), also known as Protected Port, with multiple uplinksGuest VLAN Unauthenticated VLAN Protocol-based VLAN CPE VLAN Dynamic VLAN assignment via Radius server along with 802.1x client authentication

    Voice VLAN

    Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver network-wide zero touch deployment of voice endpoints and call control devices.

    DHCP Relay at Layer 2

    Relay of DHCP traffic to DHCP server in a different VLAN. Works with DHCP Option 82.

    Jumbo Frames

    Frames up to 9K (9216) bytes in length.

    Layer 3

    IPv4 routing

    Wirespeed routing of IPv4 packets Up to 2K (2048) static routes and up to 256 IP interfaces

    Wirespeed IPv6 Static Routing

    Up to 2K (2048) static routes and up to 128 IPv6 interfaces

    Layer 3 Interface

    Configuration of layer 3 interface on physical port, LAG, VLAN interface or Loopback interface

    RIP v2 (on 500X)

    Support for Routing Information Protocol version 2, for dynamic routing

    DHCP Server

    Switch functions as an IPv4 DHCP Server serving IP addresses for multiple DHCP pools/scopesSupport for DHCP options


    Hardware stack

    Up to 8 units in a stack. Up to 416 ports managed as a single system with hardware failover.

    High availability

    Fast stack failover delivers minimal traffic loss.

    Plug-and-play stacking configuration/management

    Master/backup for resilient stack controlAuto-numberingHot swap of units in stackRing and chain stacking options Auto stacking port speed Flexible stacking port options

    High-speed stack interconnects

    Cost-effective 5G copper and high-speed 10G Fiber and Copper interfaces.

    Hybrid stack

    A mix of SF500, SG500, and SG500X in the same stack (10/100, Gigabit, and 10 Gigabit).



    SSH is a secure replacement for Telnet traffic. SCP also uses SSH. SSH versions 1 and 2 are supported.


    Secure Sockets Layer (SSL) encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch.

    IEEE 802.1X (Authenticator role)

    RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode and single/multiple sessionsSupports time-based 802.1X Dynamic VLAN assignment

    Web Based Authentication

    Web based authentication provides network admission control through web browser to any host devices and operating systems.

    STP BPDU Guard

    A security mechanism to protect the networks from invalid configurations. A port enabled for Bridge Protocol Data Unit (BPDU) Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops.

    STP Root Guard

    This prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes.

    DHCP snooping

    Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as a DHCP Server.

    IP Source Guard (IPSG)

    When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP Address Spoofing.

    Dynamic ARP Inspection (DAI)

    The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination address in the ARP packet. This prevents man-in-the-middle attacks.

    IP/Mac/Port Binding (IPMB)

    The features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) above work together to prevent DoS attacks in the network, thereby increasing network availability

    Secure Core Technology (SCT)

    Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received.

    Secure Sensitive Data (SSD)

    A mechanism to manage sensitive data (such as passwords, keys, etc.) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user configured access level and the access method of the user.

    Layer 2 isolation (PVE) with community VLAN*

    Private VLAN Edge provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks.

    Port security

    Ability to lock Source MAC addresses to ports, and limit the number of learned MAC addresses.


    Supports RADIUS and TACACS authentication. Switch functions as a client.

    RADIUS accounting

    The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session.

    Storm control

    Broadcast, multicast, and unknown unicast.

    DoS prevention

    Denial-of-Service (DoS) attack prevention.

    Multiple user privilege levels in CLI

    Levels 1, 7, and 15 privilege levels.


    Support for up to 2K (2048) rules on 500 Series and 3K (3072) on 500X series.Drop or rate limit based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/User Datagram Protocol (UDP) source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, Internet Group Management Protocol (IGMP) packets, TCP flag.

    Time-based ACLs supported.

    Quality of Service

    Priority levels

    8 hardware queues


    Strict Priority and weighted round-robin (WRR)

    Class of service

    Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLs, Trusted QoSQueue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

    Rate limiting

    gress policer; egress shaping and ingress rate control; per VLAN, per port, and flow based



    IPv6 Host Mode IPv6 over Ethernet Dual IPv6/IPv4 stackIPv6 Neighbor and Router Discovery (ND) IPv6 Stateless Address Autoconfiguration Path MTU DiscoveryDuplicate Address Detection (DAD) ICMPv6IPv6 over IPv4 network with ISATAP tunnel supportUSGv6 and IPv6 Gold Logo certified

    IPv6 QoS

    Prioritize IPv6 packets in hardware

    IPv6 ACL

    Drop or Rate Limit IPv6 packets in hardware


    Web user interface

    Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, system dashboard, system maintenance and monitoring.


    SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-based Security Model (USM)


    Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events)for enhanced traffic management, monitoring, and analysis

    Pv4 and IPv6 Dual Stack

    Coexistence of both protocol stacks to ease migration

    Port mirroring

    Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port.

    VLAN mirroring

    Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port.


    Jumbo frames

    Frame sizes up to 9K (9216) bytes. Supported on 10/100 and Gigabit Ethernet interfaces. The default MTU is 2K.

    MAC table

    6K (16384) MAC addresses.

    Power consumption  (worst case)

    System Power Consumption



    Power Consumption (with PoE)



    Heat Dissipation (BTU/hr)



    Unit Dimensions

    440 x 44 x 257

    Unit Weight



    100-240V 47-63 Hz, internal, universal


    UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

    Operating temperature

    SF500-24, SF500-24P, SF500-48, SF500-48P, SG500-28, SG500-28P, SG500-52, SG500-52P, SG500X-24, SG500X-24P, SG500X-48, SG500X-48P32?to 104?F (0?to 40?C)SG500-28MPP, SG500-52MP, SG500XG-8F8T, SF500-24MP, SF500-48MP, SG500X-24MPP, SG500X-48MP32?to 122?F (0?to 50?C)

    Storage temperature

    -4?to 158?F (-20?to 70?C)

    Operating humidity

    10% to 90%, relative, noncondensing

    Storage humidity

    0% to 90%, relative, noncondensing

    Package Contents

    Cisco Small Business 500/500X Series Stackable Managed Switch

    Power cord

    Mounting kit included with all models

    Serial cable

    CD-ROM with user documentation (PDF) included

    Quick Start Guide



    รับประกัน อุปกรณ์ 5 ปี EOS , Adapter 3 เดือน


    Data sheet

    ประเภท Switch
    L2/L3 Managed
    ความเร็ว Port Lan
    จำนวน Port Lan
    48 Port
    มาตรฐานจ่ายไฟ POE
    802.3af/at (30W)
    จำนวน Port POE
    48 Port
    มี Uplink Port Lan Gigabit
    มี SFP Port Gigabit
