  • Out-of-Stock

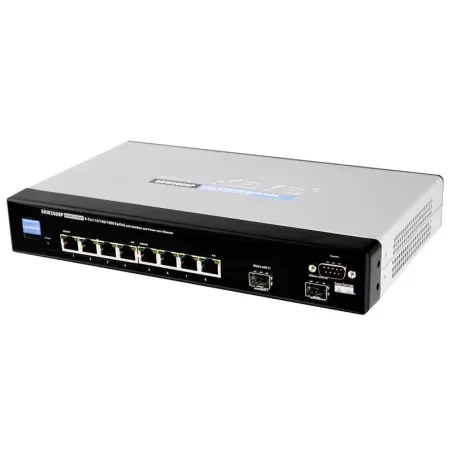

Cisco SRW2008P Managed Switch 8 port Gigabit 10/100/1000Mbps with WebView
  • Cisco SRW2008P Managed Switch 8 port Gigabit 10/100/1000Mbps with WebView

Cisco SRW2008P Managed Switch 8 port Gigabit 10/100/1000Mbps with WebView

Cisco
คะแนน
Write your review
Switch Cisco SRW2008P-EU 8 Port Gigabit รองรับ VLANs, QOS, Authentication มาตรฐาน 802.1x และ Mac Filtering ควบคุมการทำงานผ่าน Browser r รองรับการจ่ายไฟผ่านสาย Lan (PoE)
฿0.00
ยังไม่ได้รวมภาษี
จำนวน
Out-of-Stock


Support / ติดตั้งด้วยทีมงาน
Certificate


สอบถามรายละเอียดสินค้าเพิ่มเติม LINE:
@sysnet

รายละเอียด



Specifications

Ports



• 8 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T with 2 Gigabit combo ports shared between mini-GBIC ports and ports 7 and 8



• Console port

• Auto medium dependent interface (MDI) and MDI crossover (MDI-X)

• Auto negotiate/manual setting

Cabling type



• Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX

• UTP Category 5e or better for 1000BASE-T

LEDs

Link/Act, PoE, System

POE

802.3af compliant. Supplies up to IEEE standard maximum of 15.4W on four 10/100/1000 ports or up to 7.5W on eight 10/100/1000 ports

Performance

Switching capacity

16 Gbps, nonblocking

Forwarding rate

11.9 mpps wire-speed performance

Layer 2

MAC table size

8000

Number of VLANs

256 active VLANs (VLAN ID range is 4096)

VLAN

Port-based and 802.1Q tag-based VLANs

Management VLAN

Head-of-line (HOL) blocking

HOL blocking prevention

Management

Web user interface

Built-in Web user interface for easy browser-based configuration (HTTP/HTTPS)

SNMP

SNMP versions 1, 2c, and 3 with support for traps

SNMP MIBs

RFC1213 MIB-2, RFC2863 interface MIB, RFC2665 Ether-like MIB, RFC1493 bridge MIB, RFC2674 extended bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1, 2, 3, and 9 only), RFC2737 entity MIB, RFC 2618 RADIUS client MIB, RFC1215 traps

RMON

Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis

Firmware upgrade

Web browser upgrade (HTTP) and TFTP

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe

Other management



• Traceroute



• SSL



• SSH



• RADIUS



• Port mirroring



• TFTP upgrade



• SSL security for web user interface



• Dynamic Host Configuration Protocol (DHCP) client



• BOOTP



• Simple Network Time Protocol (SNTP)



• Xmodem upgrade



• Cable diagnostics



• Ping



• Telnet client (SSH secure support)

Security

IEEE 802.1X

802.1X - RADIUS authentication; MD5 encryption

Access control

ACLs - Drop or rate limit based on:



• Source and destination MAC-based



• Source and destination IP address



• Protocol



• ToS/DSCP



• Port



• VLAN



• Ethertype

Availability

Link aggregation



• Link aggregation using IEEE 802.3ad LACP



• Up to 8 ports in up to 8 groups

Storm control

Broadcast, multicast, and unknown unicast

Spanning Tree



• IEEE 802.1D Spanning Tree



• IEEE 802.1w Rapid Spanning Tree



• IEEE 802.1s Multiple Spanning Tree

Internet Group Management Protocol (IGMP) snooping

IGMP (v1/v2) snooping limits bandwidth-intensive video traffic to only the requestors. Supports 256 multicast groups

QoS

Priority levels

4 hardware queues

Scheduling

Priority queuing and weighted round-robin (WRR)

Class of service



• Port based



• 802.1p VLAN priority based



• IPv4/v6 IP precedence/ToS/DSCP based



• TCP/ User Datagram Protocol (UDP) port-based



• DiffServ



• Classification and re-marking ACLs

Rate limiting



• Ingress policer



• Egress rate control

Standards

802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet, 802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.3x flow control, 802.3ad LACP, 802.3af PoE, 802.1d Spanning Tree Protocol (STP), 802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP, 802.1X port access authentication

Environmental

Dimensions

W x H x D

11 x 1.75 x 6.69 in.

(279 x 45 x 170 mm)

Unit weight

2.65 lb (1.2 kg)

Power

External AC power adapter

Certification

FCC Part 15 Class A, CE Class A, UL, cUL, CE mark, CB

Operating temperature

32º to 104ºF (0º to 40ºC)

Storage temperature

-4º to 158ºF (-20º to 70ºC)

Operating humidity

10% to 90%

Storage humidity

10% to 95%

Package Contents



• Cisco SRW2008P 8-Port Gigabit Switch plus two shared mini-GBIC ports



• AC power adapter and cord



• Rack-mounting kit



• CD with user guide in PDF format



• Registration card



• Console cable

Minimum Requirements



• Web-based utility: Microsoft Internet Explorer (version 5.5 or later)



• Category 5 Ethernet network cables



• Operating system: Windows 2000, XP, or later

Product Warranty

รับประกัน อุปกรณ์ 5 ปี EOS , Adapter 3 เดือน





รายละเอียดสินค้า
0

ข้อมูลสินค้า

Layer Switch
L2/L3 Managed
ความเร็ว Port Lan
1Gbps (Gigabit)
จำนวน Port Lan
8 Port
มาตรฐานจ่ายไฟ POE
802.3af (15.4W)
จำนวน Port POE
4 Port
