Specifications
|
|
Standards
|
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.1Q
|
|
Ports
|
Sixteen 10/100/1000 RJ-45 ports and 2 shared mini-GBIC slots
|
|
Cabling type
|
Category 5 Ethernet or better
|
|
LEDs
|
System, Link/Activity, Gigabit
|
|
Performance
|
|
Switching capacity
|
32 Gbps, nonblocking
|
|
MAC table size
|
8000
|
|
Number of VLANs
|
256 VLANs
|
|
Management
|
|
Web user interface
|
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
|
|
SNMP
|
SNMP versions 1, 2c, and 3 with support for traps
|
|
SNMP MIBs
|
• RFC1213 MIB-2
• RFC2863 Interface MIB
• RFC2665 Ether-like MIB
• RFC1493 bridge MIB
• RFC2674 extended bridge MIB (P-bridge, Q-bridge)
• RFC2819 RMON MIB (groups 1, 2, 3, and 9 only)
• RFC 2618 RADIUS client MIB
|
|
RMON
|
Embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
|
|
Firmware upgrade
|
• Web browser upgrade (HTTP)
• Trivial File Transfer Protocol (TFTP) upgrade
|
|
Port mirroring
|
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe
|
|
Other management
|
• RFC854 Telnet (Menu-driven configuration)
• SSH and Telnet management
• RADIUS
• TACACS+
• Telnet client
• SSL security for web user interface
• Switch audit log
• Dynamic Host Configuration Protocol (DHCP) client
• BOOTP
• Simple Network Time Protocol (SNTP)
• Xmodem upgrade
• Cable diagnostics
• Ping
• Traceroute
• Syslog
|
|
Security Features
|
|
IEEE 802.1x
|
802.1X - RADIUS authentication; MD5 encryption
|
|
Access control
|
MAC-based access control lists (ACLs)
|
|
Availability
|
|
Link aggregation
|
• Link aggregation using IEEE 802.3ad LACP
• Up to 8 ports in up to 8 trunks
|
|
Storm control
|
Broadcast, multicast, and unknown unicast
|
|
Spanning Tree
|
• IEEE 802.1d Spanning Tree
• IEEE 802.1s Multiple Spanning Tree
• IEEE 802.1w Rapid Spanning Tree, Fast Linkover
|
|
Internet Group Management Protocol (IGMP) snooping
|
IGMP (v1/v2) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors.
|
|
QoS
|
|
Priority levels
|
4 hardware queues
|
|
Scheduling
|
Priority queuing and weighted round-robin (WRR)
|
|
Class of service
|
• Portbased
• 802.1p VLAN priority based
• IP ToS/IP precedence based
• IPv6 traffic class based
• DiffServ
• MAC address port security*
• VLAN ID*
• MAC address*
• IP address*
• Subnet mask*
• Service type*
• Protocol*
• TCP/ User Datagram Protocol (UDP) port*
|
|
Layer 2
|
|
VLAN
|
• Port-based and 802.1q based VLANs
• PVE
• Management VLAN
|
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
|
Jumbo frame
|
Supports frames up to 10 KB
|
|
Dynamic VLAN
|
GVRP - dynamic VLAN registration
|
|
Standards
|
• 802.3i 10BASE-T Ethernet
• 802.3u 100BASE-TX Fast Ethernet
• 802.3ab 1000BASE-T Gigabit Ethernet
• 802.3z Gigabit Ethernet
• 802.3x flow control
|
|
Environmental
|
|
Dimensions
W x H x D
|
16.93 x 1.75 x 13.78 in.
(430 x 44.5 x 350 mm)
|
|
Unit weight
|
7.3 lb (3.311 kg)
|
|
Power
|
100 to 240V 0.5A
|
|
Certification
|
FCC Part 15 Class A, CE Class A, UL, cUL, CE mark, CB
|
|
Operating temperature
|
32º to 104ºF (0º to 40ºC)
|
|
Storage temperature
|
-40º to 158ºF (-40º to 70ºC)
|
|
Operating humidity
|
20% to 95% relative humidity, noncondensing
|
|
Storage humidity
|
5% to 90%, noncondensing
|
|
Package Contents
|
|

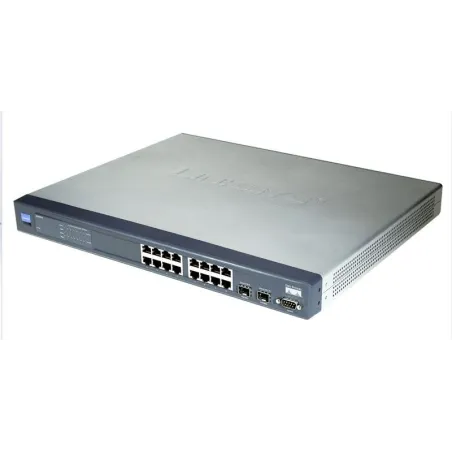

• Cisco SRW2016 16-Port Gigabit Switch
• AC power cord
• Rack-mounting kit with brackets and hardware
• CD with user guide in PDF format
• Registration card
• Console cable
|
|
Minimum Requirements
|
|
• Category 5 Ethernet network cable
• TCP/IP installed on each computer within the network
• Network adapter installed in each computer
• Network operating system (Windows, Linux, Mac OS X)
|
