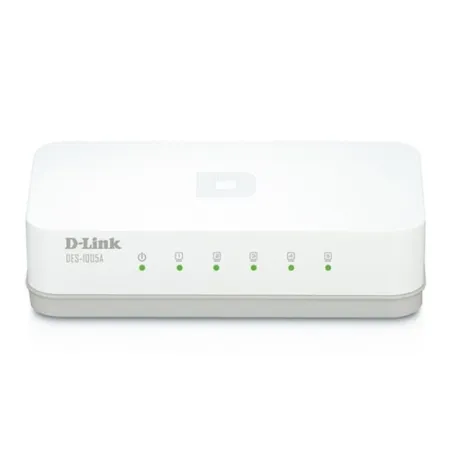

D-Link DES-1005A 5-Port Fast Ethernet Desktop Switch ความเร็ว 10/100Mbps Plastic Casing

Overview

D-Link DES-1005A Fast Ethernet Switch 5 port ความเร็ว 10/100Mbps เคสแบบ Desktop พลาสติก

Standards

IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3az EEE power saving

Switching Fabric

1 Gbps switching fabric

Topology

Star

Protocol

CSMA/CD

Data Transfer Rates

Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

Network Cables

10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators

Per port: Link/Activity
Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

2K entries per device

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer

48 KB per device

Dimensions

87 x 47.85 x 21.7mm (3.42 x 1.88 x 0.85 inches)

DC Input

External 5V/0.55A power adapter

Power Consumption

Power On (Standby):
DC input: 0.1 watts
AC input: 0.69 watts
Maximum:
DC input: 0.9 watts
AC input: 1.6 watts

Heat Dissipation

Power On (Standby)
AC input: 2.355 BTU/h
Maximum
AC input: 5.461 BTU/h

Temperature

Operating: 0 to 40 ?C (32 to 104 ?F)
Storage: -10 to 70 ?C (14 to 158 ?F)

Humidity

Operating: 10% to 90% RH non-condensing
Storage: 5% to 90% RH non-condensing

Certifications

FCC Class B
CE Class B
UL
C-Tick Class B
CB

รับประกัน

Life Time
