Product Specification |

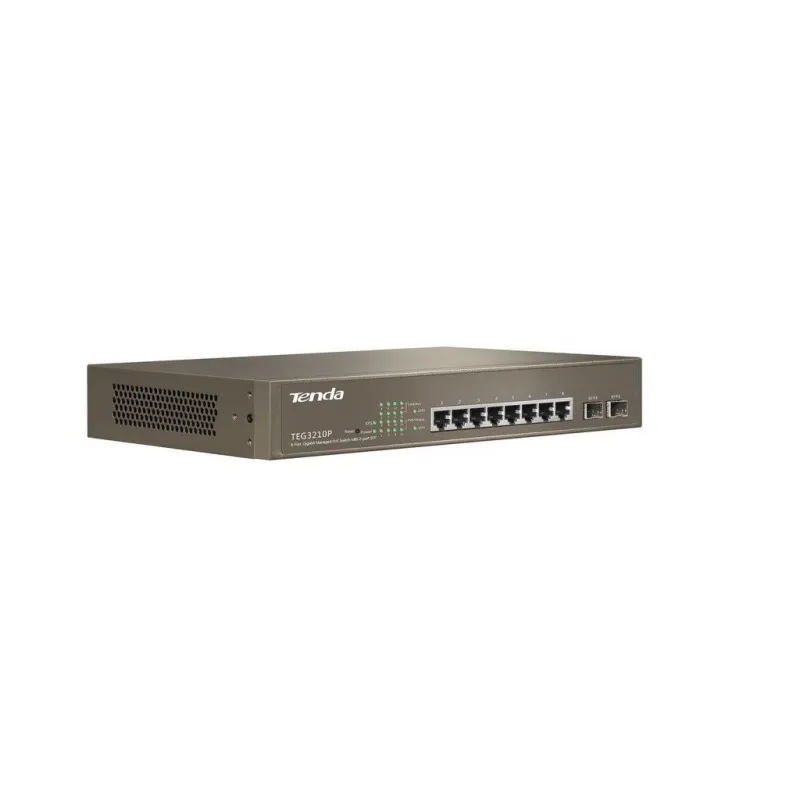

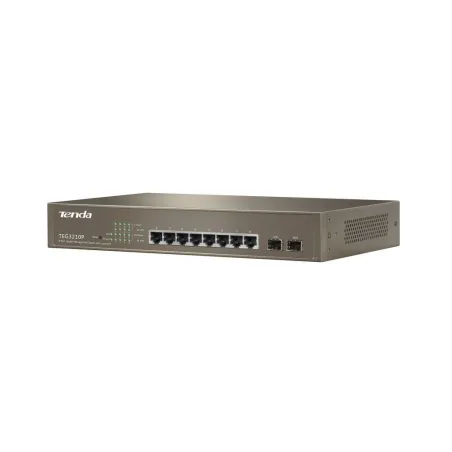

Overview | TENDA TEG3210P อุปกรณ์ L2-Managed Gigabit POE Switch ขนาด 8 Port ความเร็ว Gigabit 10/100/1000 Mbps แบบ Rackmount รองรับจ่ายไฟ POE มาตรฐาน 802.3af/at จำนวน 8 Port รวมสูงสุด 115W รองรับ VLAN, Link Aggregation, Port Mirroring |
Copper Ports | 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100Base-FX SFP |
Switch Architecture | Store-and-Forward |
Backbound Bandwidth | 20Gbps / non-blocking |
Throughout | 14.88Mpps |
Address Table | 8K entries, automatic source address learning and aging |
Share Data Buffer | 1392 kilobytes |
Flow Control | IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex |
Jumbo Frame | 9Kbytes |
Reset Button | < 5 seconds: System reboot
> 5 seconds: Factory Default |
Dimension | 294*178.8*44 mm(L?W?H ), 1U high |
Weight | 1.8kg |
LED | Power,PoE-Max
Link/Act per Gigabit port
PoE In-Use for Port-1~ 8 |
PoE Standard | IEEE 802.3af / at PoE / PSE |
PoE Power Output | Per Port 51V DC
Max. 40 Watts |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | Max. 115 Watts

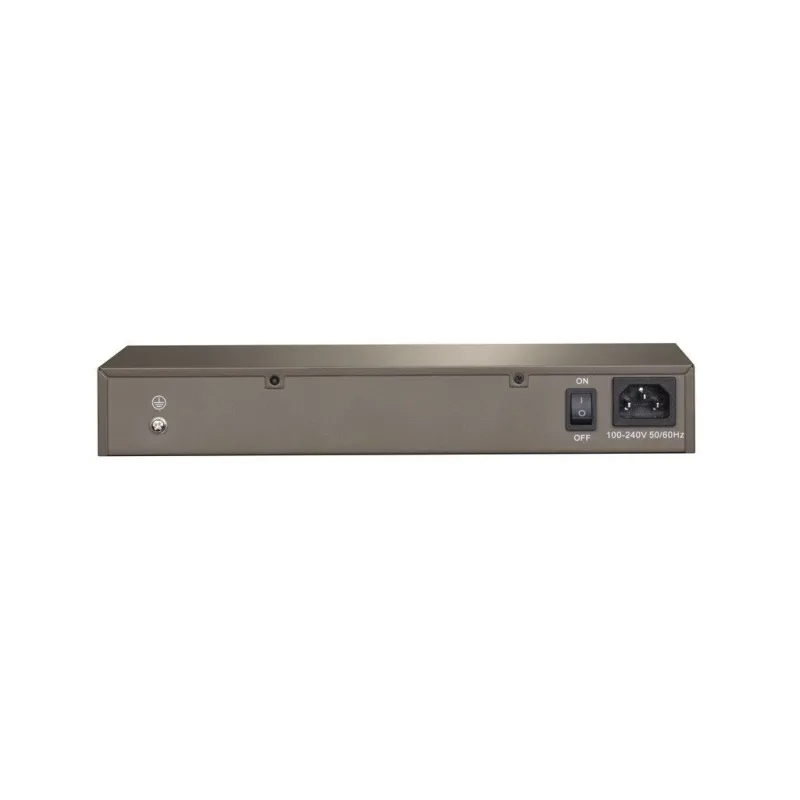

AC 100-240V, 50/60Hz |
PoE Ability | Number of PD @ 7 Watts 8
Number of PD @ 15.4 Watts 8
Number of PD @ 30.8 Watts 4 |
Management | Telnet, Web Browser, SNMPv1, v2c |
Port configuration | Port disable / enable
Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Bandwidth control on each port
Power saving mode control |
Port Status | Display each port’s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status |
Port Mirroring | TX / RX / Both
Many to 1 monitor |
VLAN | 802.1Q Tagged Based VLAN, up to 64 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-Based VLAN
Protocol-Based VLAN
Voice VLAN
Up to 10 VLAN groups, out of 160 VLAN IDs |
| IEEE 802.3ad LACP / Static Trunk
Supports 5 groups of 10-Port trunk support |
QoS | Traffic classification based, Strict priority and WRR
8-Level priority for switching
- Port Number- 802.1p priority- 802.1Q VLAN tag- DSCP/TOS field in IP Packet |
IGMP Snooping | IGMP (v1/v2) Snooping, up to 200 multicast Groups
IGMP Querier mode support |
Regulation Compliance | FCC,CE,RoHS |
ประกัน | 5 ปี |
|
