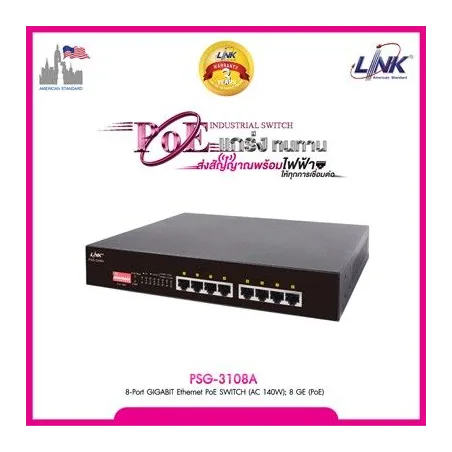

PSG-3108A Link 8 Port Gigabit POE Switch, 8 Port POE 140W

Product Specification

Overview

Link PSG-3108A 8 Port Gigabit POE Switch จ่ายไฟ POE มาตรฐาน 802.3af/at 8 Port สูงสุด 140W

Standards

IEEE 802.3u 100Base-TX (Fast Ethernet)

IEEE 802.3ab 1000Base-T (Gigabit Ethernet)

IEEE 802.3x Flow Control (full-duplex flow control)

IEEE 802.3az Energy-Efficient Ethernet

IEEE 802.3af Power over Ethernet (PoE)

IEEE 802.3at Power over Ethernet Plus (PoE+)

Interface

Panel PWR, 10/100M, 1000M, PoE, LNK/ACT

Performance

Forwarding Rate: 11.90Mpps

Packet Buffer Memory: 1.5Mbit

Jumbo Frame size: 9KBytes

MAC Address: 4K

Transmission Method: Store and Forward

Features

Layer 2 Switch
L2 Unmanaged PoE Switch
Flow Control, Auto-Nego, Auto MDI/MDI-X

PoE Power Budget

140W

Power Adapter

Internal Power Supply 100-240VAC, 50/60Hz

Operating Temperature

0~40°C

Storage Temperature

-40~70°C

Operating Humidity

10~95% RH (non-condensing)

Storage Humidity

5~95% RH (non-condensing)

Dimension (W x H x D)

265 x 44 x 183 (mm)

Standards Compliance

FCC Part 15, Subpart B Class A
ANSI C63.4-2014
EN55032: 2015+AC:2016 Class A
EN55035: 2017
LVD EN62368-1:2014
EN/IEC/UL 60950-1

Green Product

RoHS
