Specifications
| Ports | 8x10/100/1000Base-T, RJ45 port (with PoE and auto MDI/MDI-X) 2xGigabit SFP port |
| Standard Compliance | IEEE 802.3 10Base-T (Ethernet) IEEE 802.3u 100Base-TX (Fast Ethernet) IEEE 802.3ab 1000BaseTX (Gigabit Ethernet) IEEE 802.3z 1000Base-SX/LX IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af/at (PoE/PoE+ Standard) IEEE 802.3az : Energy-Efficient Ethernet |
| Switch Fabric (Backplane Bandwidth) | 20Gbps |
| Transmit Rate | 29.7Mpps |
| Packet Buffer Memory | 4.1Mbits |
| Jumbo Frames | 10KBytes |
| MAC Address | 8K |
| Transmission Method | Store and Forward |
| Transmission Cable | 10BaseT Cat. 5e UTP/STP or better 100BaseTX Cat. 5e UTP/STP or better 1000Base-TX Cat. 5e UTP/STP or better |
| PoE | Provide 8 port PoE power supply, each port maximum power 30W. |
| LED Status | Power, PoE, Link/Act |
| PoE Consumption | 70 Watts |
| VLAN | Port base VLAN ACCESS VLAN TRUNK VLAN 802.1Q tagged VLAN 4094 VLAN IDs available |
| IGMP Snooping | IGMP v1/v2/v3 Snooping Support 256 groups |
| MAC Address Administration | MAC address display/inquire Static MAC settings Dynamic MAC address administration MAC address filtering |
| Loop Detection | Support loop detection and Spanning tree STP, RSTP |
| Storm Control | Broadcast/Multicast/Unicast |
| Link Aggregation | Maximum 8 port per group, support 16 group LACP dynamic or static aggregation |
| Access Control | Based on Source MAC Address, Destination MAC Address, specify MAC Address Based on the IP, TCP, UDP, IGMP, Source IP, Destination IP, specify IP |
| Port Mirroring | - One-to-one - Many-to-one - By mirroring port transmission, receiving and sending |
| Port Speed Limit | Egress and ingress speed limit |
| DHCP Snooping | Prevent illegal DHCP server |
| PSE System Management | PSE/PoE Configuration |
| ARP Attack Prevention | To prevent the ARP request deception To prevent the ARP reply to cheat |
| SNMP | SNMP v2c; Conform to RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907 The MIB II; Conform to RFC1213 Ethernet MIB; Conform to RFC1643 The bridge MIB; Conform to RFC1493 |
| Equipment Management | Console Telnet The CLI interface WEB UI Ping Tracert Check the CPU and memory utilization System Settings Configuration Management System Upgrade System Diagnostics |
| Environment Temperature | Operate: 0 to 50°C Storage: -10 to 70°C |
| Environment Humidity | Operate:10 to 85% (RH non-condensing) Storage:10 to 90% (RH non-condensing) |
| Certifications | FCC and CE |
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
Review sent
Your review cannot be sent
แบรนด์: TP-Link
แบรนด์: IP-COM
แบรนด์: Cisco
แบรนด์: EnGenius
การเลือกใช้ POE Switch (Power Over Ethernet Switch)

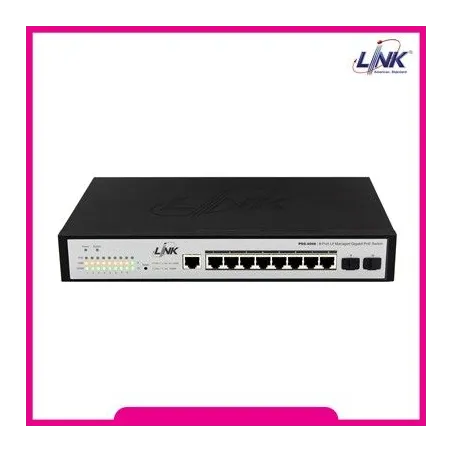

8-Port L2 Managed Gigabit PoE Switch (70w) จ่ายไฟตามมาตรฐาน 802.3af/at
