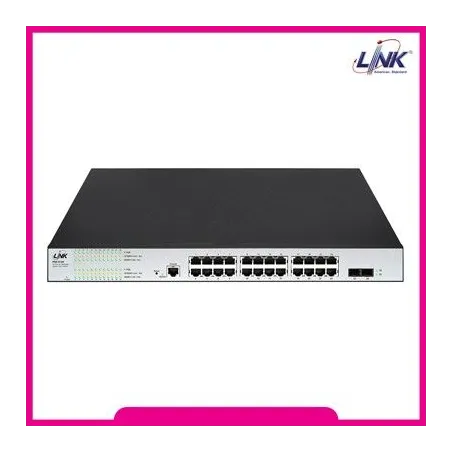

LINK PSG-5124 24 Port L2 Managed GIGABIT PoE SWITCH 400W
support IEEE802.3af/at จ่ายไฟสุงสุด 30 Watts ต่อ Port
Specifications
| Standard Compliance | IEEE 802.3 : 10Base-T (Ethernet) IEEE 802.3u : 100Base-TX (Fast Ethernet) IEEE 802.3ab : 1000Base-T (Gigabit Ethernet) IEEE 802.3z : 1000Base-SX/LX IEEE 802.3x : Flow Control (full-duplex flow control) IEEE 802.3af/at : (PoE/PoE+ Standard) IEEE 802.3ad : LACP aggregation IEEE 802.1d : Spanning tree protocol IEEE 802.1w : Rapid Spanning tree protocol IEEE 802.1Q : VLAN tagging IEEE 802.3az : Energy-Efficient Etherne |
| Ports | 24x10/100/1000Base-T, RJ45 port (with PoE and auto MDI/MDI-X) 2xGigabit SFP port |
| Switch Fabric (Backplane Bandwidth) | 52Gbps |
| Transmit Rate | 38.6Mpps |
| Flash Memory | 8MB |
| SDRAM | 128MB |
| Packet Buffer Memory | 256Kbits |
| Jumbo Frames | 10KBytes |
| MAC Address | 16K |
| Transmission Method | Store and Forward |
| LED Status | Power, System, PoE, Link/Act, 10/100M, 1000M |
| Power Requirements | 100-240 VAC, 50-60Hz |
| Power Consumption | 400 Watts |
| Certifications | FCC and CE |
| Network Management | Telnet CLI Web browser |
| VLAN | Port base VLAN ACCESS VLAN TRUNK VLAN 802.1Q tagged VLAN 4094 VLAN IDs available |
| IGMP Snooping | IGMP v1/v2/v3 Snooping Support 256 groups |
| MAC Address Administration | MAC address display/inquire Static MAC settings Dynamic MAC address administration MAC address filtering |
| Loop Detection | Support loop detection and Spanning tree STP, RSTP |
| Storm Control | Broadcast/Multicast/Unicast |
| Link Aggregation | Maximum 8 port per group, support 16 group LACP dynamic or static aggregation |
| Access Control | Based on Source MAC Address, Destination MAC Address, specify MAC Address Based on the IP, TCP, UDP, IGMP, Source IP, Destination IP, specify IP |
| Port Mirroring | - One-to-one - Many-to-one - By mirroring port transmission, receiving and sending |
| Port Speed Limit | Egress and ingress speed limit |
| DHCP Snooping | Prevent illegal DHCP server |
| PSE System Management | PSE/PoE Configuration |
| ARP Attack Prevention | To prevent the ARP request deception To prevent the ARP reply to cheat |
| SNMP | SNMP v2c; Conform to RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907 The MIB II; Conform to RFC1213 Ethernet MIB; Conform to RFC1643 The bridge MIB; Conform to RFC1493 |
| Equipment Management | Console Telnet The CLI interface WEB UI Ping Tracert Check the CPU and memory utilization System Settings Configuration Management System Upgrade System Diagnostics |
