Product Specification
|
|
Overview
|

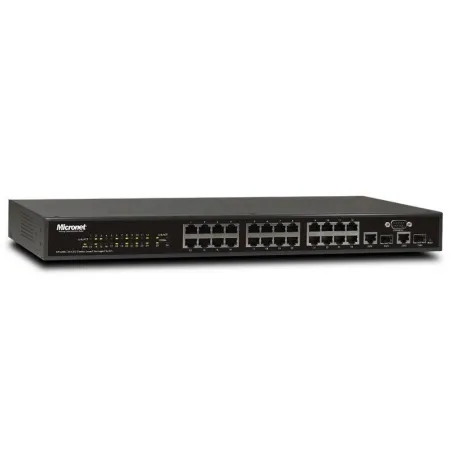

MicroNet SP1658C อุปกรณ์ Layer 2 Managed Switch ขนาด 24 Port ความเร็ว 10/100Mbps และ 2 Port ความเร็ว 10/100/1000Mbps พร้อม 2 Port mini-GBIC
|
|
Standard
|
IEEE802.3, 10Base-T
IEEE802.3u, 100Base-TX
IEEE802.3u, 100Base-FX
IEEE802.3ab 1000Base-T
|
|
Interface
|
24 10/100M, RJ-45 ports
2 10/100/1000M, RJ-45 ports
2 mini-GBIC Slot
|
|
Hardware
|
384K Buffer Memory
8K Mac Address Table
|
|
Layer 2 Feature
|
Auto Negotiation
Auto MDI/MDI-X
IEEE802.3x, Flow Control
256 802.1Q VLANs
Tag-based/Port-based VLAN
Broadcast/Multicast/Unicast Storm Control
GVRP
Management VLAN
IEEE802.3ad LACP (8 Port/14 Group)
|
|
QoS
|
IEEE802.1p, VLAN Information Based CoS
Priority Queue(Strict Priority)
IP ToS/IP Precedence Based CoS
Port Based CoS/DSCP Based CoS
QoS Remarking
|
|
Security
|
IEEE802.1x 24 Dynamic MAC Address Based Port Security
254 ACL(Access Control List) Entries
Mac Address Filtering
IEEE802.1d/w/s Spanning Tree protocol
RSTP Root Guard
Management IP List
SSH/SSL
Dynamic ARP Inspection and Port Self-Loop Detection
|
|
Management
|
Console
Telnet
Web-based Management
BOOTP/DHCP Client/DHCP Relay
Cable Diagnostics
RADIUS
Firmware Upgradable
|
|
SNMP & MIBs
|
SNMPv1
SNMPv2c
SNMPv3
RMON
|
|
Environment
|
Temperature: Operating: 0~40oC, Storage: -40~70oC
Humidity: Operating: 20~85% (Non-Condensing)
|
|
Power
|
100-240V, 50-60Hz
|
|
Dimension
|
430 x 178 x 44 mm
|
|
|
